Tektronix 2212 Service Manual

Typical Characteristics
1 - 28

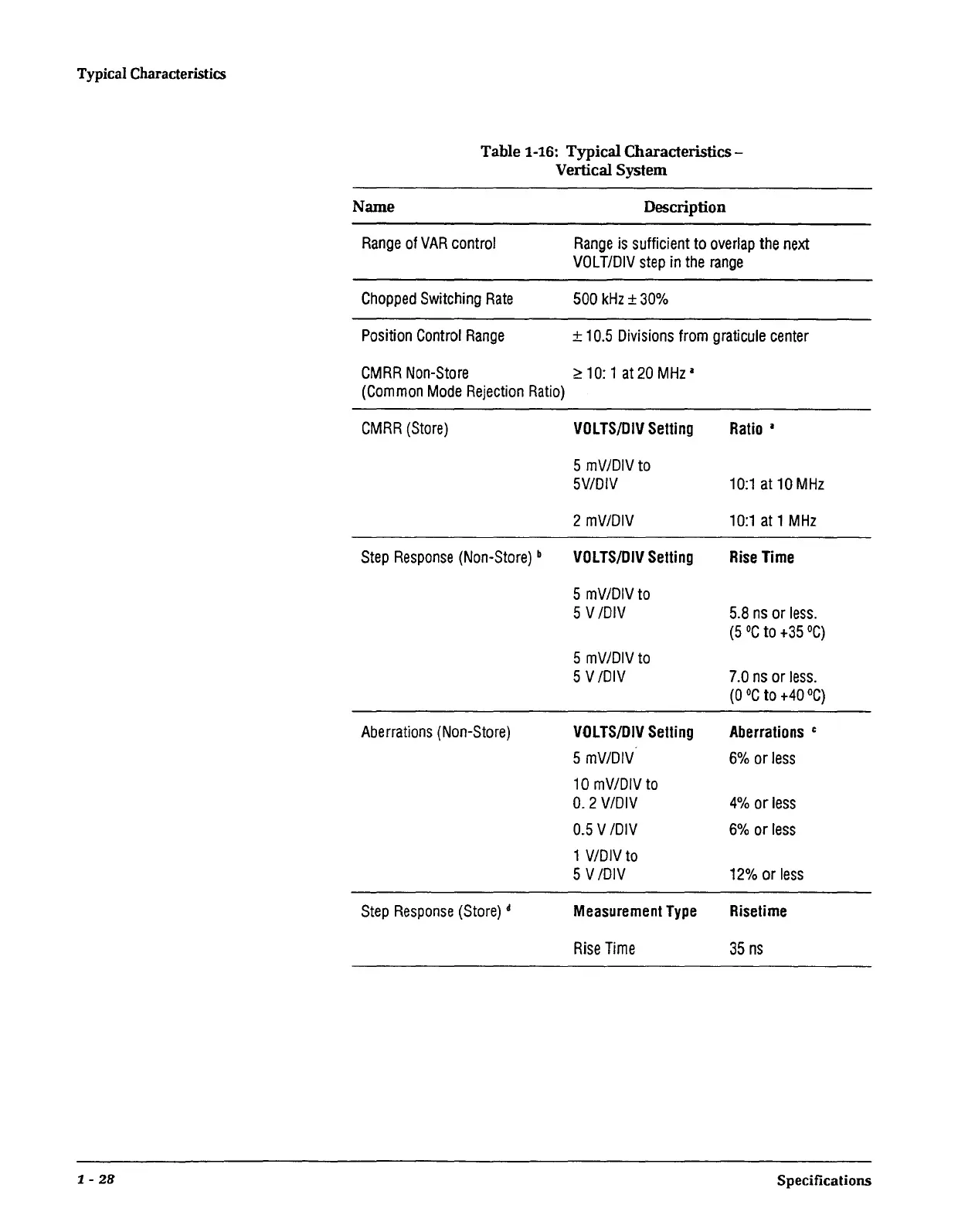

Table 1-16: Typical Characteristics-
Vertical System
Name
Range of VAR control
Chopped Switching Rate
Position Control Range
Description
Range is sufficient to overlap the next
VOLT/DIV step in the range
500 kHz±30%
± 10.5 Divisions from graticule center
CMRR Non-Store ~ 10: 1 at 20 MHz a
(Common Mode Rejection Ratio)
CMRR (Store)
VOLTS/DIV Setting
Ratio a
5 mV/DIV to
5V/DIV 10:1 at 10 MHz
2 mV/DIV 10:1 at1 MHz
Step Response (Non-Store) b
VOLTS/DIV Setting Rise Time
5 mV/DIVto
5 V /DIV
5.8 ns or less.
(5 °C to +35 °C)
5 mV/DIV to
5 V /DIV 7.0 ns or less.
(0 °c to +40 °C)
Aberrations (Non-Store) VOLTS/DIV Setting
Aberrations c
5 mV/DIV
6% or less
10 mV/DIV to
0. 2 V/DIV 4% or less
0.5 V /DIV
6% or less
1 V/DIV to
5 V /DIV
12% or less
Step Response (Store) d Measurement Type
Risetime
Rise Time 35 ns
