Analyzing waveforms Check search results

Check search results

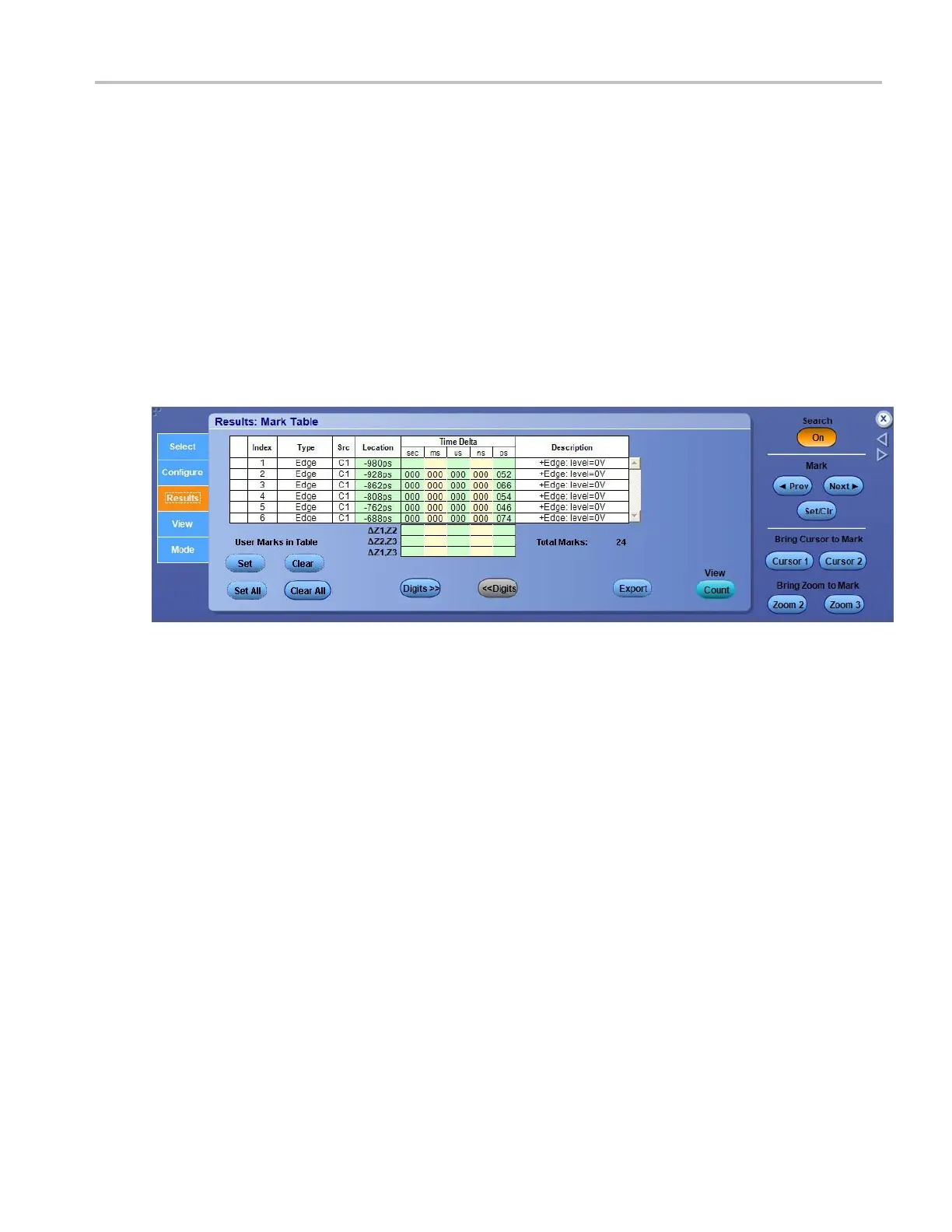

From the Analyze menu, select Search; then open the Results tab.

Overview

The table in this window displays timing information for all marks placed during a search.

To use

For inform

ation on the controls, click the buttons.

Behavior

The Location and Time Delta columns list the search resultsforeachmarkplacedbytheinstrumentforthe

search Type indicated. You can also use the buttons to edit or change the format of the table and save

results to a ﬁ le.

DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series 309
