Vertical Setups Probe Setup Control Window: Probe Deskew

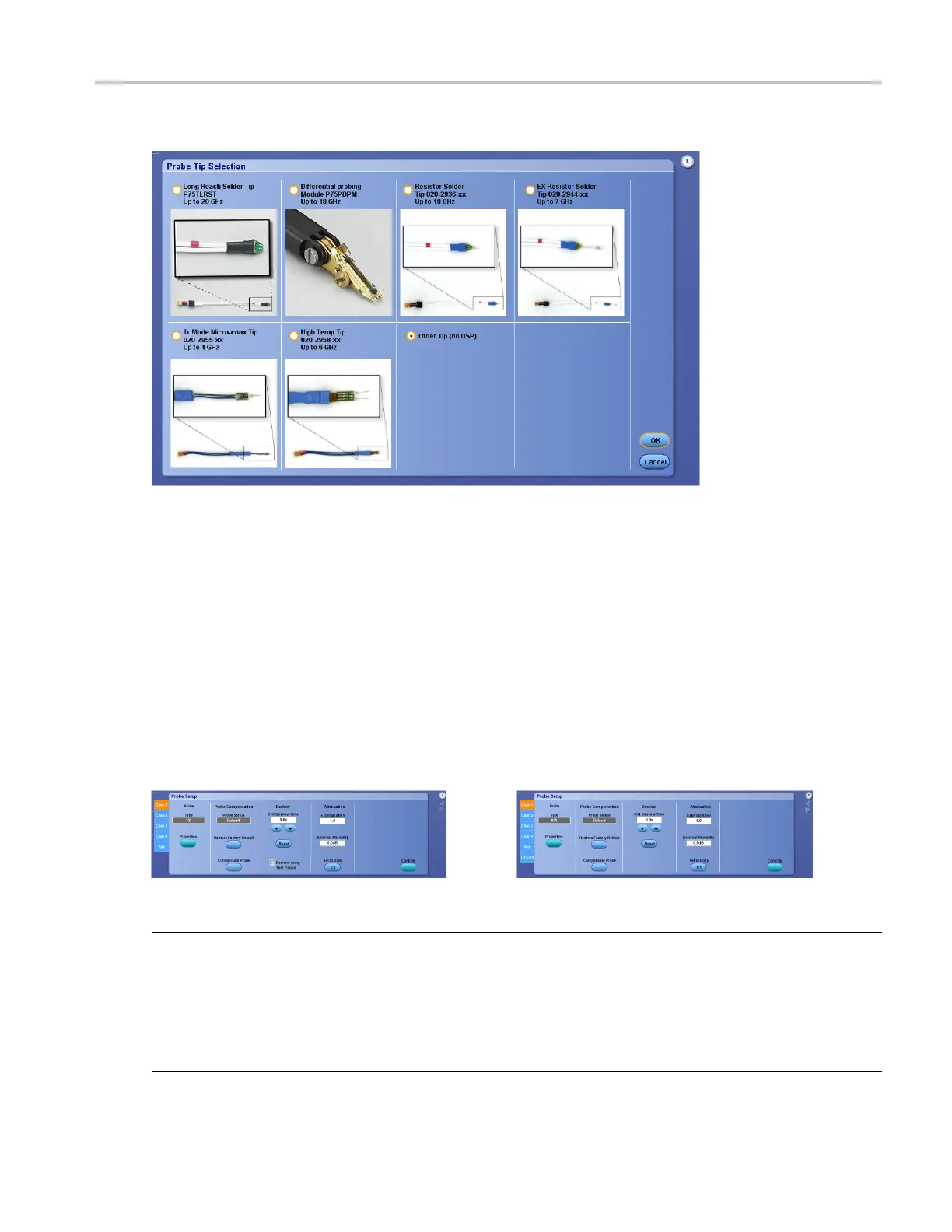

Here is an example of Probe Tip for Te ktronix Trimode probe.
Probe Setup Control Window: Probe Deskew
From the Vertical menu, select Deskew.
Overview
Use the Probe Setup control window to compensate for propagation delays of different length probes
connected to the vertical input channels.
Click for <4 GHz instruments: Click for ≥4 GHz instruments:
xxx
NOTE. To compensate for timing differences between voltage and current probes, order the following
Probe Calibration and Deskew Fixtures:
Tektronix part number 0 67-0405-XX (for <4 GHz oscilloscopes).
Tektronix part number 067-1586-XX (for ≥4 GHz oscilloscopes).
Tektronix part number 067-2083-XX (for MSO Series instruments) to deskew the logic probe trigger path.
DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series 505
