Utilities Install an option

Install an option

From the Utilities m enu, select Option Installation.

Overview

Use Option Installation to enable upgrades that you have purchased for your instrument from Tektronix. For

the most cur

rent list of upgrades, go to www.tektronix.com

or contact your local Tektronix representative.

To use

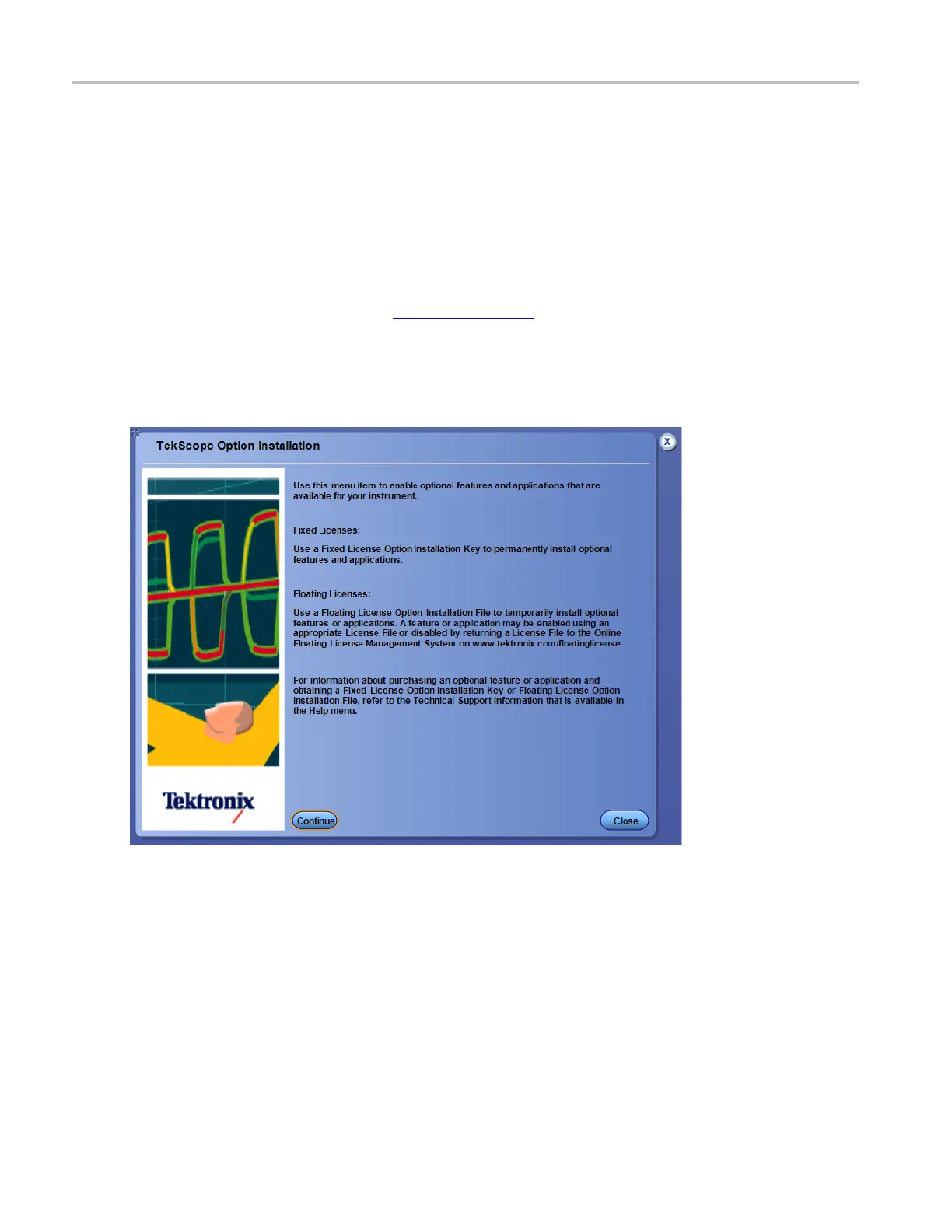

1. Click the Continue button in the initial dialog box.

2. Use

either ﬂoating license or ﬁxed license and follow the on-screen instructions to install the options.

562 DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series
