Analyzing waveforms Set up USB search parameters

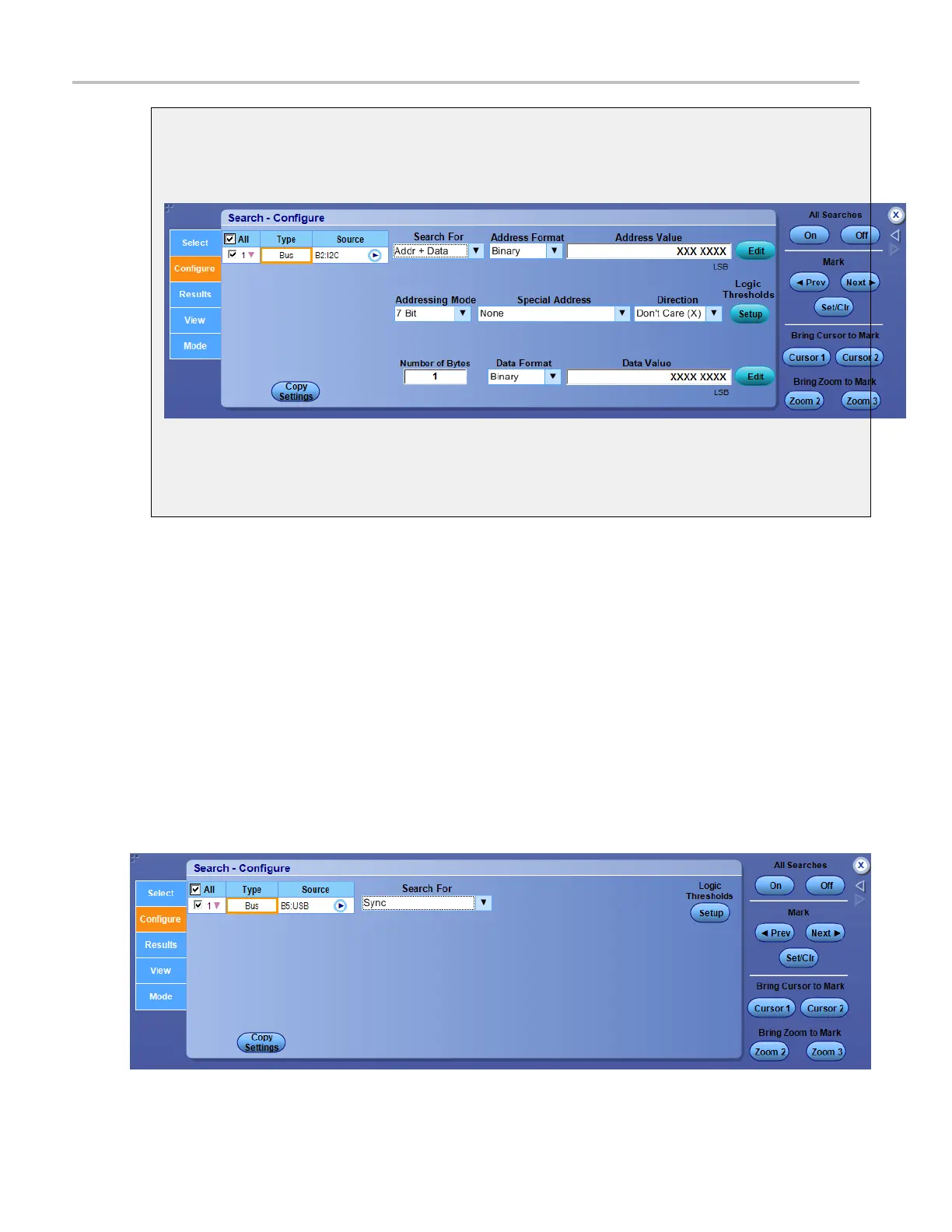

Search for address and data
The address and data mode options available in Search For Address are Address Format, Address
Value, Addressing Mode, Special Address, Direction, Number of Bytes, Data Format, and Data Value.
Select the Address Format, Addressing Mode, special Address, Direction, and Data Format from
the drop-down lists. Click Edit to enter the address and data values. Click Setup to adjust the logic
thresholds.
Set up USB search parameters
After setting up an USB bus, go to the Analyze menu, select Searc
h, and then select the Bus trigger type;
then open the Configure tab.
Overview
Use the controls to set up the USB Bus parameters.
To use
For information on the controls, click the buttons.
