Trigger setups Trigger After Time (Horizontal Delay on)

Trigger After Time (Horizontal Delay on)

From the Trig menu, select A - B Trigger Sequence.

Overview

Use the controls in this window to deﬁne the parameters for the A ->B Sequence trigger with Horizontal

Delay on.

NOTE. The A->B Sequence trigger is not available with MultiScope Triggers.

For infor

mation on the controls, click the buttons.

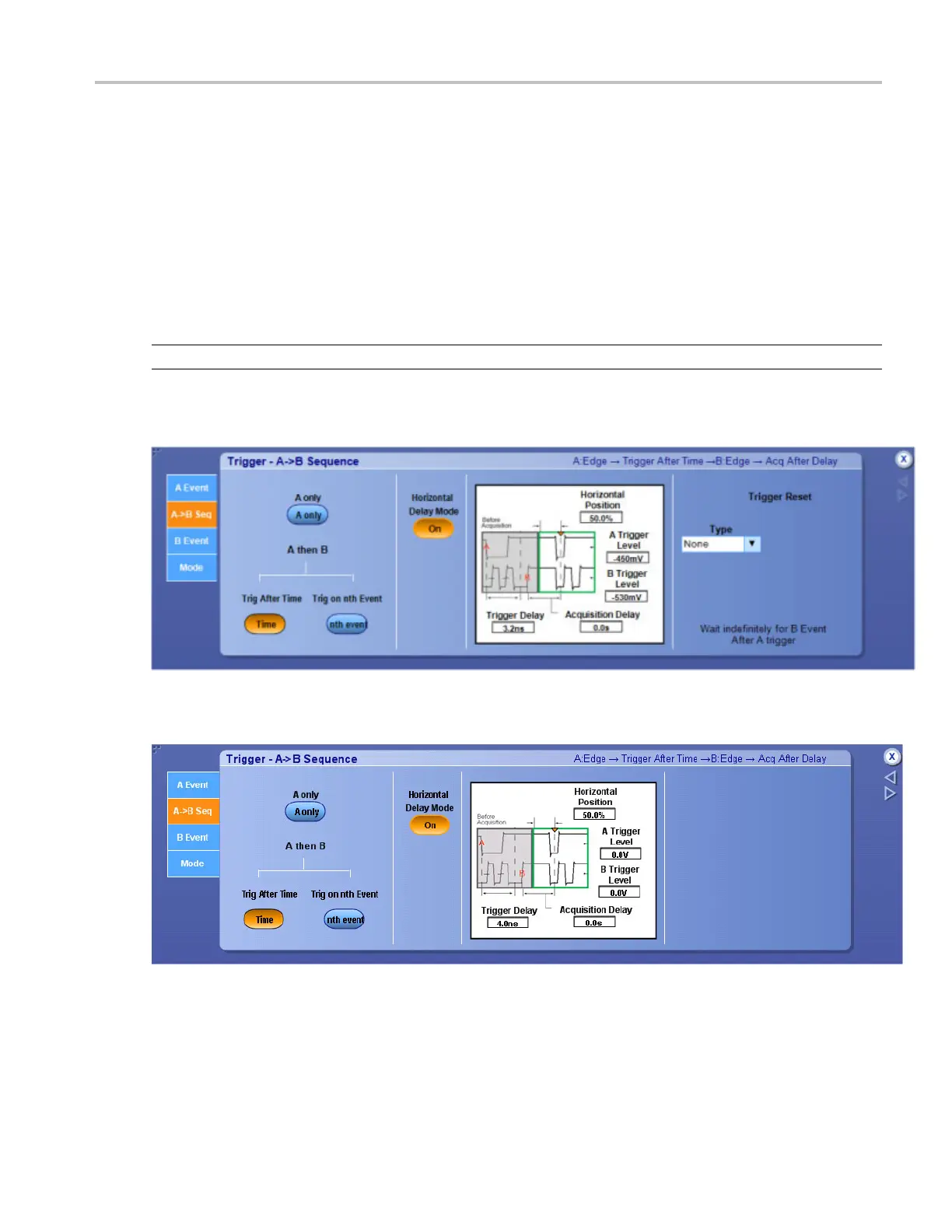

The following screen appears on MSO/DPO5000 Series instruments:

DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series 449
