Tektronix DPO70000C/DX Series User Manual

Analyzing waveforms View the search counts results

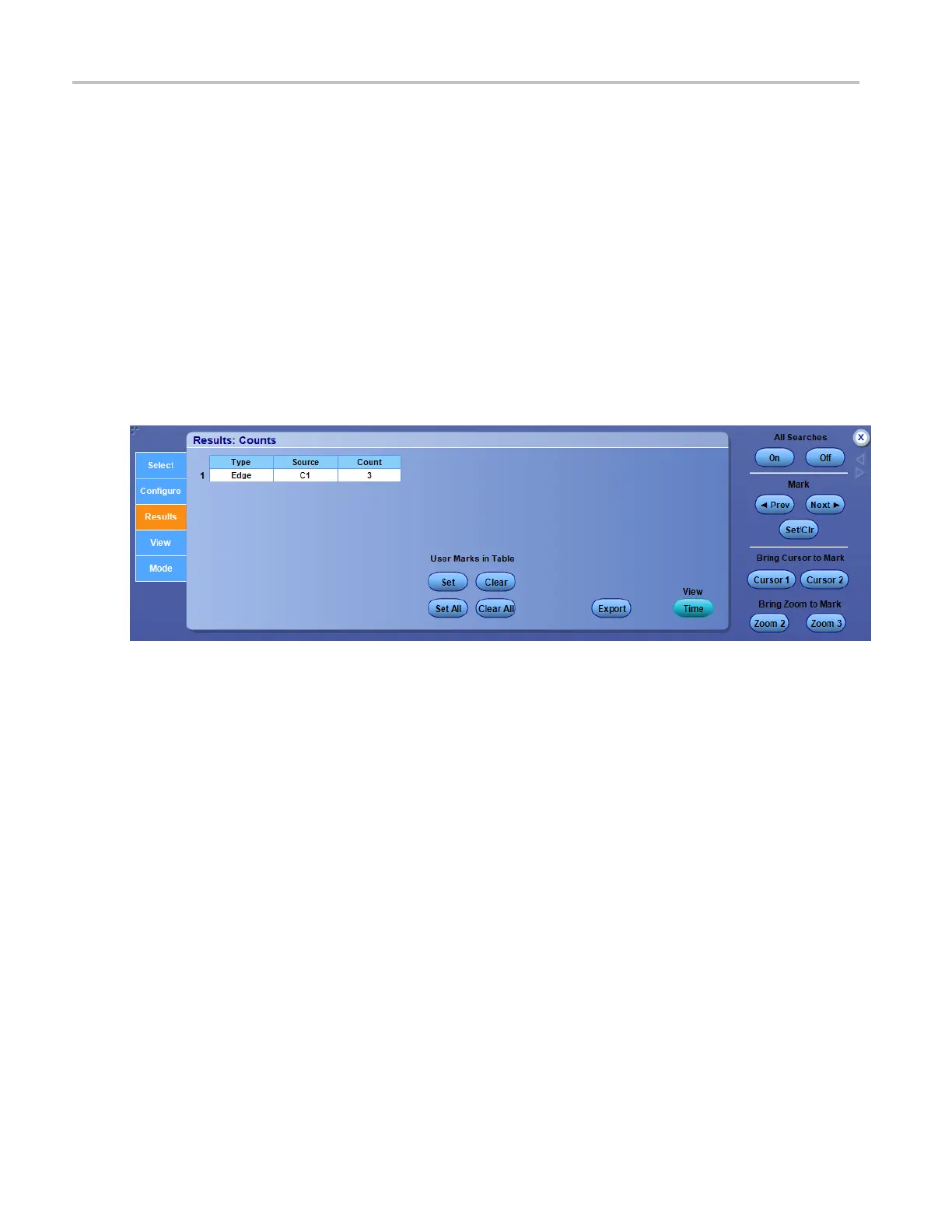

View the search counts results
From the Analyze menu, select Se arch; then o pen the Results tab and click the Count button.
Overview
Use the controls in this window to view the number o f times the search criteria was met and the instrument
placed a mar
k on the waveform.
To use
For information on the controls, click the buttons.
Behavior
The table in this window displays count results for automated search and mark operations. The Count
column displays the number of times the search conditions were met for a specificTypeofsearch.
You can also use the buttons to edit the Results Mark Table and save results to a file.
View search marks
From the Analyze menu, select Search; then open the View tab.
Overview
Use the controls in this window to display marks.
310 DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series
