Analyzing waveforms Set up I2C search parameters

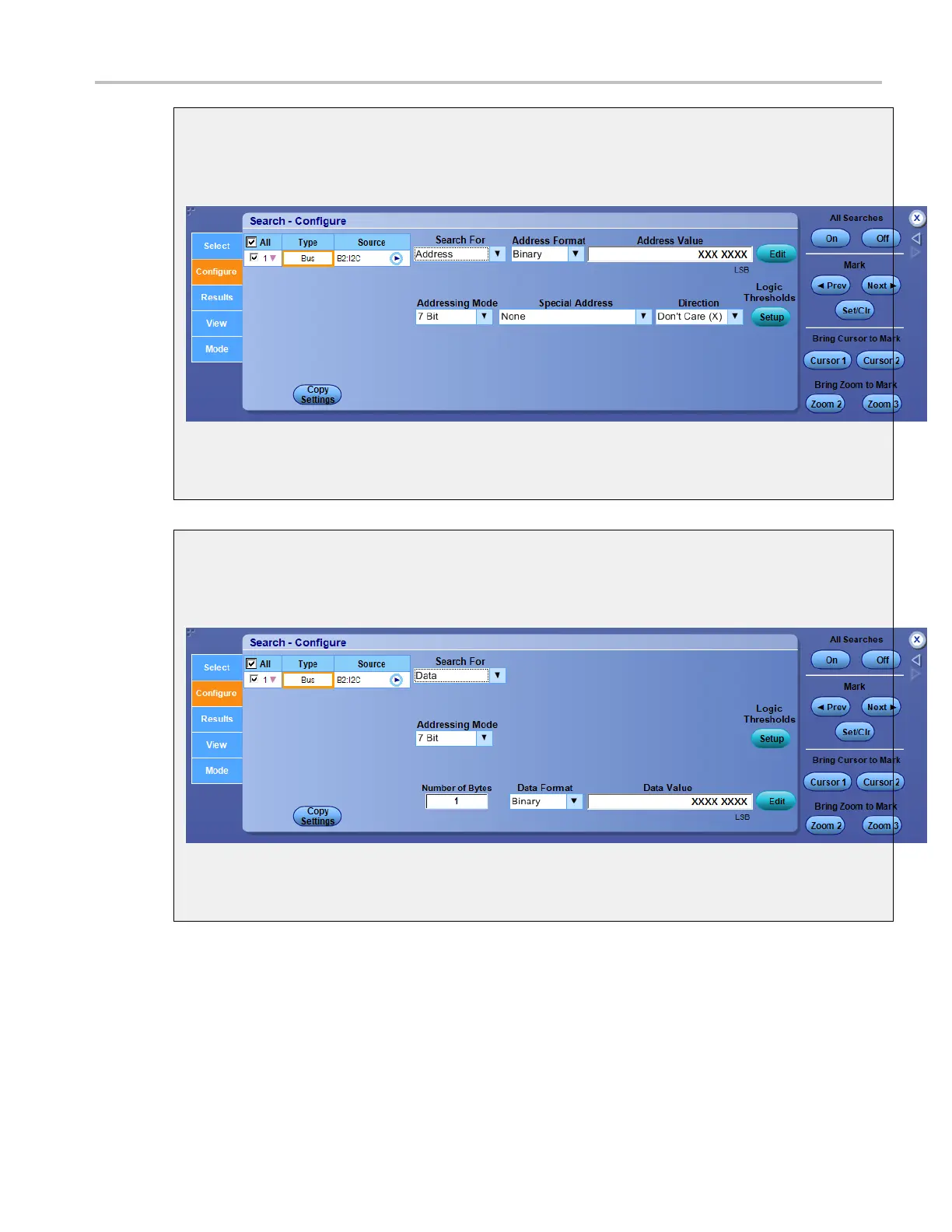

Search for address
The address mode options available in Search For Address are Address Format, Address Value,
Addressing Mo
de, Special A ddress, and Direction.
Select the Address Format, Addressing Mode, special Address, and Direction from the drop-down
lists. Click Edit to enter the address value. Click Setup to adjust the logic thresholds.
Search for data
The data type options available in Search For Data are Addressing Mode, Number of Bytes, Data
Forma
t, and Data Value.
Select the Addressing Mode and Data Format from the drop-down lists. Click Edit to enter the data
value. Click Setup to adjust the logic thresholds.
