Tektronix DPO70000C/DX Series User Manual

Analyzing waveforms Set up FLEXRAY s earch parameters

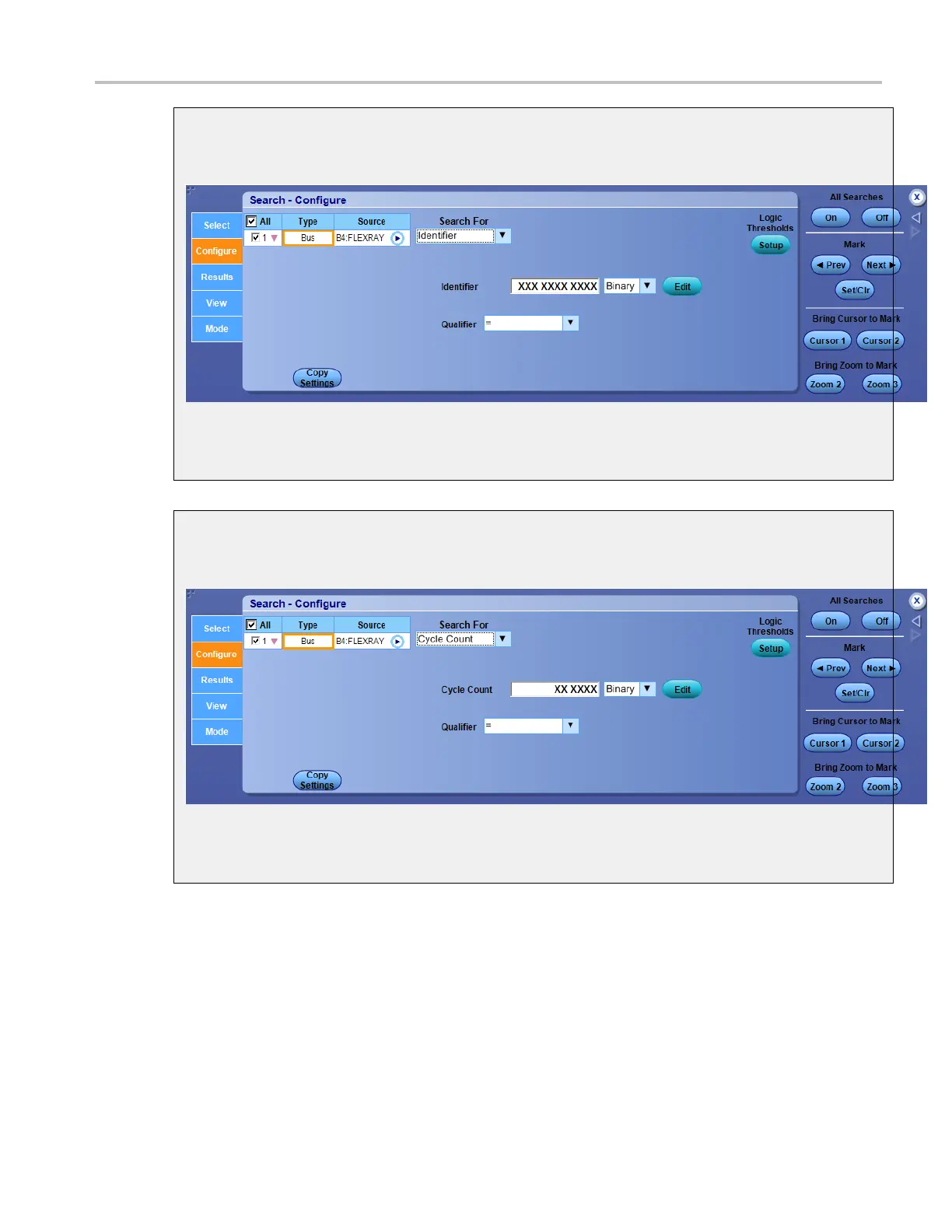

Search for identifier
The data type options available in Search For Identifier are Identifier and Qualifier.
Select the Identifier from the drop-down list. Click Edit to enter the value. Click Logic Thresholds to
adjust the logic thresholds.
Search for cycle cou nt
The data type options available in Search For Cycle Count are Cycle Count a nd Qualifier.
Select the Quallifier from the drop-down list. Click Edit to enter the Cycle Count value. Click
Logic Thresholds to adjust the logic thresholds.
DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series 355
