Analyzing waveforms View the protocol decode event table

Resize the docke d event table

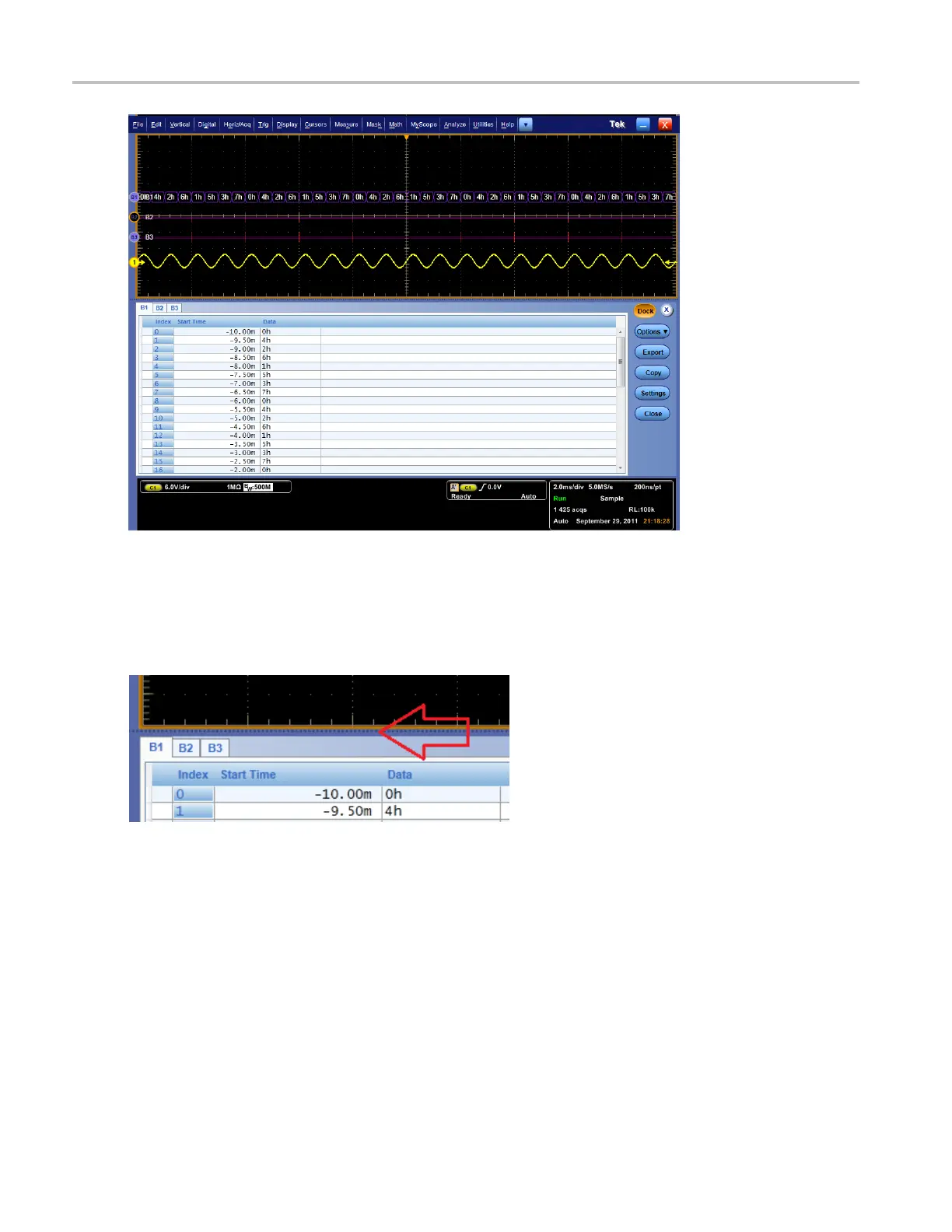

To resize the docked table, click the splitter above the docked window and drag it to the size you want the

table.

Change the event table column layout

Press the Options button to save a table layout, recall a table layout, or customize columns.
