Trigger setups Set up an Ethernet bus trigger

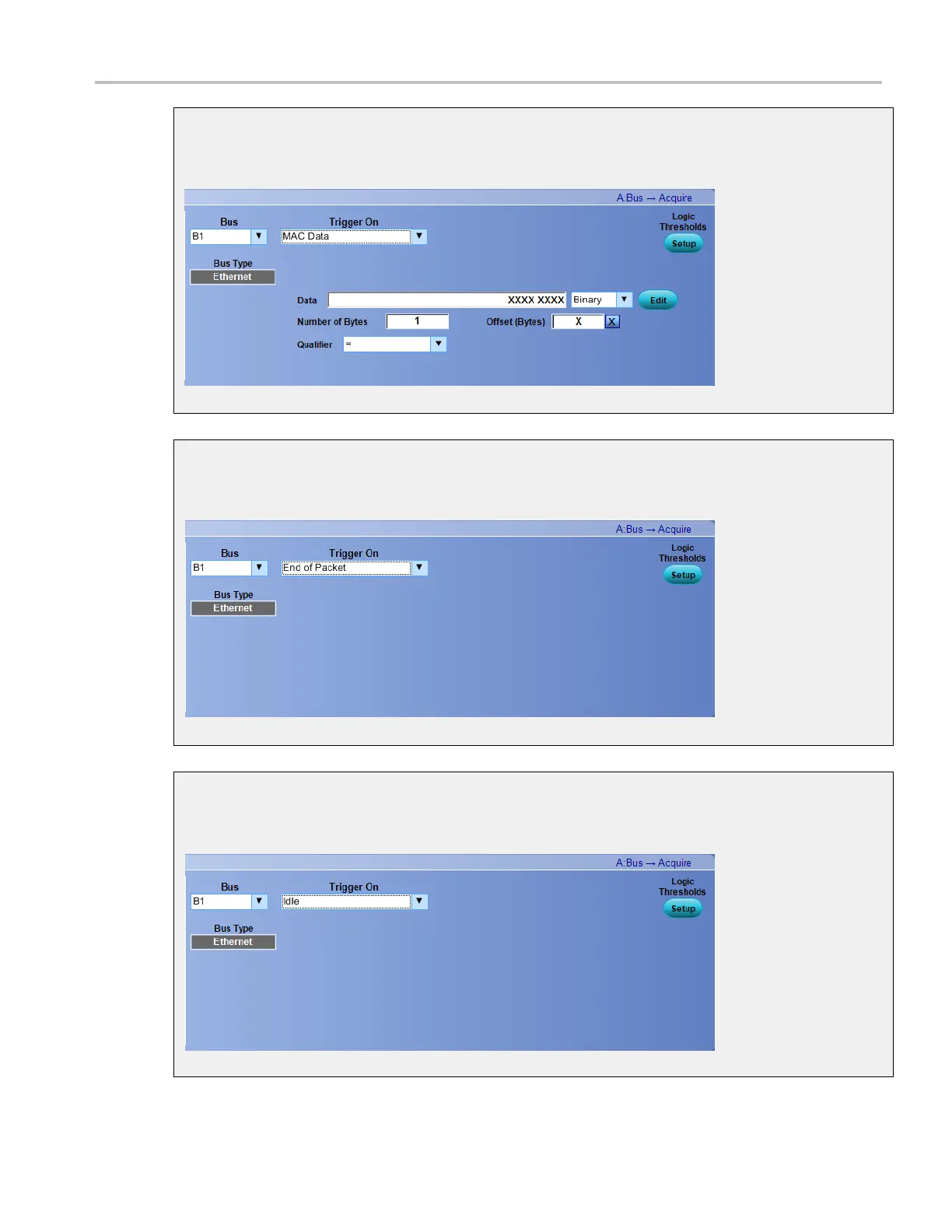

Trigger on MAC Data

For Trigger On MAC Data you need to specify the Data, Number of Bytes, Offset, and the Q ualiﬁer.

Trigger on End of Packet

Select End of Packet to trigger on an Ethernet End of Packet.

Trigger on Idle

Select Idle to trigger on an Ethernet idle character.

DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series 419
