Tektronix DPO70000C/DX Series User Manual

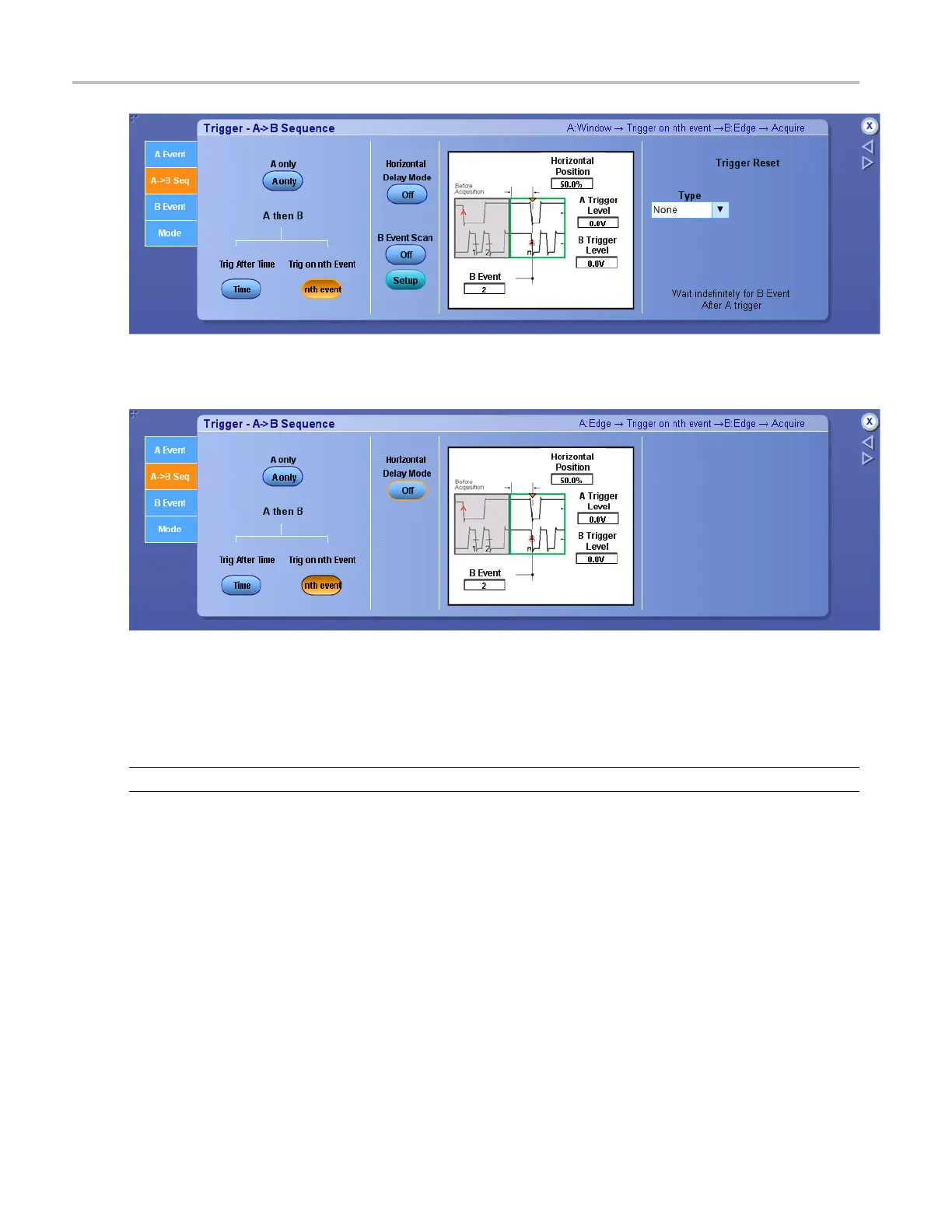

Trigger setups Trigger on nth Event (Horizontal Delay off)
The following screen appears on MSO/DPO5000 Series instruments:
To use
1. Set up the A Event and B Events from their individual tabs.
NOTE. On MSO/DPO5000 Series instruments, trigger on B events is available only for Edge trigger.
2. Select the A–>B Seq tab; then click Trig on nth Event.
3. SettheHorizontalDelayModebuttontoOff.
4. Select the number of B events with the Trig Event control.
5. Adjust the Horiz Position and B Trig Level controls as necessary.
Behavior
Use this sequence to trigger the instrument on the nth occurrence of the B event after the A event.
454 DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series
