Utilities Instrument Diagnostics Control Window

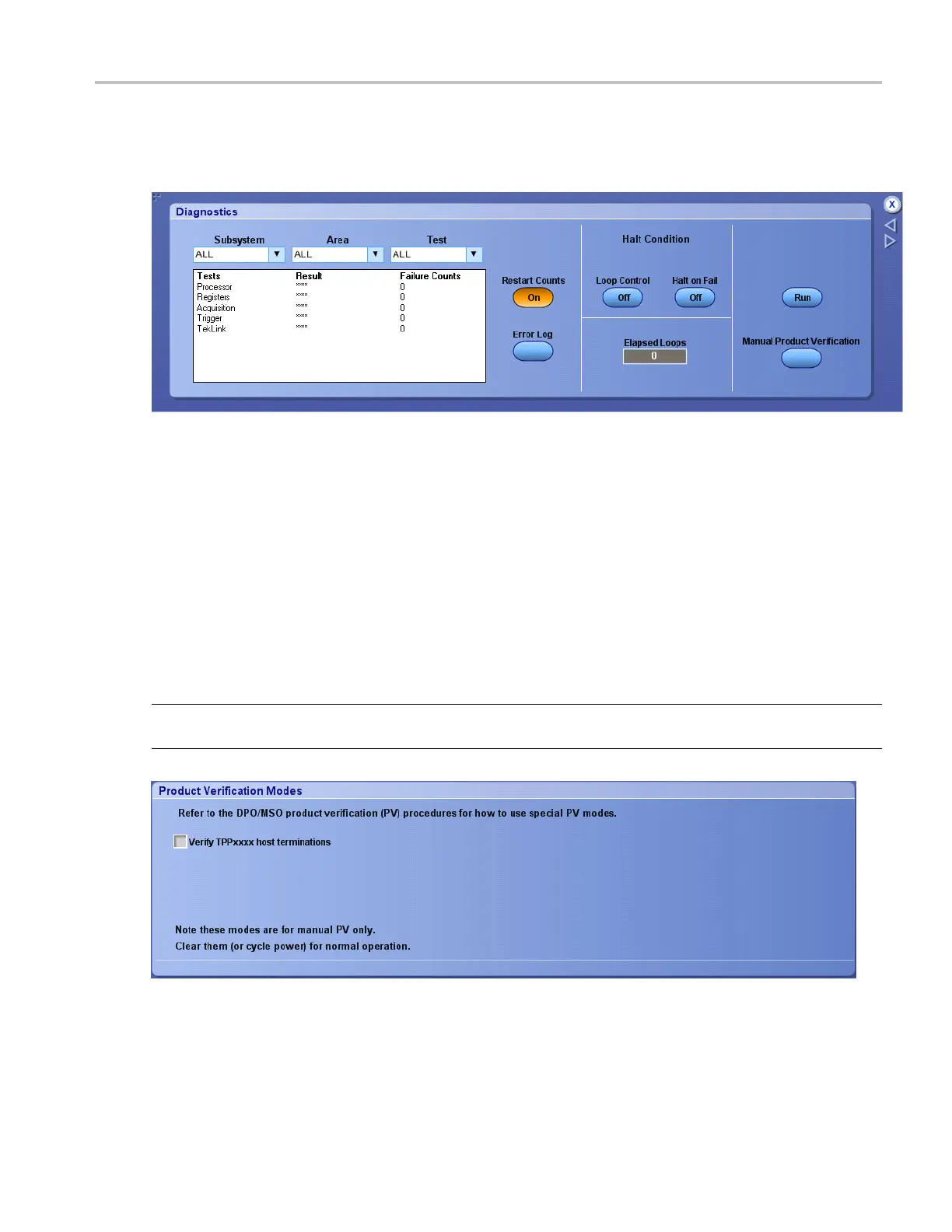

The following screen appears on MSO/DPO5000 Series instruments:
To use
1. Use the drop-down list boxes to identify the Subsystem, Area, and Test you want to run.
2. Use the Halt Condition controls to enable looping on the selected test(s) or to halt looping as soon as
a failure occurs.
3. Click the Run button to initiate the tests.
The Error Log button displays the number of entries in the error log if the number is greater than 0, else
nothing is displayed. The Diagnostics error Log window is available only when the power up diagnostic
setting is set to Factory.
NOTE. The Manual Product Verification option to know how to use special PV modes is available only
on MSO/DPO5000 Series instruments.
You can run all tests or specific tests using the options on the Subsystem, Area, a nd Text drop-down
lists. The Diagnostic Status table lists each diagnostic, the results of the test, and the number of failures
that occurred.
DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series 551
