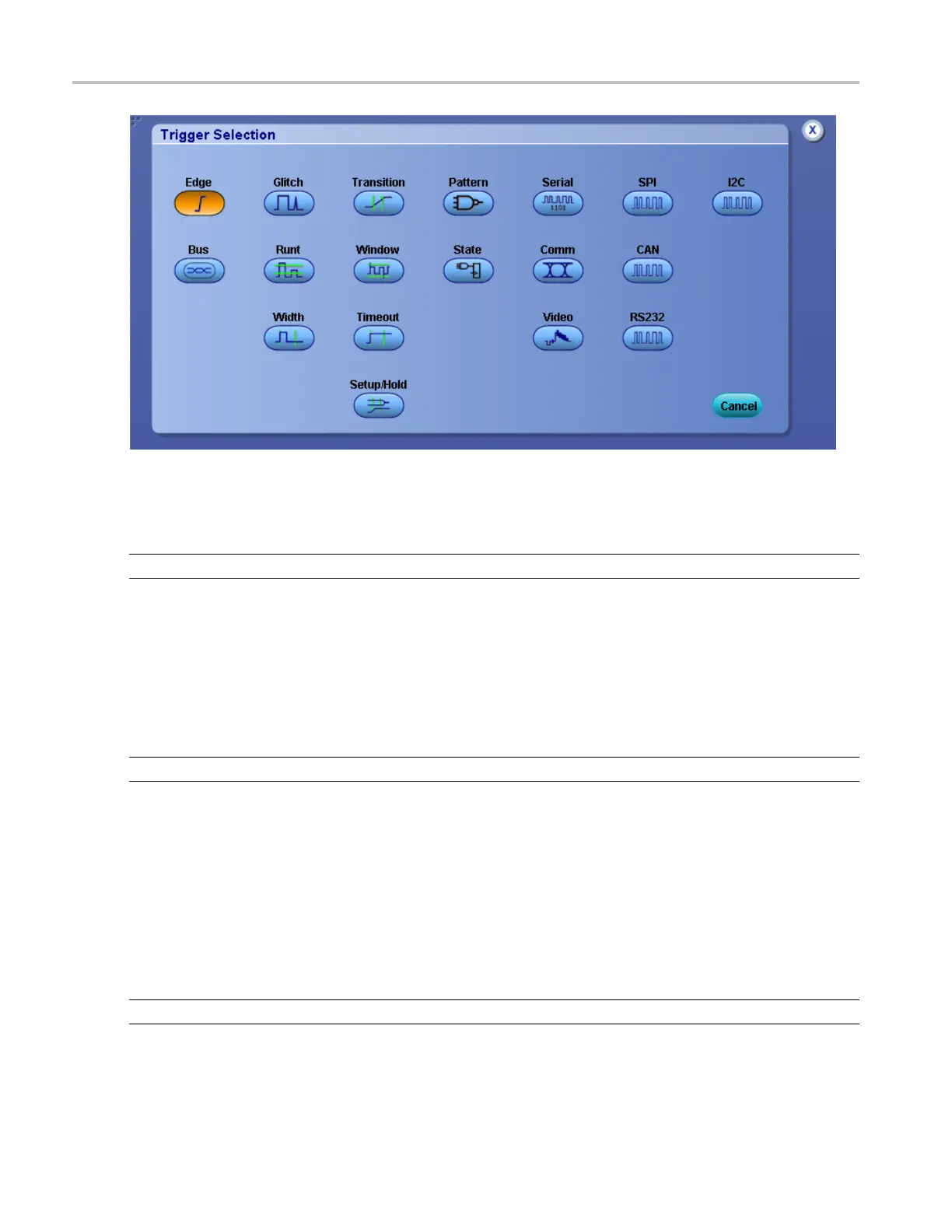

Oscilloscope Reference Trigger types
Pulse trigger
NOTE. Pulse trigger on B event is not available on MSO/DPO5000 Series instruments.
These are special-purpose triggers that are primarily used with digital signals. The following types of
pulse triggers are available: Glitch, Runt, Window, Width, Transition, and Timeout. Pulse triggers are
available on the main and B event triggers only.
Logic
trigger
NOTE. Logic trigger on B event is not available on MSO/DPO5000 Series instruments.
The
se are special-purpose triggers that are primarily used with digital logic signals. Two o f the types,
Pattern and State, trigger the instrument based on the Boolean operator that you select for the trigger
sources. A third type, Setup and Hold, triggers when data in one trigger source changes state within
the s etup and hold times that you specify relative to a clock in another trigger source. Logic triggers
are available on the main and B event triggers.
C
ommunication trigg er
NOTE. Communication trigger is not available on MSO/DPO5000 Series instruments.
696 DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series
