6 Using the product
0970 4020 en 01 109
Designation Explanation
Division Manual Specification that the division of the axis
should be performed manually.
Grid [<], [>] (if
automatic division is
activated)
Decrease or increase the division of the
axis by clicking on [<] or [>].
Interval (if manual
division is activated)
Manual entry of the grid.
Pos: 146 /TD/Produ kt verwenden/testo Sa veris/05a-3 Achsei nstellungen/07 Zeitac hse @ 0\mod_11939995441 99_79.doc @ 5704

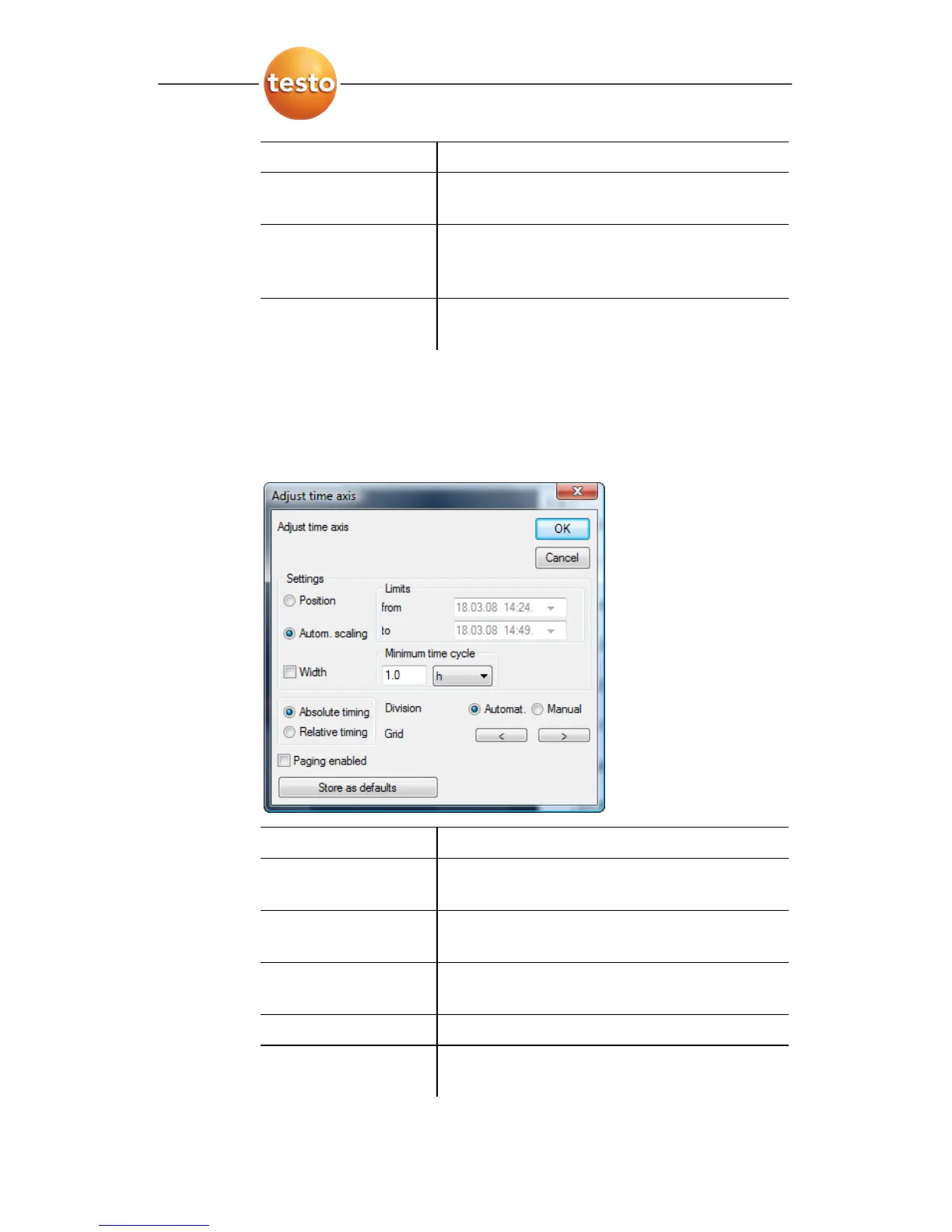

Settings for the time axis
> With the right mouse button, click on the time axis in the
diagram.
- The Adjust time axis dialogue is shown.
Designation Explanation
[OK] Applies the settings until other data are
called up. The dialogue is closed.
[Cancel] Closes the dialogue without applying any
changes.
Position Shows a freely-definable extract of the
diagram.
Autom. scaling...
Shows the entire diagram in the window.
Extract Shows a fixed, defined extract that can be
moved over the time axis.
