TESTO Saveris - Connecting Ethernet Probe with Power Supply (Mains Unit).64

5 First steps
64 0970 4020 en 01 testo AG
4. Place the housing cover on the probe and screw it down.
You can connect the probe to the network via a network
hub or directly at the Saveris base via the Ethernet jack.
Pos: 76 /TD/Erst e Schritte/testo Saver is/Hardware erwei tern/03 Ethernet-Fühler einbinden/01c Strom versorgung @ 1\mod_120 3423817781_79.doc @ 8270
5.12.2.2. Connecting Ethernet probe with power supply (mains unit)
The connection for the power supply via 24 V AC/DC
plug-in/screw terminal is performed as with the Saveris
router; see Connecting router with power supply
(AC/DC), page 54.

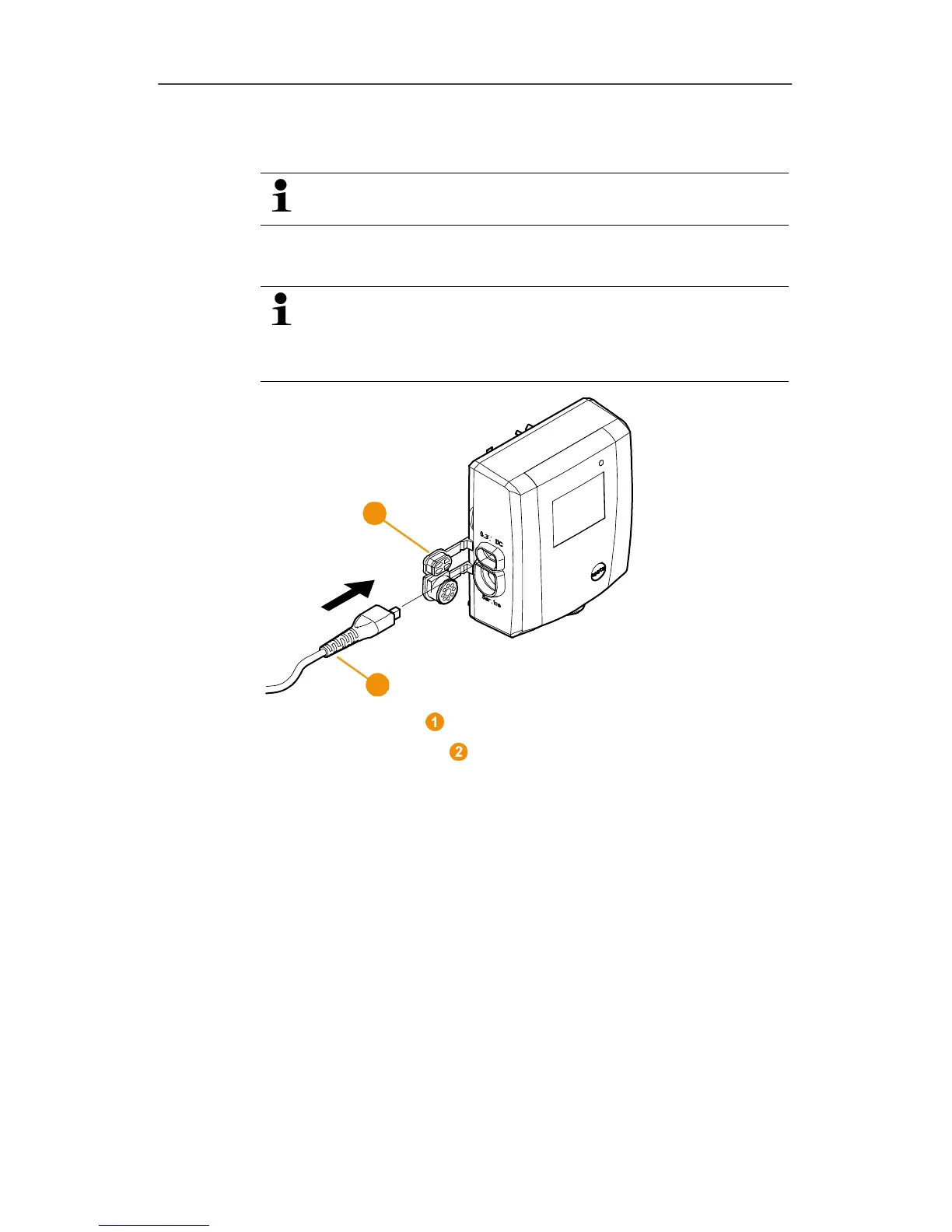

1. Open the cover for the power supply.
2. Insert mains cable .
3. Insert mains plug into a socket.
1
2
