5 First steps
36 0970 4020 en 01 testo AG
Pos: 60 /TD/Erst e Schritte/testo Saver is/02b-1 Stromver sorgung über AC/DC verbinde n @ 0\mod_1191328406187_7 9.doc @ 5402
5.6.2. Power supply via plug-in/screw connection
(optional)
Pos: 61 /TD/Erste Sc hritte/testo Saveris/02b- 2 SBE Stromversorgung über AC /DC verbinden @ 1\mod_1202124 389613_79.doc @ 8067
Pos: 62 /TD/Erst e Schritte/testo Saver is/02b-3 Stromver sorgung über AC/DC verbinde n @ 1\mod_1202124473316_7 9.doc @ 8089

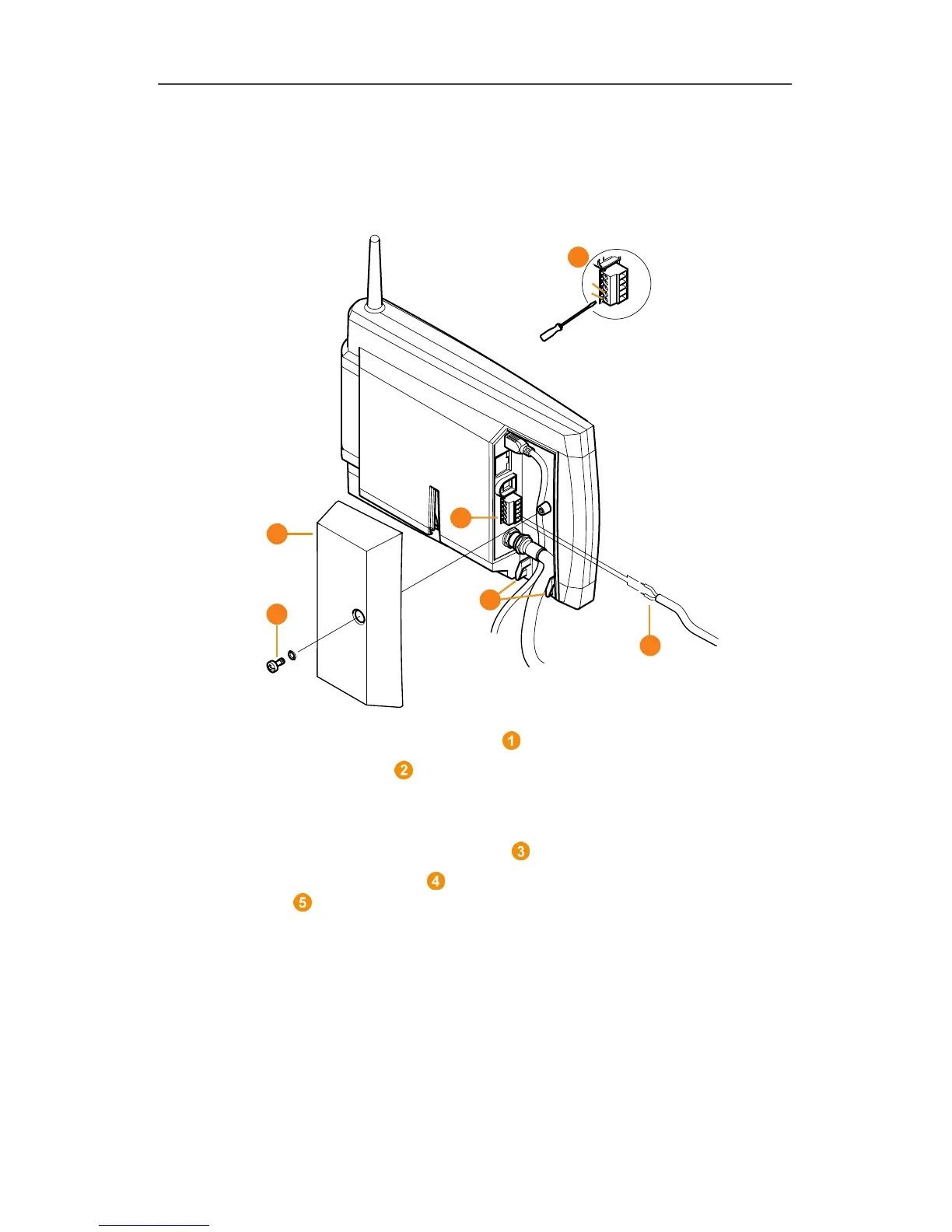

1. Loosen clamping screws no. 1 and no. 2.
2. Insert cable in the terminals as shown.
3. Tighten clamping screws.
4. Ensure that cabling cannot be pulled out using a cable tie at
the eyelets for strain relief .
5. Place the cover on the Saveris base and screw it down
.
- The Saveris base automatically switches on after selecting
the language at the base and is ready for operation.
1
2
2
1
3
4
5
1
