mmWaveICBoost and Antenna Module
2.8.2.4 Switches and LEDs
2.8.2.4.1 Switches

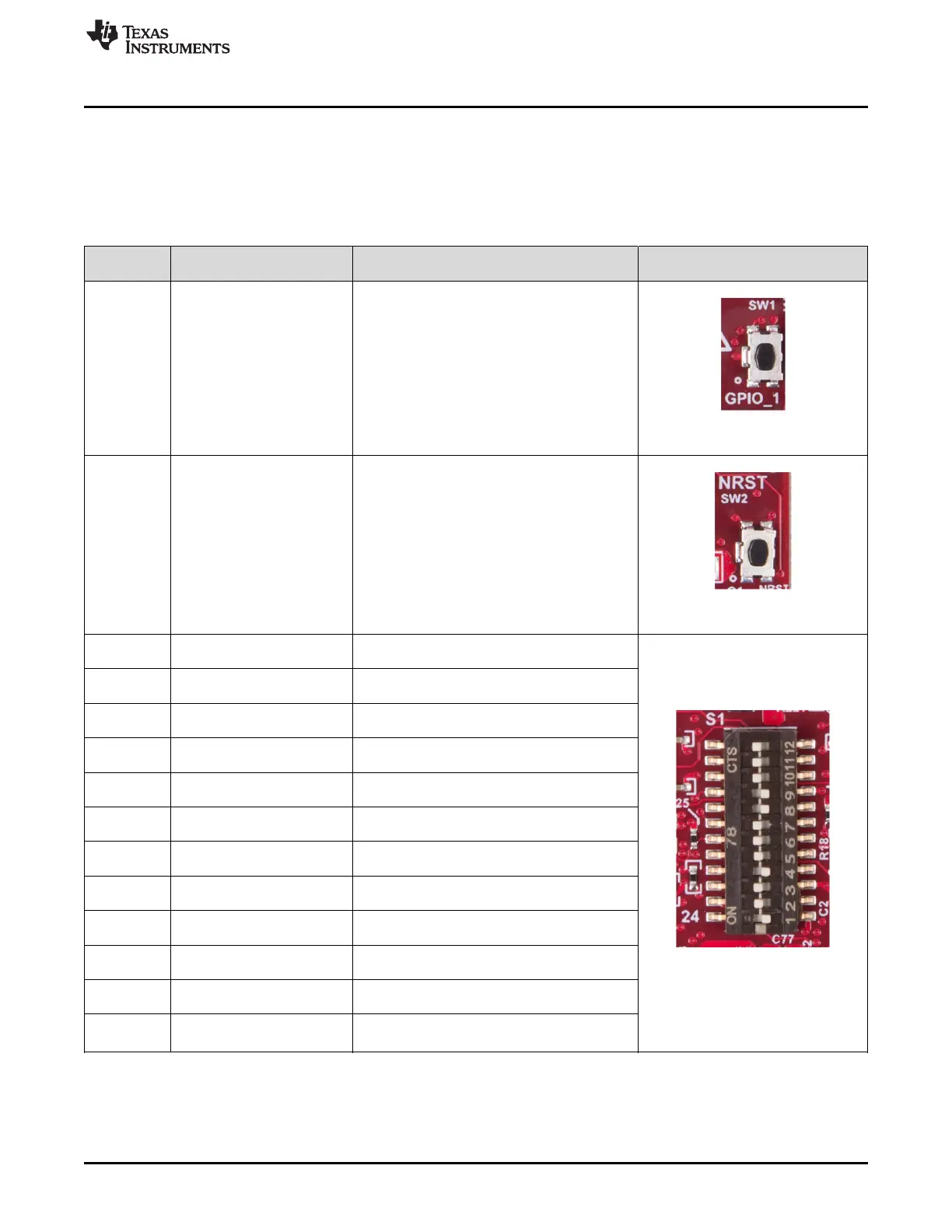

Table 14 shows the list of push buttons and usage.
Table 14. Switches Information
Reference
Designator Usage Comments Image
SW1 GPIO_1 When pushed, the GPIO_1 is pulled to Vcc.
Figure 26. SW1
SW2 RESET
This is used to RESET the mmWave Sensor
device. This signal is also output on the 20-pin,
60-pin connectors and FTDI interfaces so an
external processor can control the mmWave
Sensor device. The onboard XDS110 can also
control this reset.
Figure 27. SW2
S1.1 CAN/SPI selection
OFF : SPI-1(default)
ON : CAN
Figure 28. S1 Switch
S1.2 Header(J16) and 40 pin
OFF : J16 Header
ON : 40 pin (default)
S1.3 Header(J16)/40 pin and FTDI
OFF : 40 pin/J16 header
ON : FTDI (default)
S1.4 60 pin and FTDI/40 pin/J16
OFF : 60 pin
ON : FTDI/J16 header/40 pin (default)
S1.5
60 pin/FTDI/40 pin and
XDS110
OFF : 40/60 pin/FTDI
ON : XDS110 (default)
S1.6 60/40 pin and FTDI
OFF : 60/40 pin
ON : FTDI (default)
S1.7 60/40 pin and FTDI
OFF : 60/40 pin
ON : FTDI (default)
S1.8 40 pin and 60 pin
OFF : 60 pin (default)
ON : 40 pin
S1.9 40 pin and 60 pin
OFF : 60 pin (default)
ON : 40 pin
S1.10 40 pin and FTDI
OFF : 40 pin
ON : FTDI (default)
S1.11 40 pin and FTDI
OFF : 40 pin
ON : FTDI (default)
S1.12 XDS110/14 pin
OFF : 14 pin
ON : XDS110 (default)
