5.7 IWR6843ISK-ODS Antenna
The IWR6843ISK-ODS includes on-board-etched short range antennas (approximately 12-15 meters for
people detection) for the four receivers and three transmitters. Figure 86 shows the PCB antennas
arrangement. This provides equal angular resolution both in Azimuth and Elevation directions with the help
of 4 × 3 virtual antennas positions.

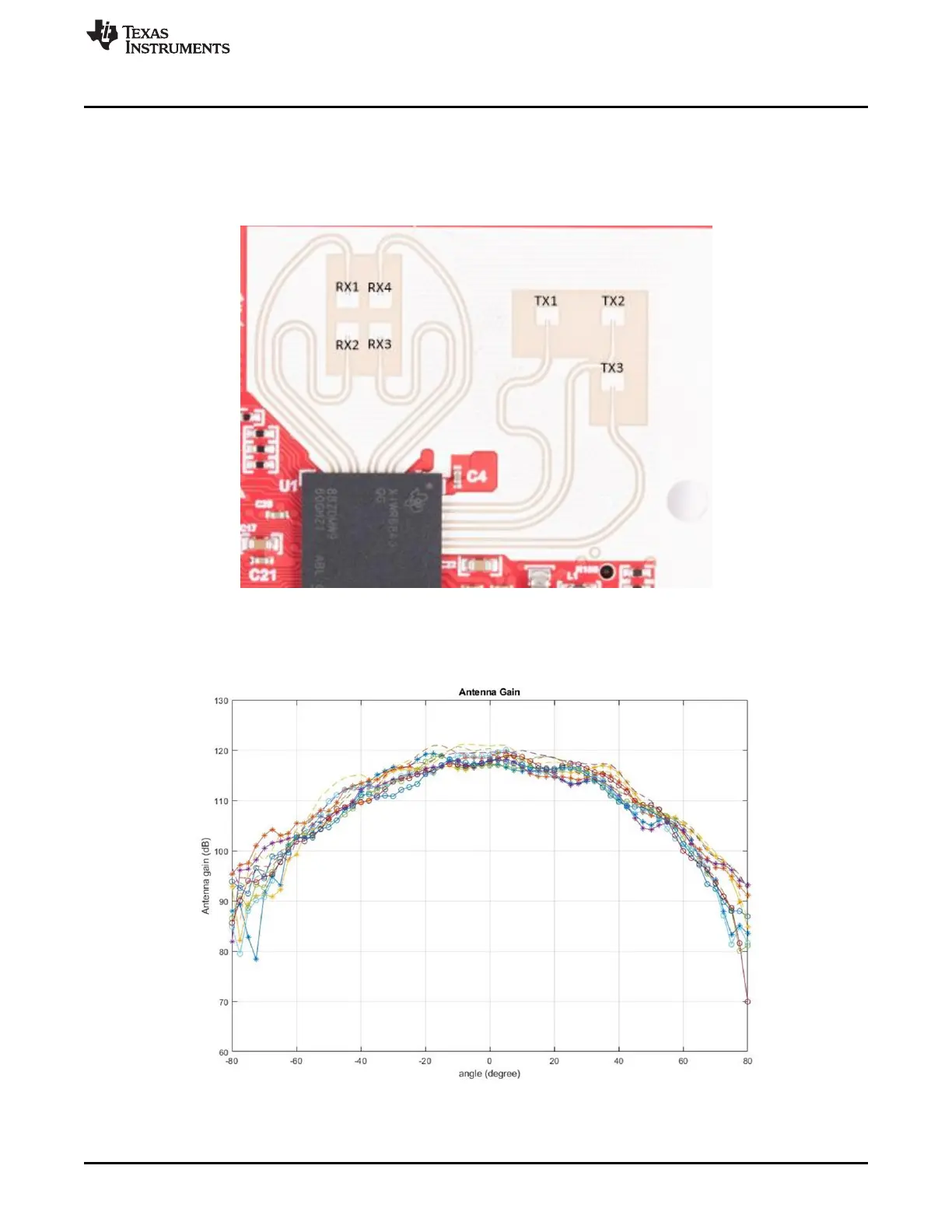

Figure 86. IWR6843ISK-ODS PCB Antenna
Figure 87 shows combined Antenna Radiation pattern in the Azimuth plane for all the transmitter and
receiver pairs together (TX[1-3]-RX[1-4]).
Figure 87. Measured Azimuthal Radiation Pattern for All Tx to Rx Pairs (All 12 Virtual Antenna Pairs
Included)
