mmWaveICBoost and Antenna Module
Figure 93 shows the antenna radiation pattern with regard to azimuth. Figure 94 shows the antenna
radiation pattern with regard to elevation for TX1, TX2, and TX3. Both show the radiation pattern for TX1,
TX2, and TX3, and RX1, RX2, RX3, and RX4 together.

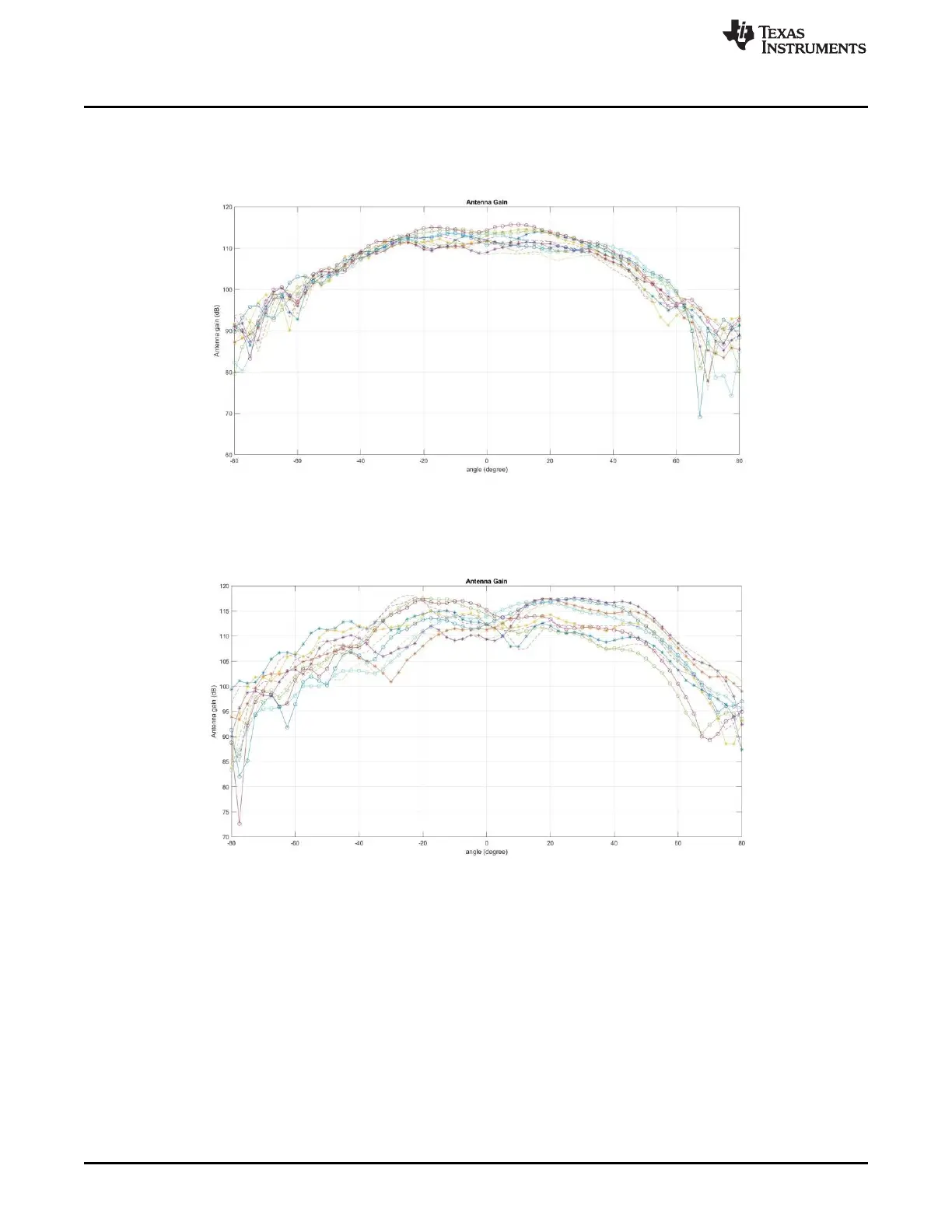

Figure 93. Measured Azimuthal Radiation Pattern for All Tx to Rx Pairs (All 12 Virtual Antenna Pairs
Included)
Figure 94. Measured Elevation Radiation Pattern for All Tx to Rx Pairs (All 12 Virtual Antenna Pairs
Included)
