mmWaveICBoost and Antenna Module
4.5 IWR6843AOPEVM Antenna

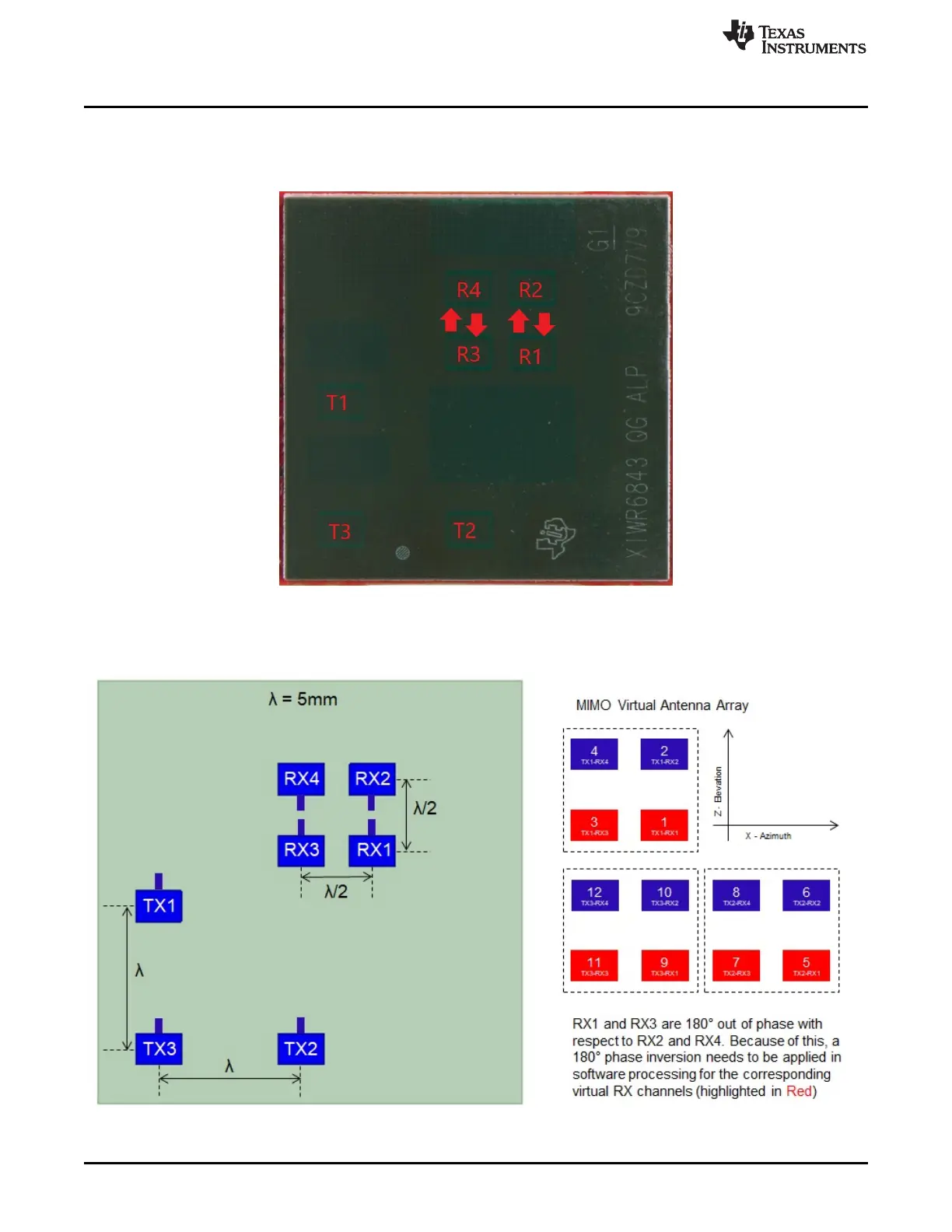

The IWR6843AOPEVM includes four receiver and three transmitter short range antennas on the package
of the chip. Figure 63 shows the antenna on package.
Figure 63. AOP Antennas
Figure 64. IWR6843AOP antenna placement MIMO array
