IWR6843ISK / IWR6843ISK-ODS (deprecated)
www.ti.com
68
SWRU546C–October 2018–Revised April 2020
Submit Documentation Feedback
Copyright © 2018–2020, Texas Instruments Incorporated
mmWaveICBoost and Antenna Module

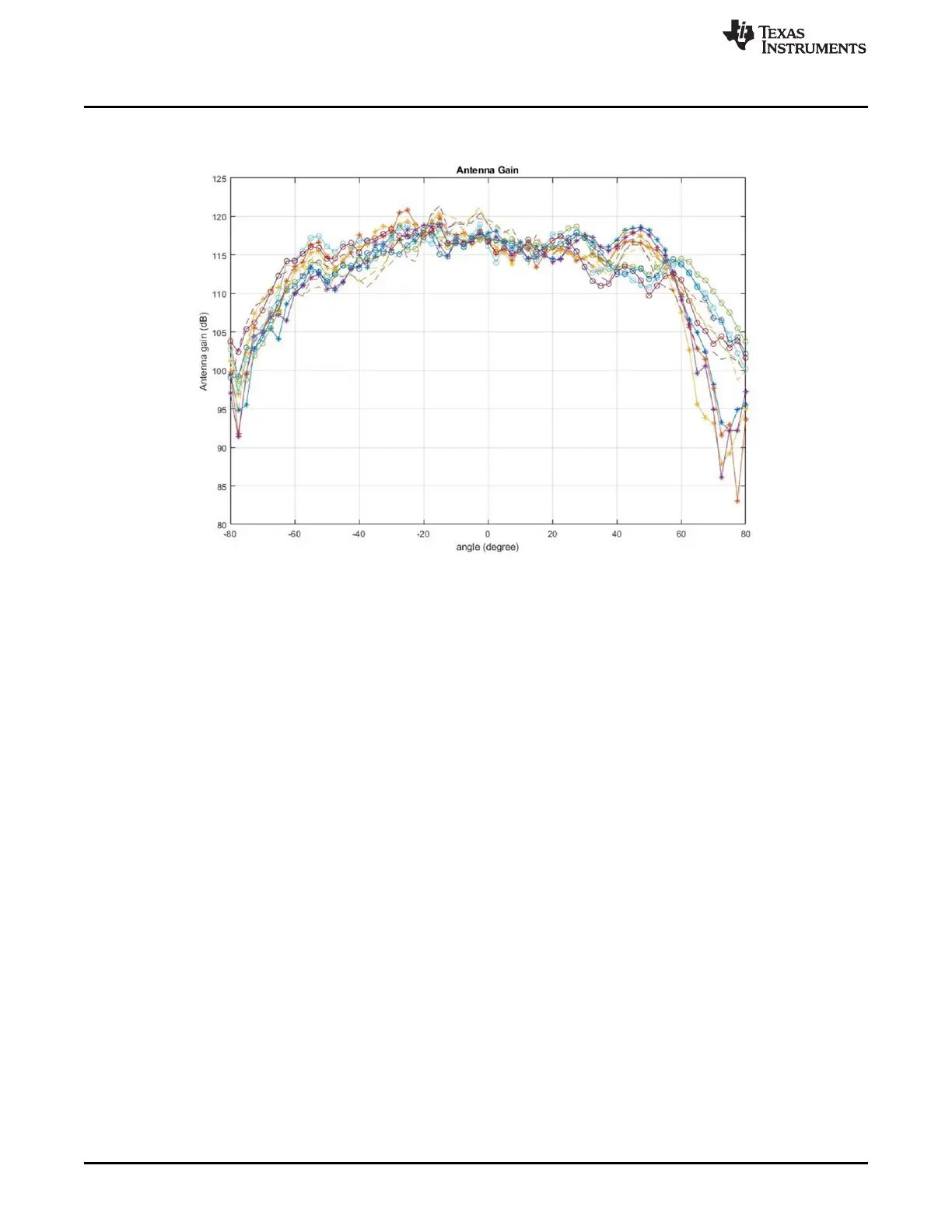

Figure 88 shows the combined Antenna Radiation pattern in the Elevation plane for all the transmitter and
receiver pairs together, TX[1-3]-RX[1-4].
Figure 88. Measured Elevation Radiation Pattern for All Tx to Rx Pairs (All 12 Virtual Antenna Pairs
Included)
