MMWAVEICBOOST
www.ti.com
8
SWRU546C–October 2018–Revised April 2020
Submit Documentation Feedback
Copyright © 2018–2020, Texas Instruments Incorporated
mmWaveICBoost and Antenna Module
2 MMWAVEICBOOST
2.1 Hardware
Figure 1 and Figure 2 shows the front and rear view of EVM, respectively.

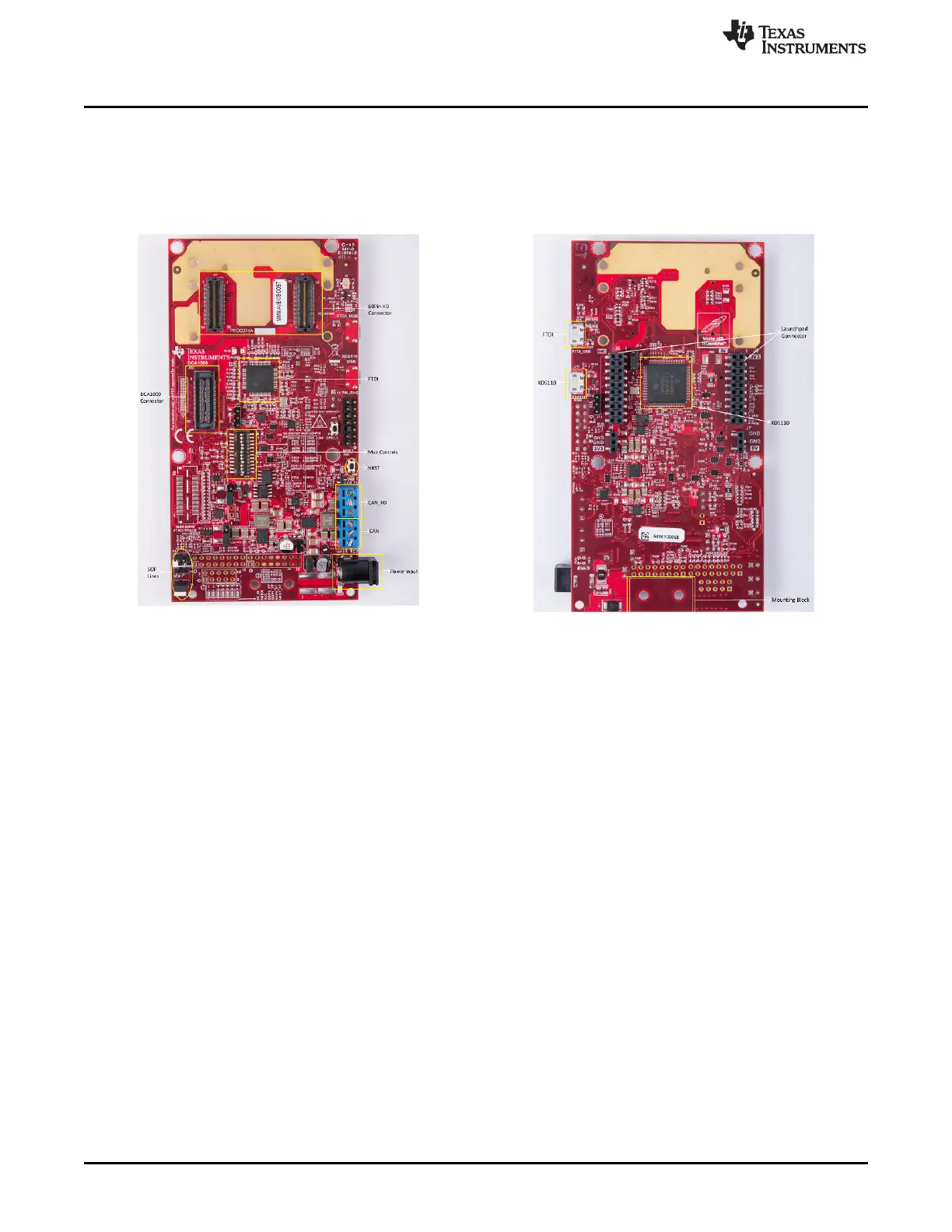

Figure 1. MMWAVEICBOOST Front View Figure 2. MMWAVEICBOOST Rear View
