6.5 Switch Settings

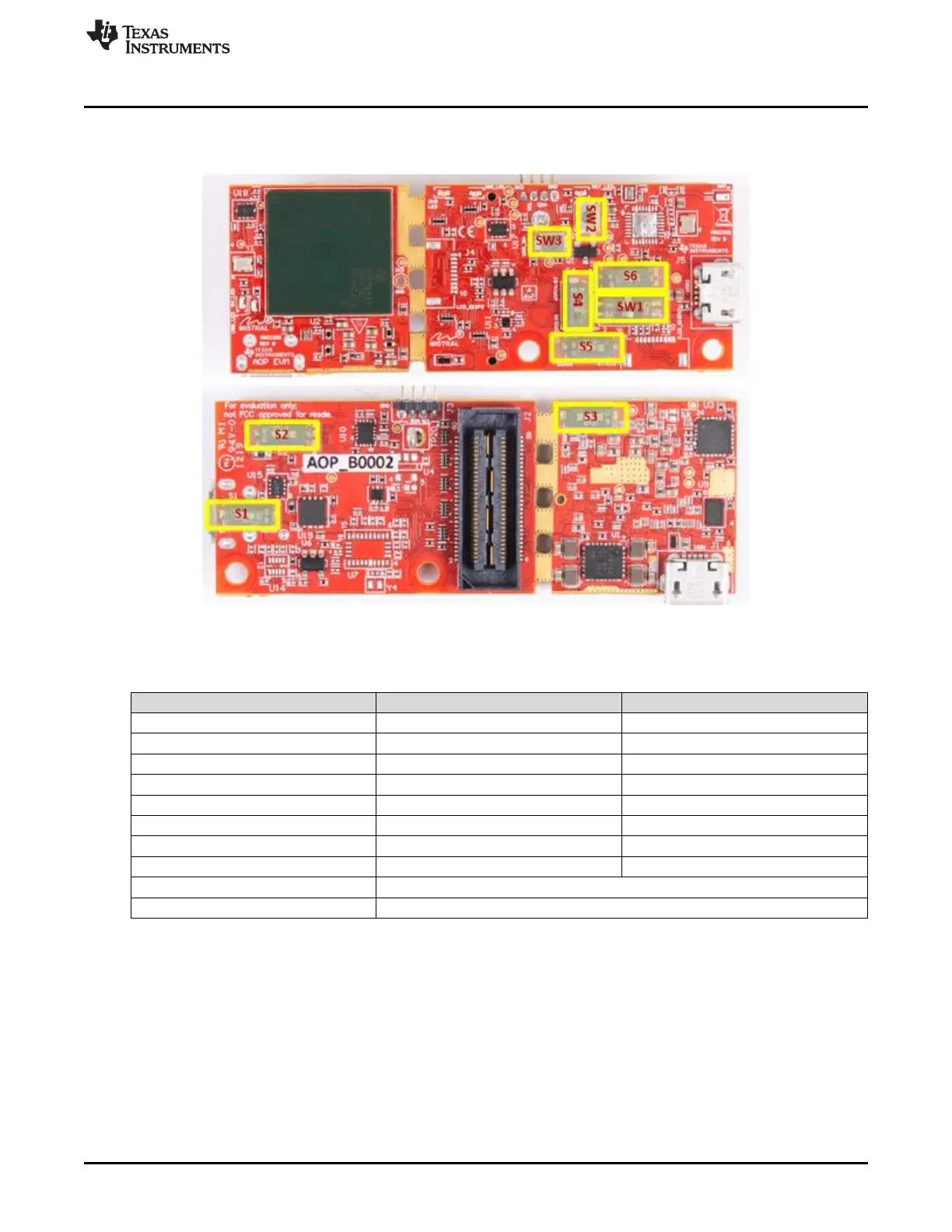

Figure 95 shows the part designators and positions of the switches on the IWR6843AOPEVM.
Figure 95. IWR6843AOPEVM Switches
Table 27. Switches
Reference Designator Switch ON Switch OFF
S1 60-pin connector Bluetooth
S2 Disable 60-pin to Bluetooth Enable 60-pin to Bluetooth
S3 SOP2 Pull up SOP2 pull down
S4 Breakaway UART Mainboard UART
S5 60-pin connector Bluetooth/LCD
S6 Bluetooth Enable Bluetooth Disable
SW1-1 SOP1 pull up SOP1 pull down
SW1-2 SOP0 pull down SOP0 pull up
SW2 Reset switch
SW3 User switch
