mmWaveICBoost and Antenna Module
For mounted mode, the UART should be routed to the 60-pin connector. Set up the device as shown in
Figure 98. When mounted as shown, the SOP mode is overridden by the MMWAVEICBOOST SOP
configuration.

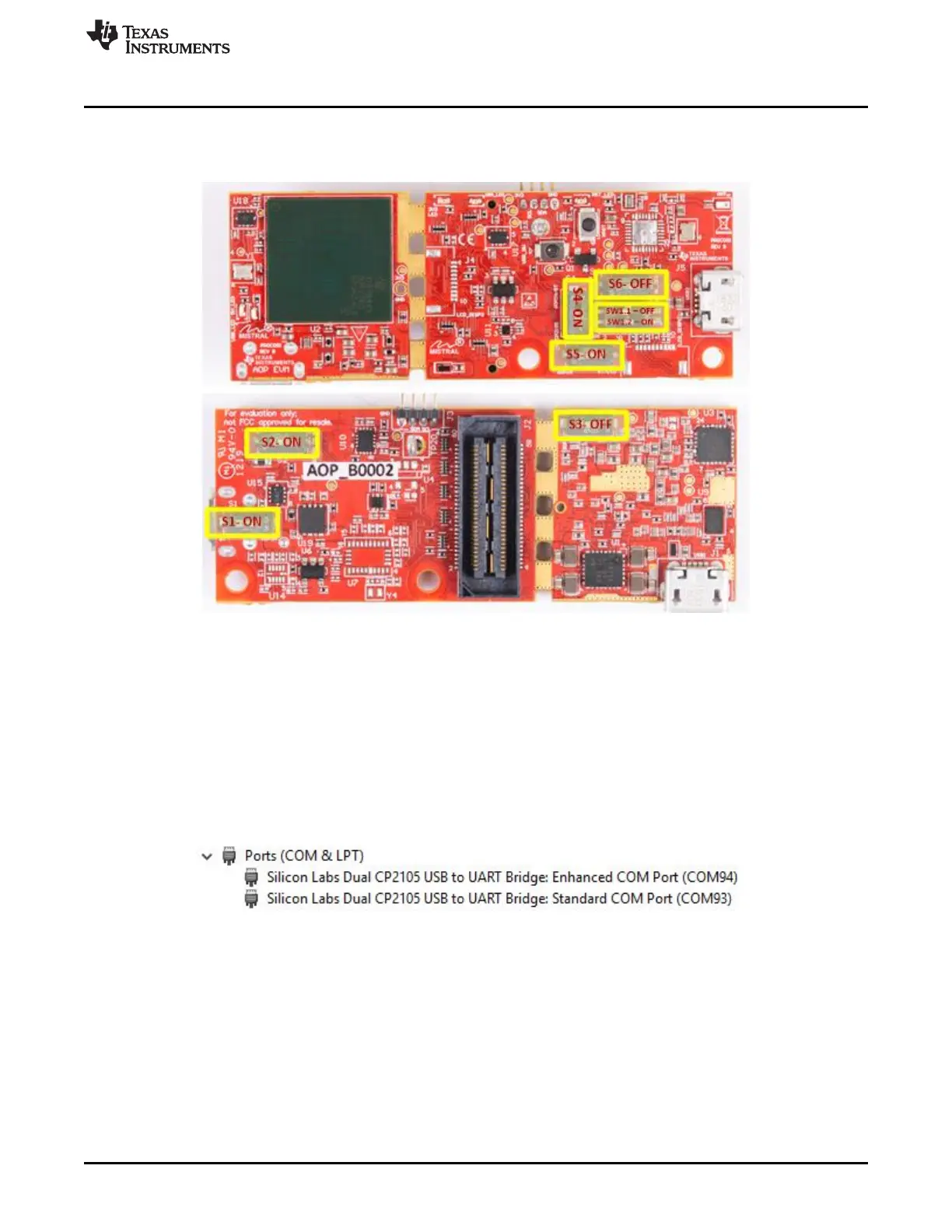

Figure 98. Switch Configuration for MMWAVEICBOOST Mode
When mounted and setup correctly, the MMWAVEICBOOST can be used same as the IWR6843ISK and
IWR6843ODS with DCA1000EVM, LaunchPads, and so forth.
6.8 PC Connection
6.8.1 Installing the Drivers
The SICP2105 drivers must be installed to access the UART port. Download and install the drivers here.
When installed correctly, the COM port should be enumerated as shown in Figure 99.
Figure 99. SICP2015 COM Ports
The enhanced COM port is the application/user UART and the standard COM port is the data port.
