xWR6843ISK / IWR6843ISK-ODS REV C
www.ti.com
34
SWRU546C–October 2018–Revised April 2020
Submit Documentation Feedback
Copyright © 2018–2020, Texas Instruments Incorporated

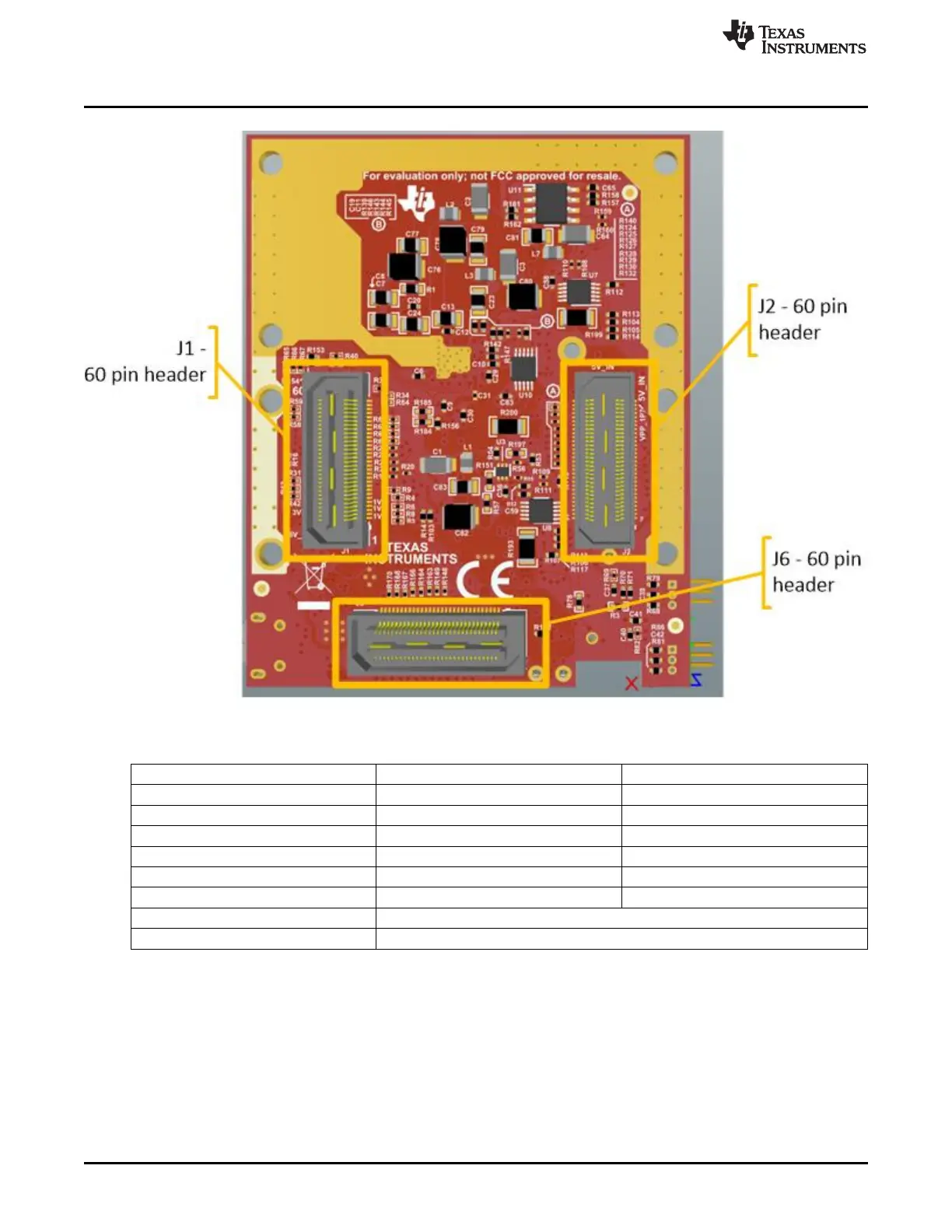

mmWaveICBoost and Antenna Module
3.5.1 Switches, Buttons and Muxes
Reference Designator Switch ON Switch OFF
S1.1 SOP2 pulled up SOP2 pulled down
S1.2 SOP1 pulled up SOP1 pulled down
S1.3 SOP0 pulled up SOP0 pulled down
S1.4 Muxes to CAN connector J3, J4 Muxes to SPI on 60 pin connector J1, J6
S1.5 Muxes USER UART to 60 pin header J1 Muxes USER UART to USB connector J5
S1.6 - -
S2 Reset Switch
S3 GPIO1 toggle switch
