mmWaveICBoost and Antenna Module

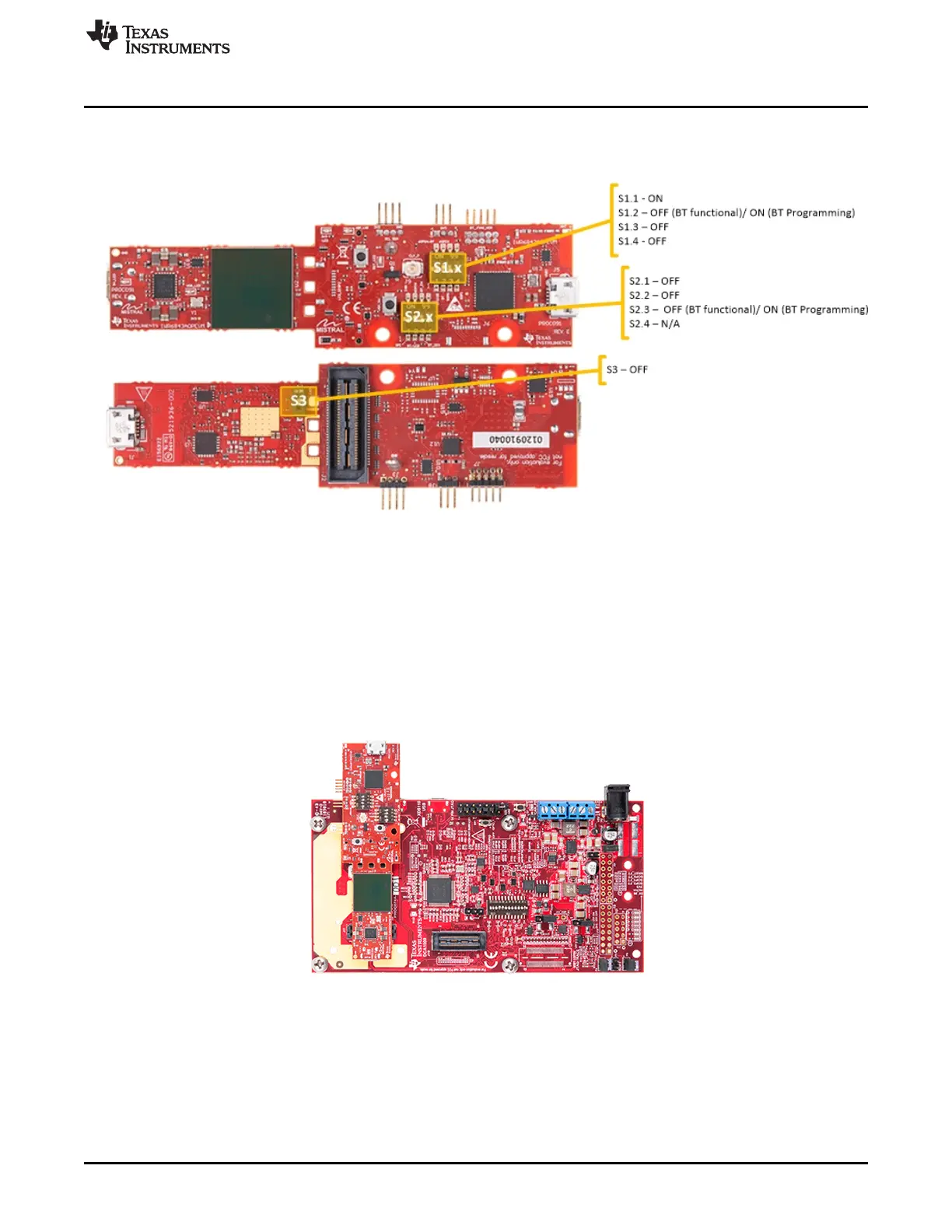

Figure 69. Switch Configuration for Bluetooth Mode
4.8.2 MMWAVEICBOOST Mode
This mode enables access to debugging tools available on the MMWAVEICBOOST such as the JTAG,
ADC capture, CAN, LaunchPad connector, and so forth.
Figure 70. IWR6843AOPEVM Mounted on MMWAVEICBOOST
