RemovingtheFuelTank(continued)

4.Loosenhoseclampsthatsecurefuelsupplyhose(item8inFigure46)and

venthosetotankttings.Carefullydisconnectfuelsupplyhoseandvent

hosefromtankttings.

5.Removefueltankfrommachine(Figure46).

Iffuelpumpassemblyistoberemovedfromfueltank,noteorientationoffuel

pumpttingforassemblypurposes(Figure47).

InstallingtheFuelTank

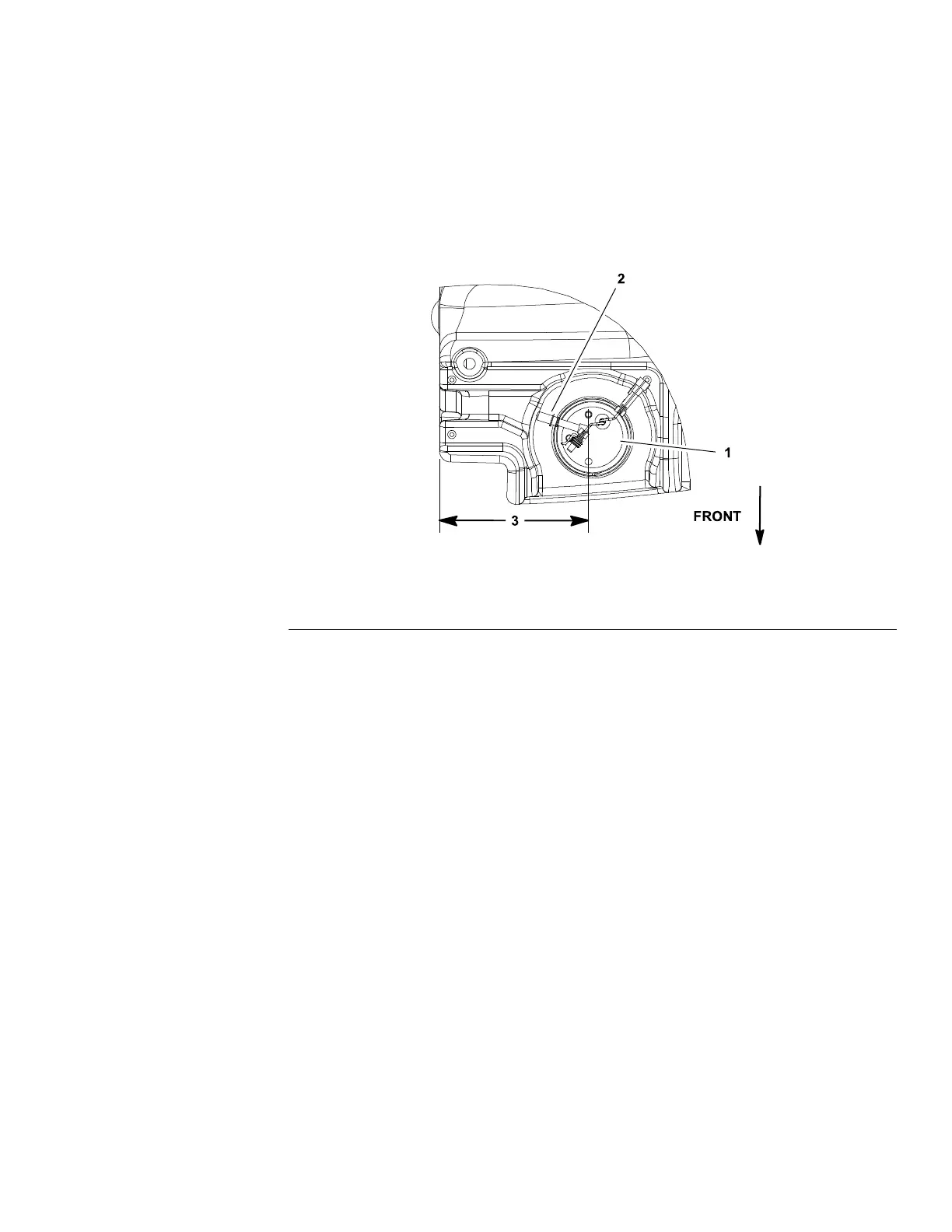

g229324

Figure47

1.Fuelpumpassembly

2.Fuelsupplytting

3.Parallel

1.Installfueltanktoframe(Figure46).Securefuelhoseswithcabletiesas

notedduringfueltankremoval.

Iffuelpumpassemblywasremovedfromfueltank,ensurethatfueltting

onpumpisorientatedasFigure47.Torquethefuelpumpcapto20to22

N∙m(175to200in-lb),ensurethatfuelpumpassemblydoesnotturnas

capistightened.

2.Connectfuelsupplyhoseandventhosetotankttings.Securehoseswith

hoseclamps.

3.Ensurethatfueltankdraincockisclosed.Fillfueltankwithcleanfuel.

4.Primethefuelsystem;refertoPrimingtheFuelSystem(page5–12).

Reelmaster

5410/5510/5610Series

Page5–13

KubotaGasolineEngine:ServiceandRepairs

15216SLRevC
