Toro 03606A Service Manual

InstallingtheSteeringColumn

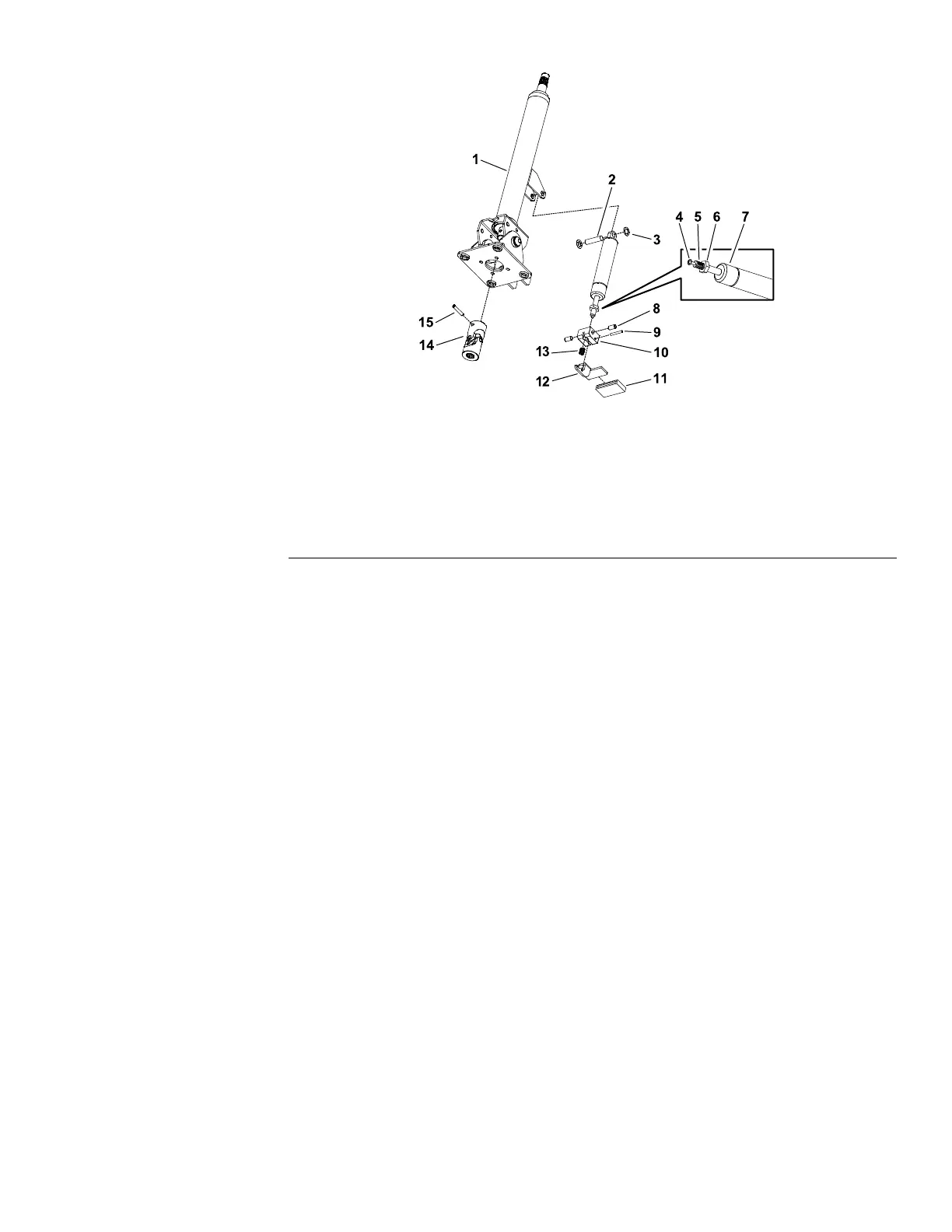

g185937
Figure293
1.Steeringcolumn5.Cylindershaft
9.Pin
13.Spring
2.Pin6.Jamnut10.Pedalblock14.Universaljoint
3.Lockwasher(2
each)
7.Cylinder
11.Pedalcover15.Pin
4.Releasepin
8.Bolt(2each)
12.Pedal
1.Assemblethesteeringcolumn(Figure293).Afterassembly,ensurethatthe
releasepinontheendofthecylindershaftispositionedagainstthepedal.
Thejamnutonthecylindershaftcanbeusedtoadjustthelocationofthe
releasepin.
2.Applyanti-seizelubricanttotheinputshaftofthesteeringcontrolvalve(item
7inFigure291).
3.Slidethesteeringcolumnassembly(item14inFigure291)ontothesteering
controlvalve.Securethesteeringcolumninplacewiththe4socket-head
screws(item5inFigure291)and4angenuts.
4.Securethesteeringcontrolvalvetothesteeringcolumnwiththe4
socket-headscrews(item13inFigure291);torquethesocket-headscrews
to9.5to13.5N∙m(84to120in-lb)inacriss-crosspattern.
5.Slidetherubberbellowstothebottomofthesteeringcolumn.
6.Placethe2rubberbushingsand2spacersintotheholesoftheplatform
shroud(Figure292).Positiontheplatformshroudinplaceandsecurewith
thefastenersthatwereremoved.
7.Installthecoverplatetotheplatform.
8.Cleanthetaperedsurfacesofthesteeringwheel(item4inFigure291)and
steeringcolumn.
9.Applyanti-seizelubricanttothesplinesofsteeringcolumnandensureto
keeptheanti-seizelubricantfromthesteeringcolumntaper.Slidethe
steeringwheelontothesteeringcolumn.
10.Securethesteeringwheeltothesteeringcolumnassemblywiththeat
washerandlocknut;torquethelocknutto28to35N∙m(20to26ft-lb).
11.Installthesteeringwheelcover(item1inFigure291)ontothesteeringwheel.
Reelmaster
®
5410/5510/5610Series
Page8–9
Chassis:ServiceandRepairs
15216SLRevC
