LevelingtheRearRoller(continued)
5.Adjustthepositionofthesideplatetoparalleltherearrollerandcuttingreel.
Tightentheshoulderboltsto37to44N∙m(27to33ft-lb).
6.Aftertighteningthesideplate,checktherearroller.Ifnecessary,loosenand
adjustthesecondsideplate.
g214395

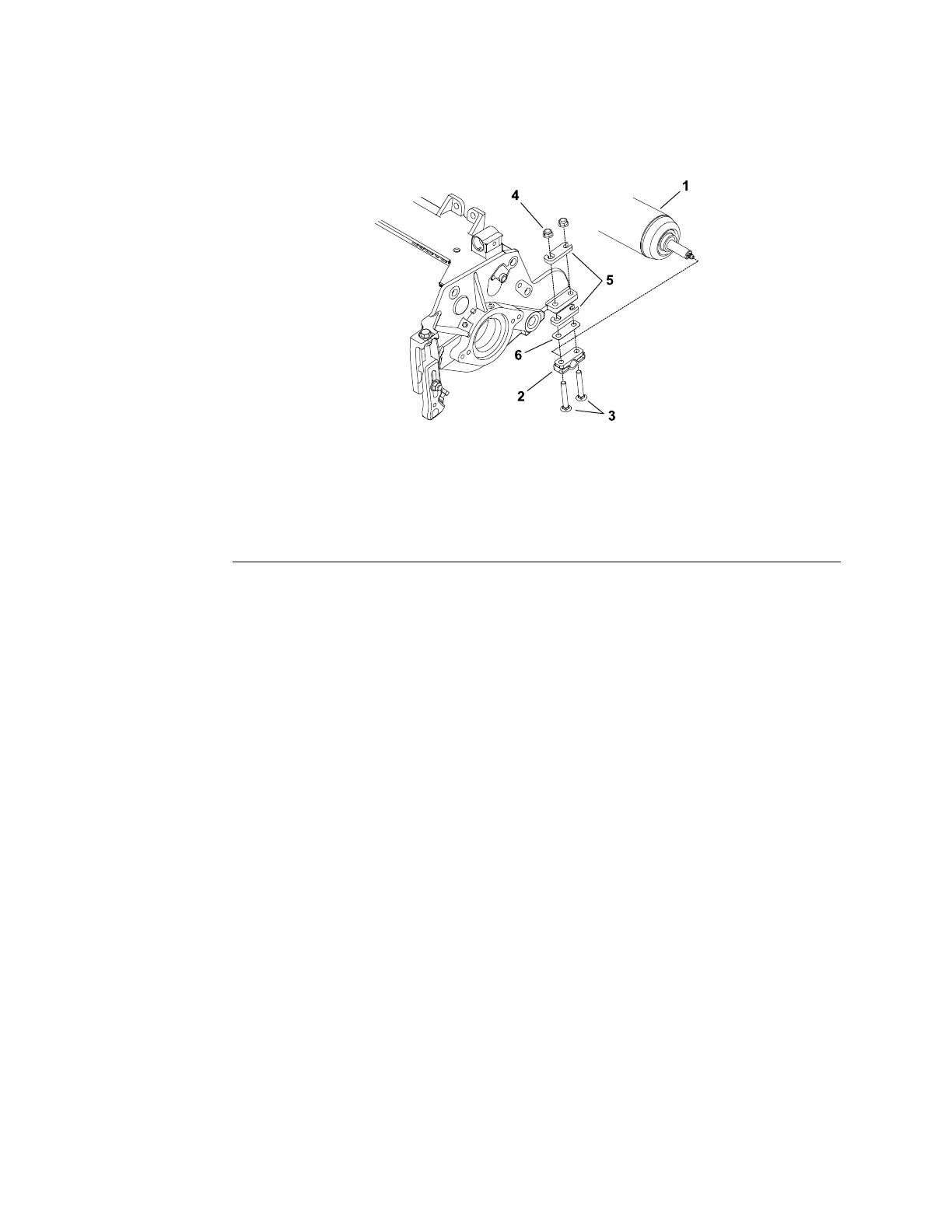

Figure326
1.Rearrollerbracket5.Rearrollerassembly
2.0.010inchshim(ifnecessary)6.Rollershim(2each)
3.Flangenut(2each)7.Carriagescrew(2each)
4.Flatwasher(2each)
7.Iftherearrollerisstillnotlevelafteradjustingbothsideplates,checktosee
ifthecuttingreelistapered;referto(page).Ifthecuttingreelisnottapered
andrearrollerisnotlevel,a0.010inchshim(T oroPartNo.107-4001)is
availabletoallowadditionalrearrolleradjustment.Theshimwouldbeused
ononesideoftherearrollerandshouldbeinstalledbetweentherearroller
bracketandtherollershim(Figure326).
8.Afterlevelingtherearroller,completethecuttingunitset-upandadjustment
sequence.
CuttingUnit:Adjustments
Page9–16
Reelmaster
®
5410/5510/5610Series
15216SLRevC
