InstallingtheHydraulicReelMotor(continued)

g230062

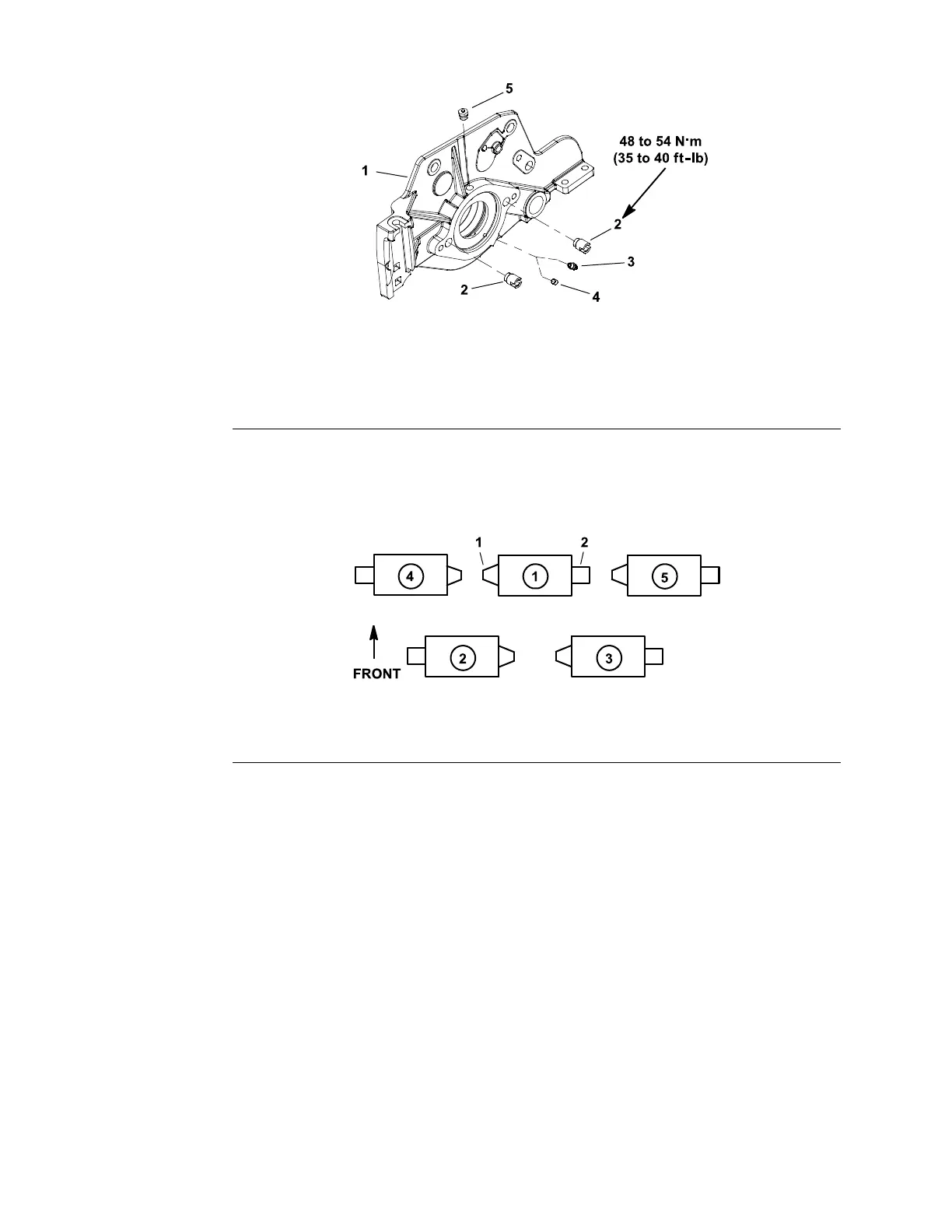

Figure328

1.Aluminumsideplate

4.Setscrew

2.Threadedinsert

5.Reliefvent

3.Greasetting

Note:Cuttingunitswithaluminumsideplateshavethreadedinsertsforthe

reelmotormountingbolts(Figure328).Checktheconditionoftheseinserts

wheneverthereelmotorisremoved.Replacetheinsertsifthereisanydamage.

Tighterinsertsto48to54N∙m(35to40ft-lb)duringinstallation.

g214397

Figure329

1.Weightlocation2.Reelmotorlocation

Note:RefertoFigure329forcorrectplacementofcuttingunitreelmotorsand

weights.

1.CoatthesplineshaftofthereelmotorwithNo.2multipurposelithiumbase

grease.

2.Installthecapscrewsforthereeldrivemotorintothecuttingunitsideplate

andleaveapproximately12.7mm(1/2inch)ofthreadsexposedoneach

screw.

3.Rotatethemotorclockwisesothatthemotorangescleartheboltsinthe

cuttingunitsideplates.Alignthereelmotorshaftsplineswiththecuttingreel

insertsplines.Slidethemotorshaftintothereelinsert.

CuttingUnit:ServiceandRepairs

Page9–18

Reelmaster

5410/5510/5610Series

15216SLRevC
