InstallingtheGroomerReel(continued)

g215593

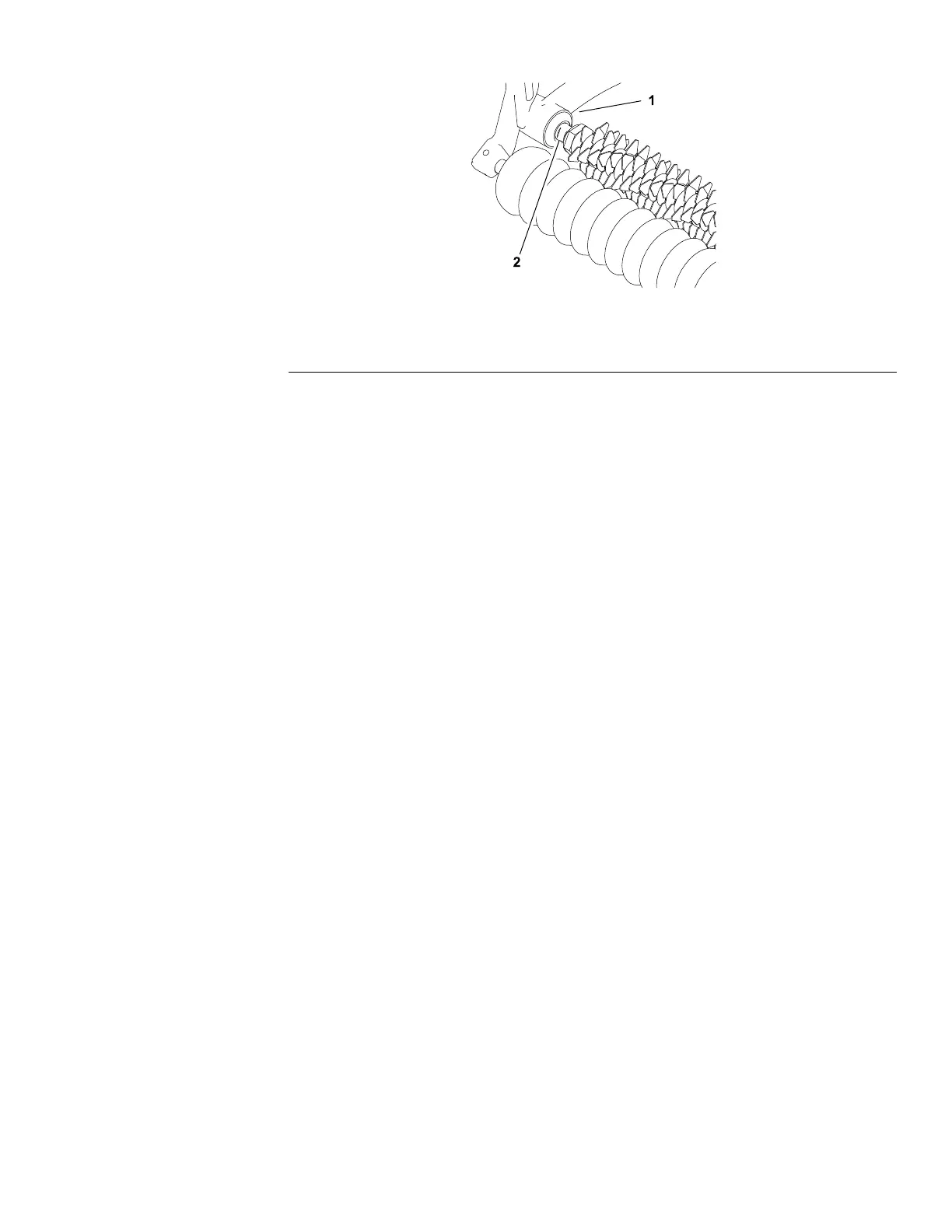

Figure384

1.Groomerplate

2.Excluderseal

6.Checkthattheexcludersealsjusttouchthegroomerplateassembly(Figure

384).Positiontheexcludersealsonthegroomershaftifnecessary.

7.Checkthegroomerreelheightandmowerheight-of-cutsettings.Adjust

asnecessary.

8.Lubricatethegroomerbearings.

Note:Aftergreasingthegroomerbearings,operatethegroomerfor30

seconds,stopthemachine,andremovetheunwantedgreasefromthe

groomershaftandseals.
