Groundsmaster 4100--D/4110--DHydraulic System Page 4 -- 86

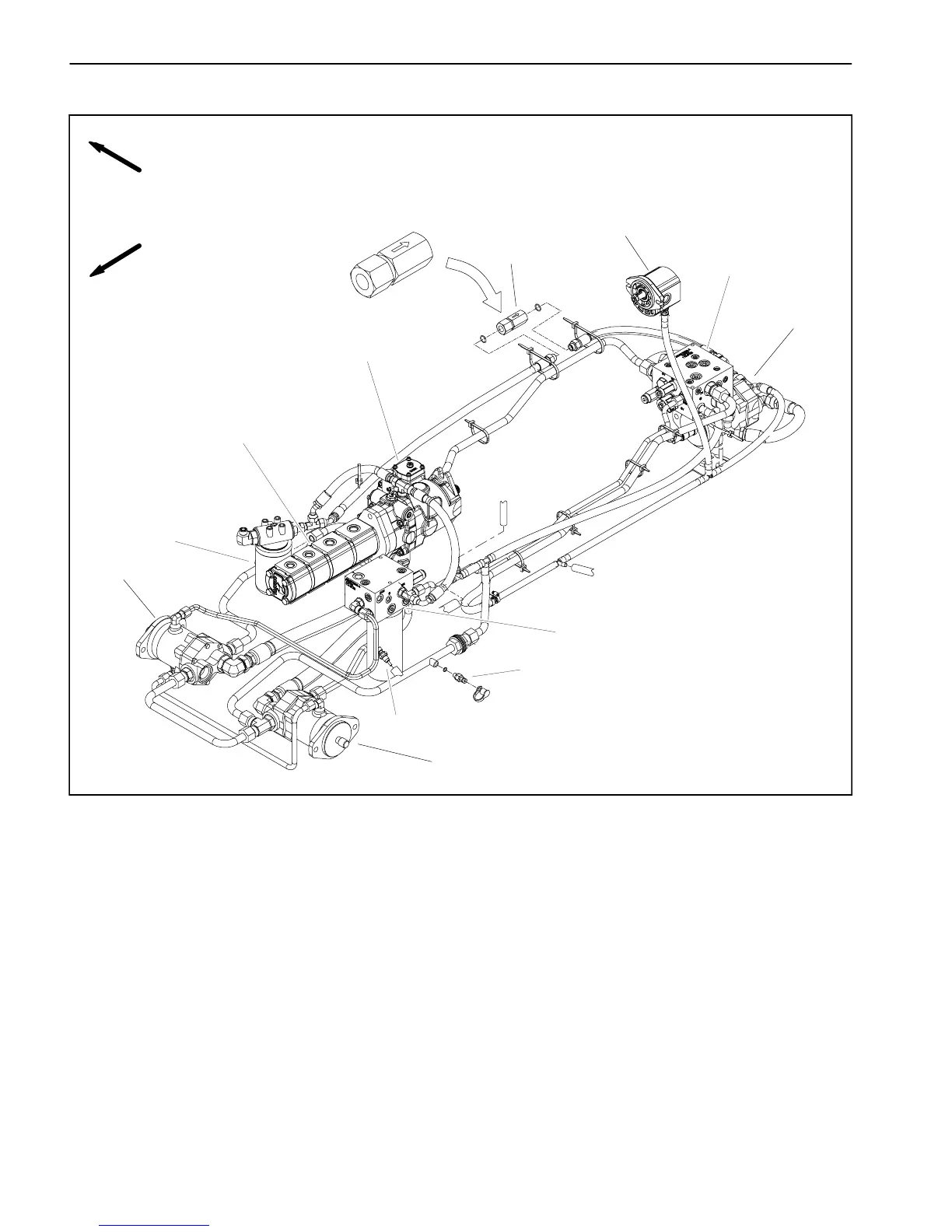

Traction Circuit
1. Piston (traction) pump
2. Gear pump
3. LH front wheel motor
4. Check valve
5. RH front wheel motor
6. 4WD manifold
7. Filter manifold
8. Rear axle motor
9. Cooling fan motor
10. Reverse traction pressure port
11. Forward traction pressure port
12. Hydraulic temperature sender
Figure 61
FRONT
RIGHT
2
1
5
4
3
7
6
8
9
NOTE: Arrow on check valve
points toward rear of machine
11
10
12
Figure61illustratesthecomponentsthatareusedinthe
Groundsmaster 4100--D and 4110--D traction circuit.
Procedures for removal, installation and disassembly/
assembly of these components are provided on the fol-
lowing pages of this section.
