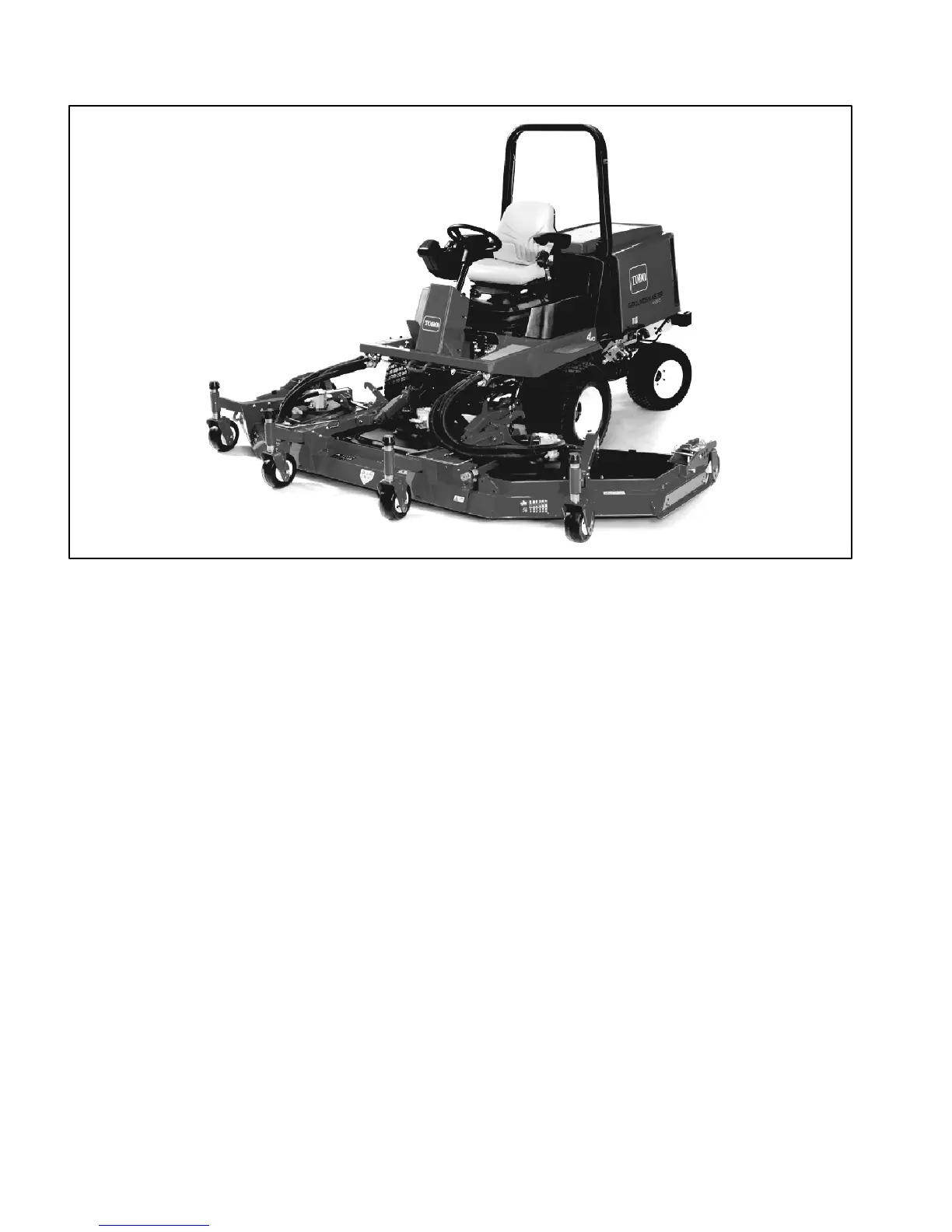

Groundsmaster 4100--D/4110--DCutting Deck
Page 8 -- 2
Specifications
MOUNTING:Cuttingdeckissupportedbyliftarmscon-
trolled with individual lift switches.
CONSTRUCTION: Deck chamber is welded 12 gauge
steel construction reinforced with channels and plates.
HEIGHT--OF--CUT RANGE: 1” to 5” (25.4 mm to 127
mm) adjustable in 1/2” (12.7 mm) increments. Center
deckheight--of--cutadjustmentisachievedbychanging
spacers on castor wheels and adjusting length of deck
support chains. Wing deck adjustment achieved by
changing spacers on castor wheels, re--positioning the
castor wheel axles in the castor forks and securing the
castorwheelbrackettothecorrectheight--of--cutbrack-
et holes.
DECK DRIVE: Closed loop hydraulic system operates
hydraulic motor on each cutting deck section. Motor
drives one spindle directly with remaining deck section
spindle(s) driven by B section kevlar v--belt(s). Blade
spindles are 1--1/4” (31.7 mm) shafts supported by
greaseable, tapered roller bearings.
CUTTING BLADE: Cutting blade dimensions are 19”
(483 mm) long, 2.5” (64 mm) wide and 0.250” (6.4 mm)
thick. Anti--scalp cup installed on each cutting blade.
Center deck includes three (3) blades and each wing
deck includes two (2) blades.
WIDTH OF CUT: Front deck provides 54” (1372 mm)
width of cut. Each side deck has 37” (940 mm) width of
cut. Total width of cut is 124” (3150 mm).
DISCHARGE:Clippingsaredischargedfromtherearof
the cutting deck.
SUSPENSION SYSTEM: A fully floating suspension
with hydraulic counterbalance. Front deck suspended
from lift arms and has six castor wheels, two adjustable
skids and five anti--scalp rollers.
