Groundsmaster 4100--D/4110--DHydraulic System Page 4 -- 146

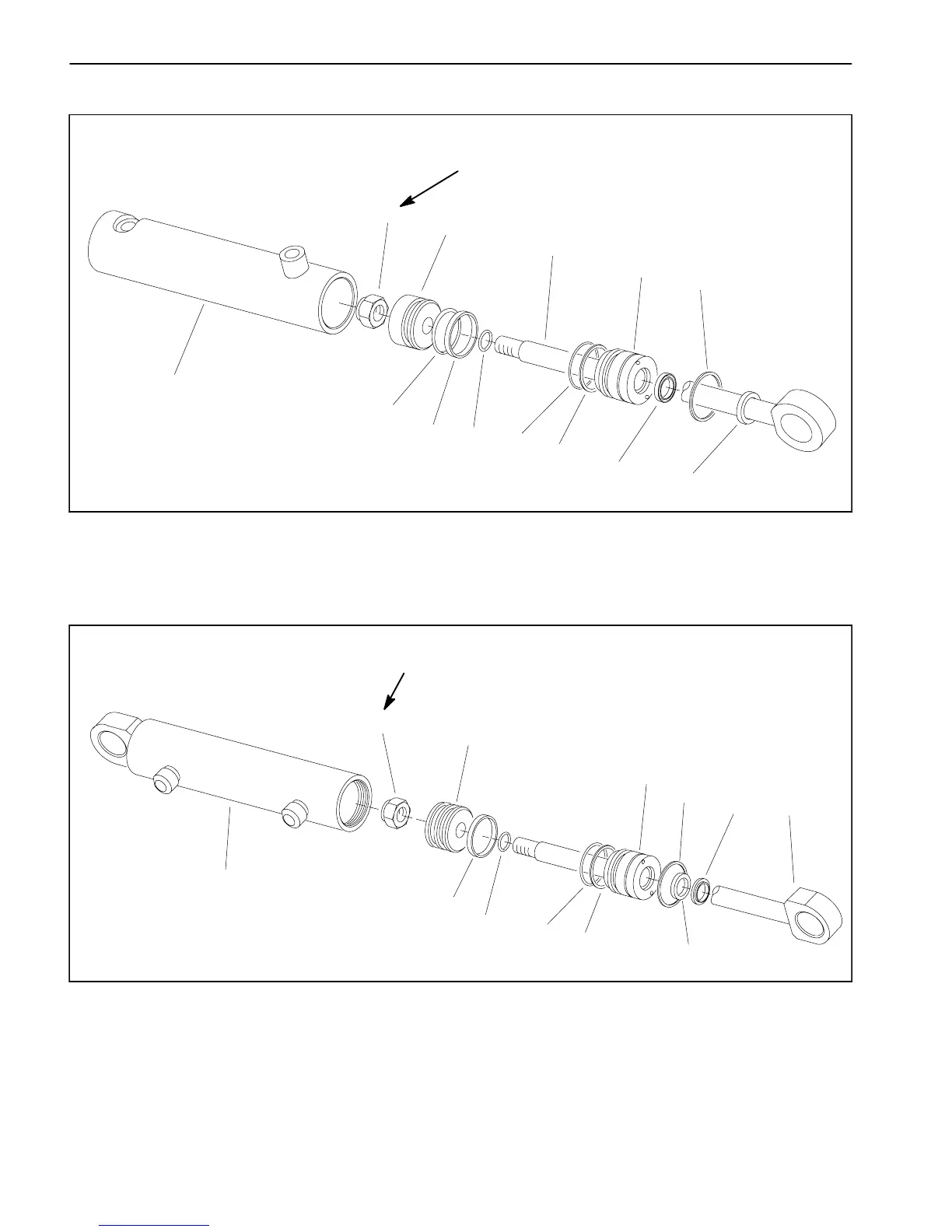

Lift Cylinder Service
1. Barrel with clevis
2. Retaining ring
3. Shaft with clevis
4. Dust seal
5. Rod seal
6. O--ring
7. Back--up ring
8. Head
9. O--ring
10. Wear ring
11. Piston
12. Lock nut
13. Seal with loader
Figure 105
11
6
5
7
8
4
3
2
9
12
1
10
13
FRONTDECKLIFTCYLINDER
100 to 120 ft--lb
(136 to 162 N--m)
1. Barrel with clevis
2. Retaining ring
3. Shaft with clevis
4. Dust seal
5. Rod seal
6. O--ring
7. Back--up ring
8. Head
9. O--ring
10. Seal with O--ring
11. Piston
12. Lock nut
Figure 106
12
11
9
10
7
6
5
8
4
3
1
2
60 to 75 ft--lb
(82 to 101 N--m)
WING DECK LIFT CYLINDER
