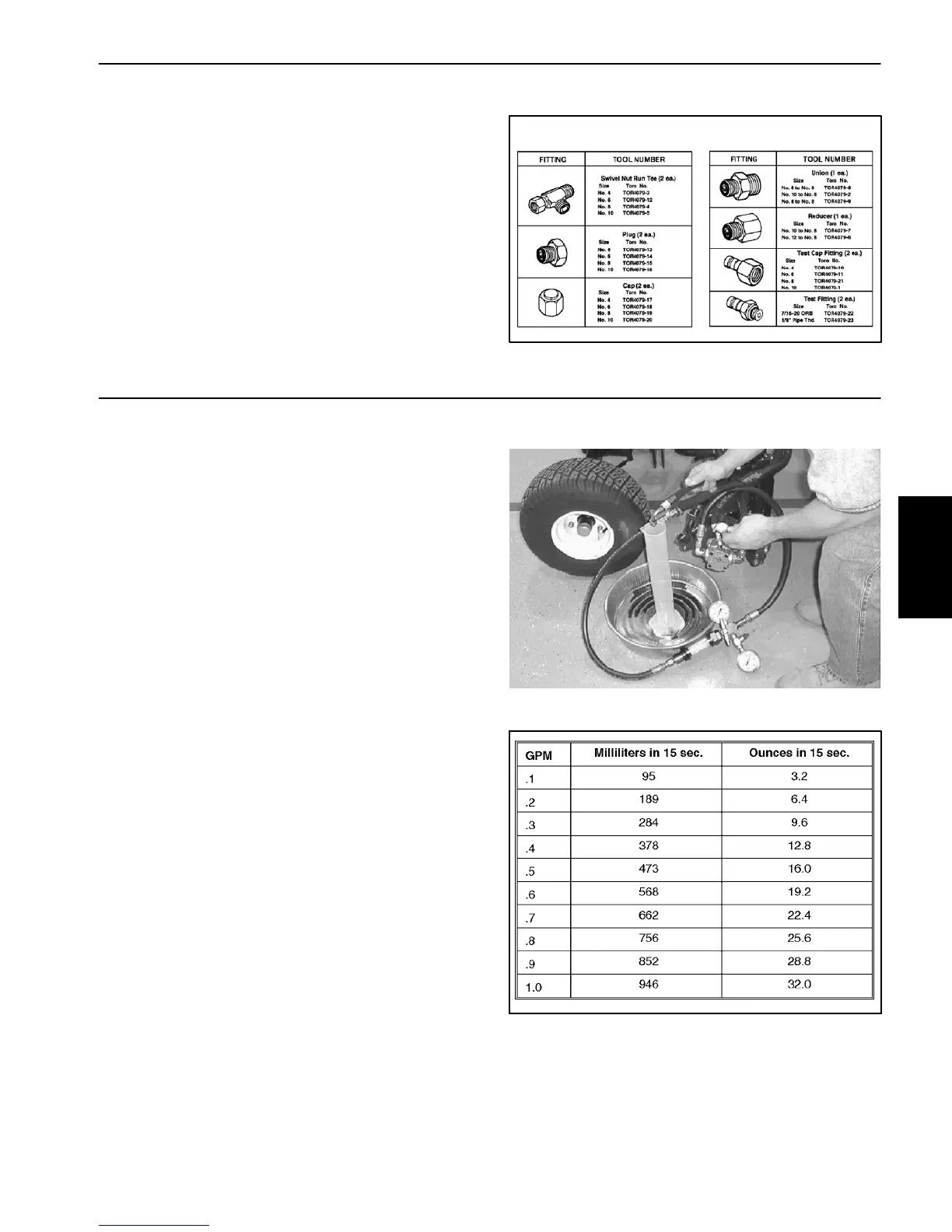

Groundsmaster 4100--D/4110--D Hydraulic SystemPage 4 -- 29
Hydraulic Test Fitting Kit
This kit includes a variety of O--ring face seal fittings to
enable the connection of test gauges into the system.
The kit includes: tee’s, unions, reducers, plugs, caps
and male test fittings.
Toro Part Number: TOR4079
Figure 23
TORO TEST FITTING KIT (TOR4079)
Measuring Container
Use this container for doing hydraulic motor efficiency
testing(motorswithcasedrainlinesonly).Measureeffi-
ciency of a hydraulic motor by restricting the outlet flow
from the motor and measuring leakage from the case
drainlinewhilethemotorispressurizedbythehydraulic
system.
The table in Figure 25 provides gallons per minute
(GPM)conversionformeasuredmilliliterorouncemotor
case drain leakage.
Toro Part Number: TOR4077
Figure 24
Figure 25
