Groundsmaster 4100--D/4110--DHydraulic System Page 4 -- 82
Gear Pump
1. Hydraulic tee fitting
2. Roll pin
3. 90
o
hydraulic fitting
4. Piston pump
5. Flat washer (2 used)
6. Cap screw (2 used)
7. Hydraulic fitting (2 used)
8. 90
o
hydraulic fitting
9. Hydraulic fitting
10. Hydraulic hose
11. O--ring
12. Pump spacer
13. O--ring (2 used)
14. O--ring
15. 90
o
hydraulic fitting (2 used)
16. Pump coupler
17. O--ring
18. Flat washer (2 used)
19. Cap screw (2 used)
20. Engine
21. Gear pump
22. O--ring
23. Hydraulic hose
24. O--ring
25. Hose clamp
26. Hydraulic hose
27. O--ring
28. Hose clamp
29. Hydraulic hose
30. O--ring
31. O--ring
32. Hydraulic hose
33. Hydraulic hose
34. Hydraulic fitting
35. Flat washer

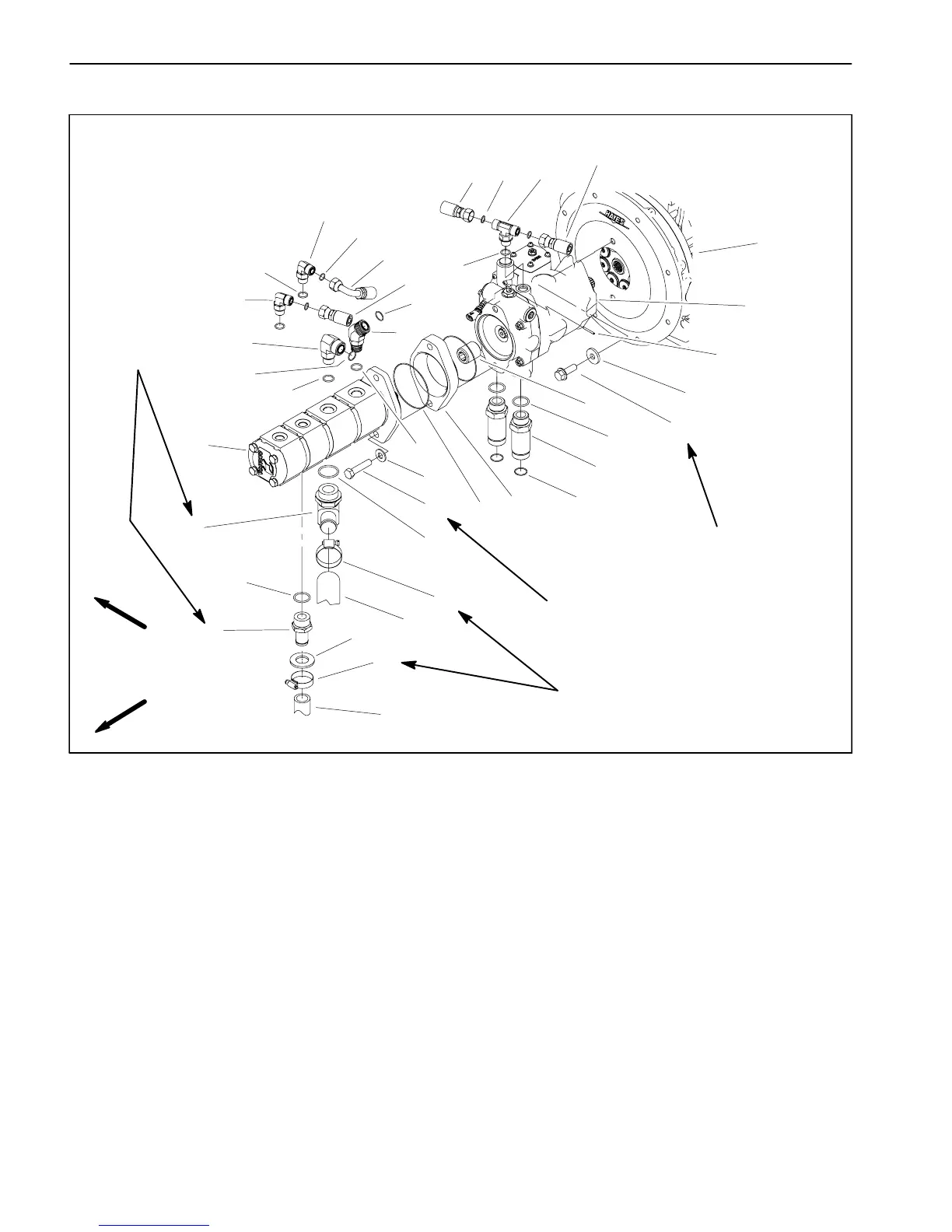

Figure 57
FRONT
RIGHT
1
9
7
15
14
12
4
8
10
6
3
13
5
2
11
16
17
18
19
20
14
11
21
22
23
24
25
26
27
28
29
30
22
24
31
32
33
34
103 to 118 ft--lb
(140 to 160 N--m)
30 to 40 in--lb
(3.4 to 4.5 N--m)
79 to 84 ft--lb
(108 to 113 N--m)
Loctite #242
79 to 84 ft--lb
(108 to 113 N--m)
Loctite #242
35
15
