Toro 30413 Service Manual

Groundsmaster 4100--D/4110--DHydraulic System Page 4 -- 78

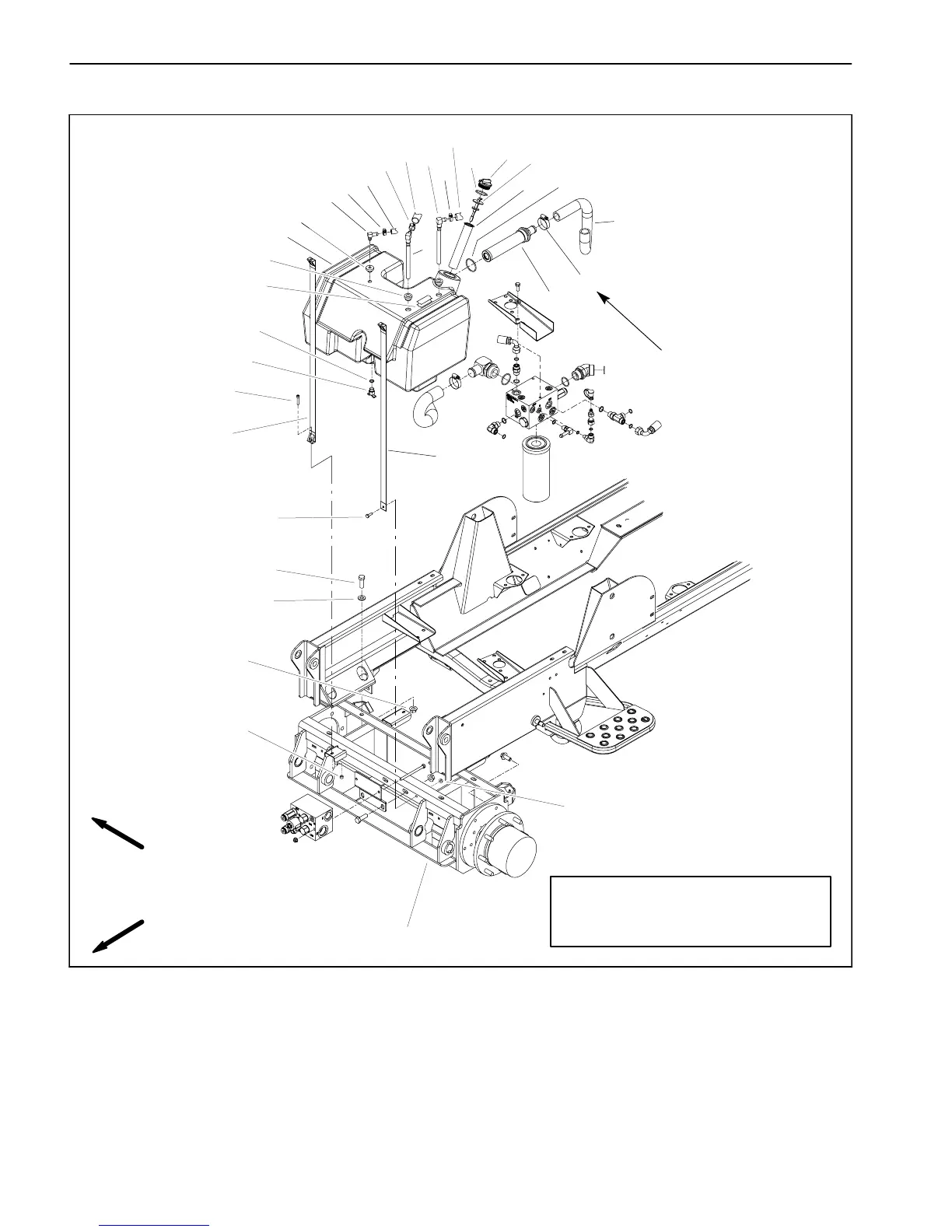

Hydraulic Reservoir
1. Hydraulic reservoir
2. Petcock
3. O--ring
4. Strap
5. Felt strap (2 used)
6. Bushing (2 used)
7. Bushing
8. Strap
9. Stand pipe (2 used)
10. Hose clamp (2 used)
11. Screen filter
12. Dipstick
13. O--ring
14. Reservoir cap
15. Suction hose
16. Tank strainer
17. Hose clamp
18. Hose
19. Hose clamp
20. Cap screw
21. Socket head screw (3 used)
22. Lock nut (3 used)
23. Hose
24. Hose
25. Elbow fitting
26. Flange nut
27. O--ring
28. Flat washer (6 used)
29. Front frame
30. Flange nut (6 used)
31. Cap screw (6 used)
Figure 55
FRONT
RIGHT
1
2
6
8
7
9
11
12
13
14
21
22
20
5
15
16
3
18
19
10
17
4
23
9
26
24
25
27
30 to 40 in--lb
(3.4 to 4.5 N--m)
(minimum)
28
31
30
29
NOTE: HYDRAULIC COMPONENTS
ATTACHED TO FRONT FRAME ARE
NOT SHOWN IN ILLUSTRATION
10
