Groundsmaster 4100--D/4110--DPage 3 -- 6Kubota Diesel Engine

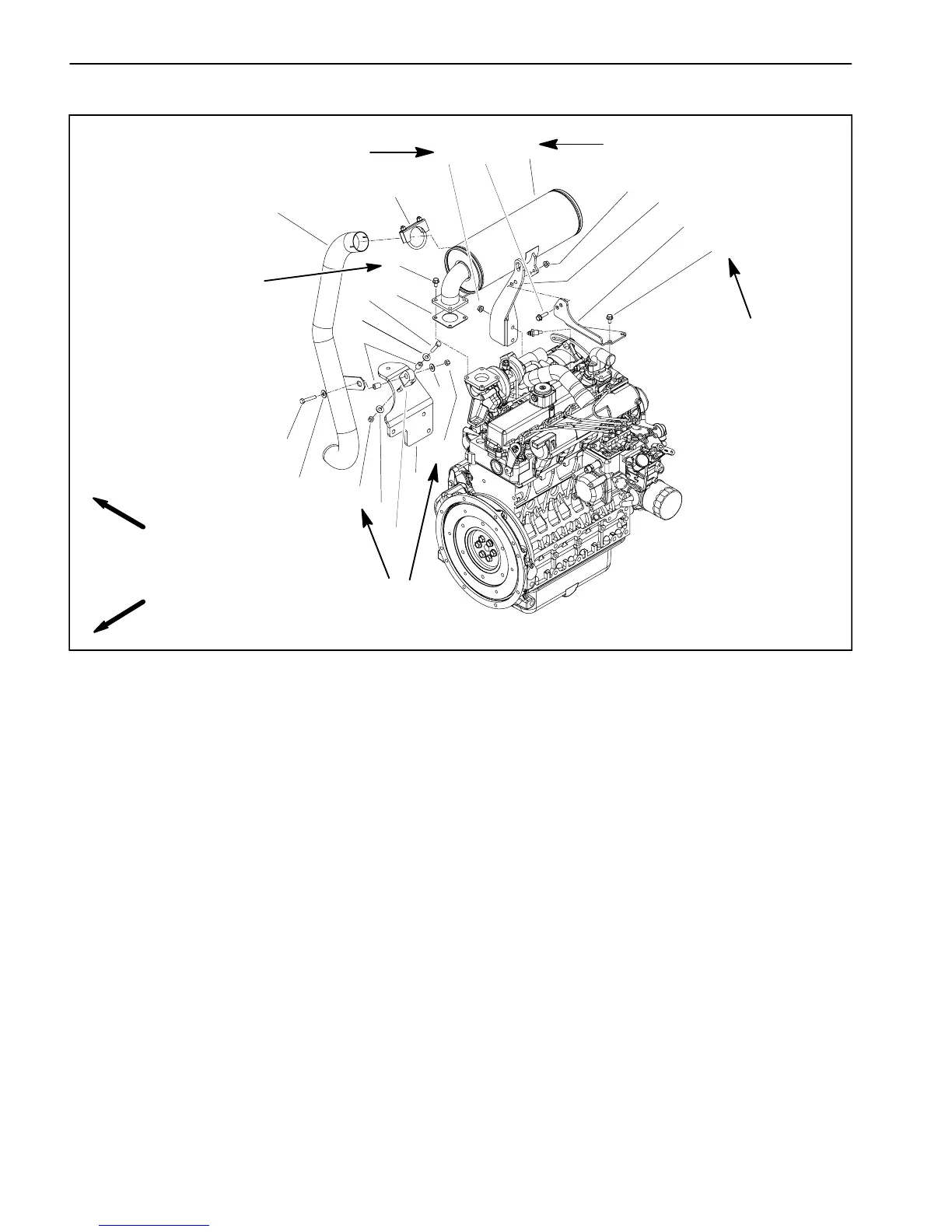

Exhaust System
Figure 5
1. Muffler
2. Muffler bracket
3. Exhaust pipe
4. Flange head screw (4 used)
5. Exhaust gasket
6. Lock nut (2 used)
7. Cap screw (2 used)
8. Flat washer (4 used)
9. Spacer (2 used)
10. Rubber hanger
11. Flange nut (4 used)
12. Flange head screw (2 used)
13. Engine mount
14. Muffler clamp
15. Exhaust mount
16. Flange head screw (2 used)
16 to 22 ft--lb
(21to29N--m)
16 to 22 ft--lb
(21to29N--m)
16 to 22 ft--lb
(21to29N--m)
FRONT
RIGHT
1
14
3
4
7
5
8
8
7
6
9
13
11
2
12
10
16
11
8
8
6
15
16 to 22 ft--lb
(21to29N--m)
13 ft--lb
(17.6 N--m)
