Groundsmaster 4100--D/4110--DPage 6 -- 32Axles, Planetaries and Brakes
Differential Gear
The following procedures assume therear axle assem-
blyhasbeenremovedfromthemachine(seeRearAxle
Assembly Removal in this section).
Differential Gear Removal
1. Removebevelgearcase/axlec aseassemblies(see
BevelGear Case/Axle CaseAssemblyinthis section of
this manual).
IMPORTANT: Do not interchange right and left dif-
ferential shafts assemblies.
2. Mark and pull the differential shaft assemblies from
the axle support.
3. Remove input shaft/pinion gear assembly, shims
and O-ring from the axle support (Fig. 36).
4. Removetheaxlesupportcasescrews.Separatethe
axle support halves and remove the O-ring.
5. Removethedifferentialgearassembly,bearingsand
adjusting shims from the axle case.
6. Drive the spring pin from the differential case with a
punch and hammer. Discard the spring pin (Fig. 37).
NOTE: Mark and arrange all components so they can
be reassembled in their original position.
7. Remove the differential pinion shaft, pinion gears
and pinion washers. Remove the differentialside gears
and side gear shims. Remove the ring gear only if it will
be replaced (Fig. 38).
NOTE: Replacement ring gears are only available in
matched ring and pinion sets.

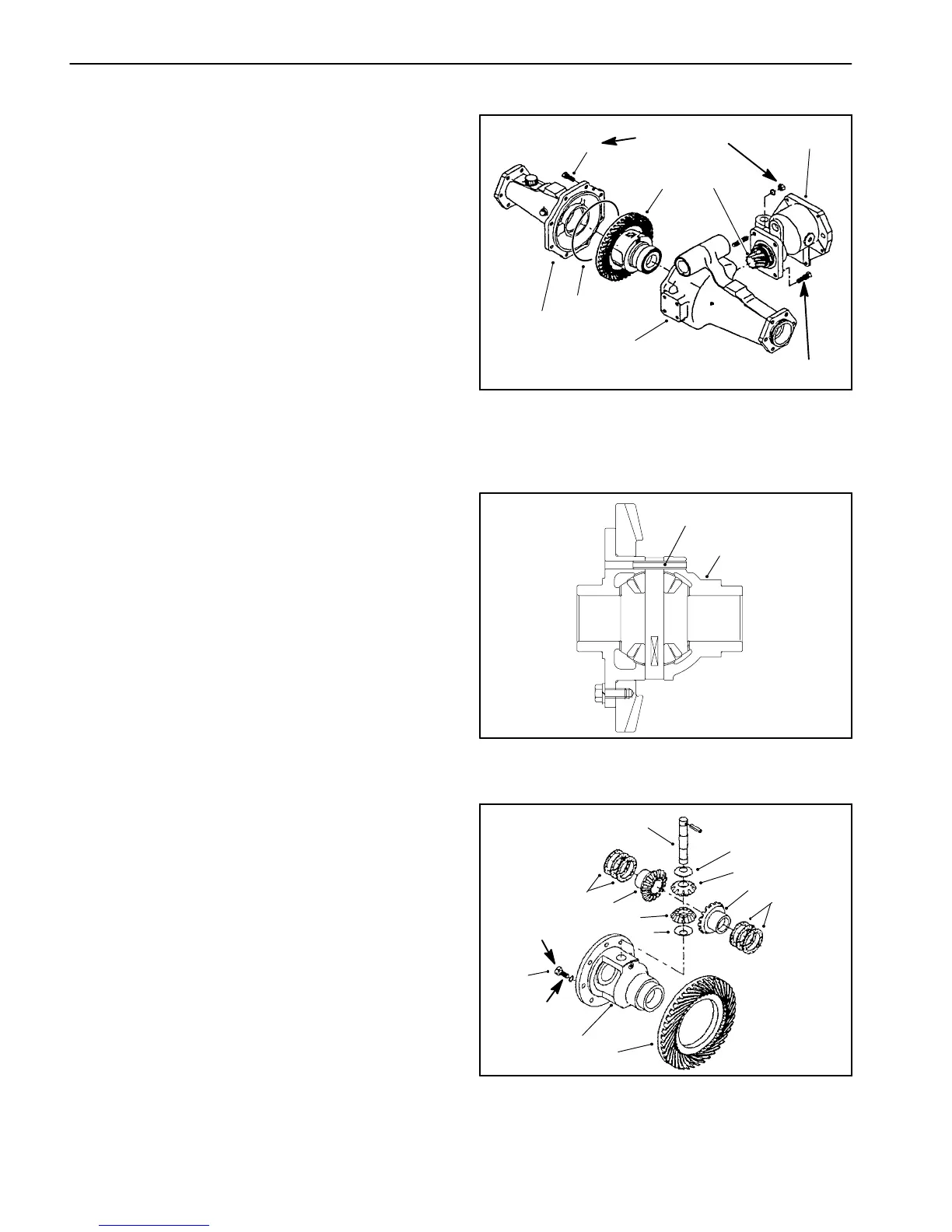

1. Gear Case
2. Pinion Gear
3. Axle support (left)
4. Axle support (right)
5. Case screw (8 used)
6. Differential gear
7. O-ring
Figure 36
1
3
4
5
6
7
2
35 to 41 ft--lb
(47to56N--m)
35 to 41 ft--lb
(47to56N--m)
1. Differential case 2. Spring pin
Figure 37
1
2
1. Differential pinion shaft
2. Pinion gear
3. Pinion washer
4. Side gear
5. Side gear shims
6. Ring gear
7. Differential case
8. Bolt/washer (8 used)
1
Figure 38
2
3
4
5
6
7
3
2
4
5
22 to 25 ft--lb
(30to34N--m)
Threadlocking
Compound
8
