Toro 30413 Service Manual

Groundsmaster 4100--D/4110--DPage 7 -- 8Chassis
Operator Seat

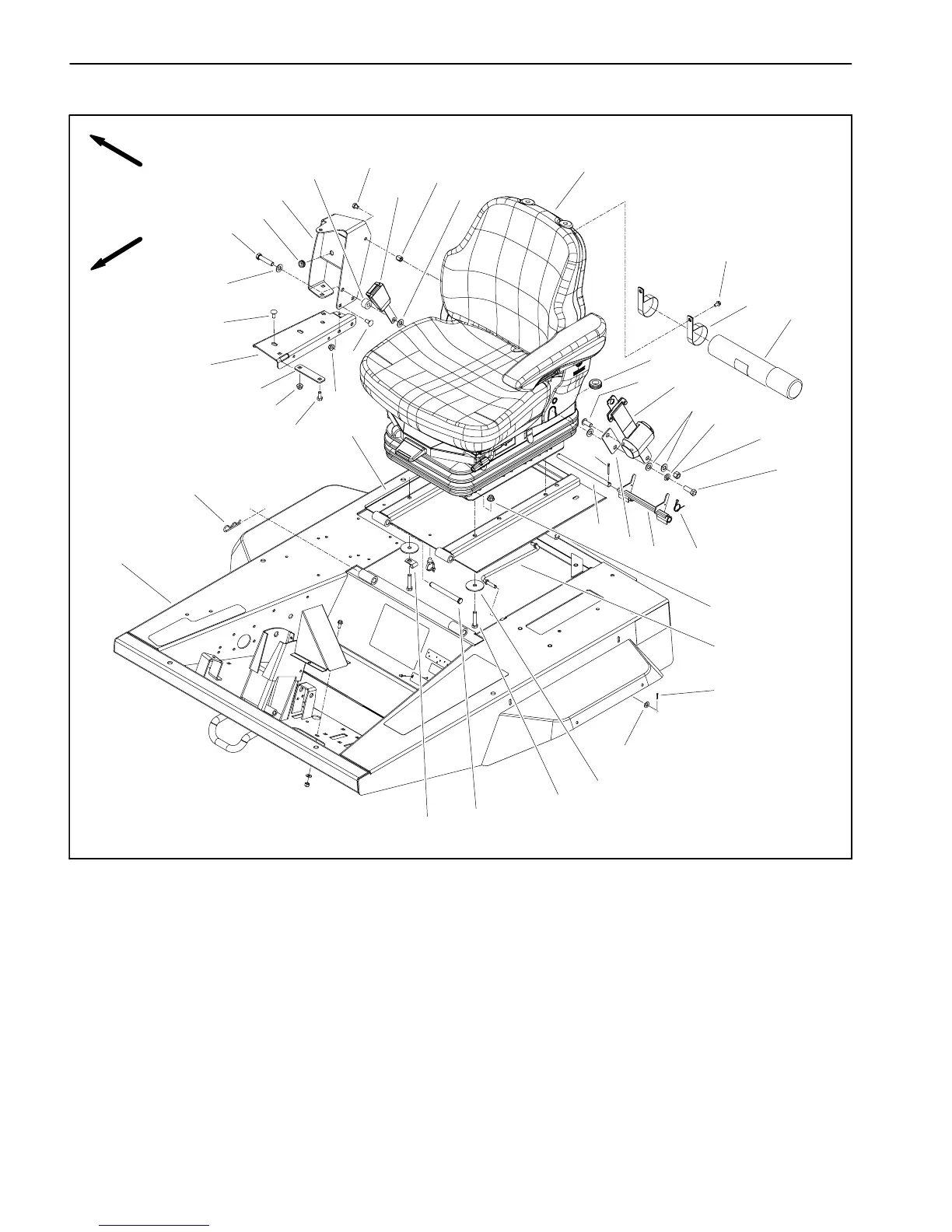

Figure 7
FRONT
RIGHT
1. Platform
2. Clevis pin (2 used)
3. Hair pin (2 used)
4. Seat plate
5. Grommet
6. Cotter pin (2 used)
7. Latch shaft
8. Cap screws (4 used)
9. Latch
10. Torsion spring
11. Prop rod
12. Flange nut (4 used)
13. Cotter pin (2 used)
14. Flat washer (2 used)
15. Flat washer (4 used)
16. R--clamp (2 used)
17. Seat belt mount
18. Button head screw
19. Seat belt
20. Flat washer (5 used)
21. Lock washer
22. Lock nut
23. Cap screw
24. Manual tube
25. R--clamp (2 used)
26. Screw (2 used)
27. Seat and suspension assembly
28. Cap screw
29. Flange nut (5 used)
30. Support bracket
31. Support channel
32. Carriage screw (5 used)
33. Cap screw
34. Grommet
35. Arm support
36. Spacer
37. Cap screw
38. Coupler nut
39. Seat belt latch
2
3
6
8
9
10
11
13
1
5
7
12
14
15
16
17
18 19
20
4
21
22
23
24
25
26
27
28
29
30
29
31
32
33
34
35
36
37
38
39
32
20
20
