Toro 30413 Service Manual

Groundsmaster 4100--D/4110--DCutting Deck
Page 8 -- 20

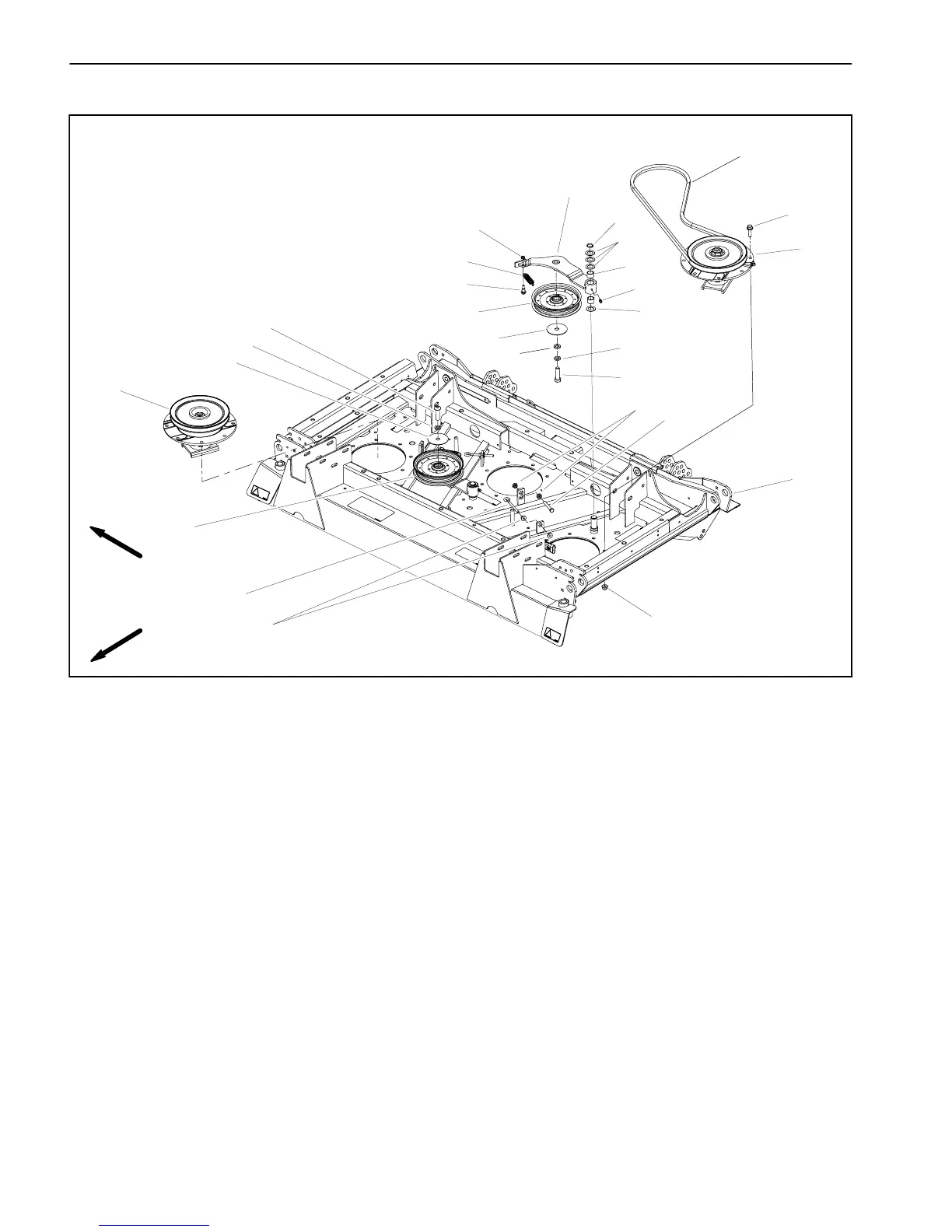

Idler Assembly
1. Center deck
2. Flange nut
3. Flange nut
4. Adjusting screw
5. Idler pulley
6. High driven pulley
7. Flat washer
8. Lock washer
9. Socket head screw
10. Idler stop bolt
11. Flange nut
12. Cap screw
13. Spacer
14. Shoulder bolt
15. Idler spring
16. Lock nut
17. Idler arm
18. Retaining ring
19. Thrust washer (4 used per idler)
20. Bushing (2 used per idler)
21. Grease fitting
22. Low driven pulley
23. Flange head screw
24. Drive belt
Figure 20
FRONT
RIGHT
1
2
4
3
5
6
7
8
9
10
11
12
15
16
13
14
17
18
5
7
8
19
20
23
21
24
22
19
NOTE: ThecenterdeckisshowninFigure20.Theidler
assemblies used on the wing decks use the same idler
components.
