Toro 30413 Service Manual

Groundsmaster 4100--D/4110--DPage 6 -- 22Axles, Planetaries and Brakes

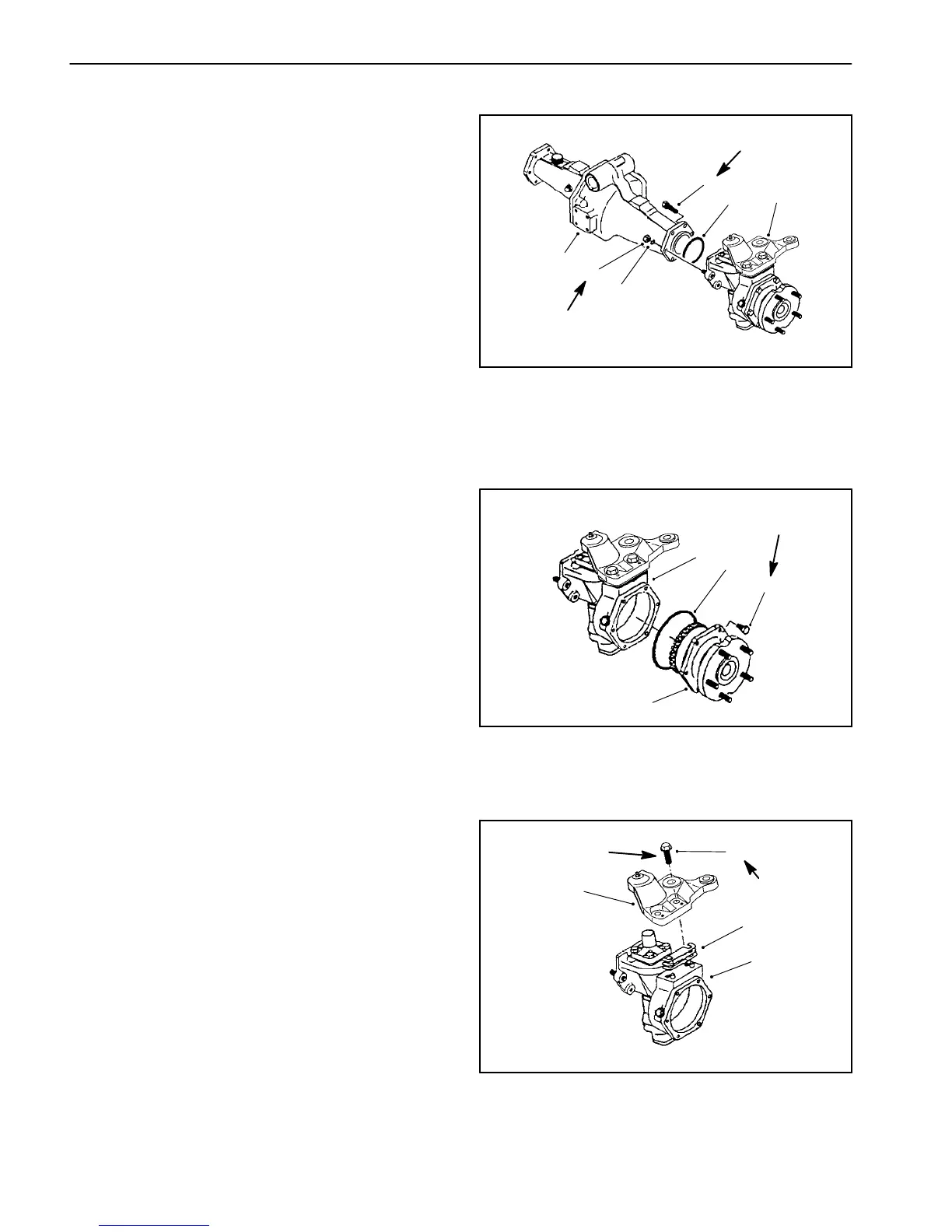

Bevel Gear Case and Axle Case
The following procedures assume therear axle assem-
blyhasbeenremovedfromthemachine(seeRearAxle
Assembly Removal in this section).
Bevel Gear Case and Axle Case Removal
1. Remove the mounting screws, nuts and lock wash-
ers. Remove the bevel gear case/axle c ase assembly
and O-ring from the axle support (Fig. 17).
2. Mark both right and left bevel gear case/axle case
assemblies.
IMPORTANT: Do not interchange right and left bev-
el gear case/axle case assemblies.
1
2
3
4
5
6
1. Cap screw (4 used)
2. Lock nut (2 used)
3. Lock washer (2 used)
4. Axle support
5. Bevel gear case/axle
case assembly
6. O-ring
Figure 17
35 to 41 ft--lb
(47to56N--m)
35 to 41 ft--lb
(47to56N--m)
3. Remove the axle cover mounting screws. Remove
theaxlecoverfromtheaxlecaseasanassembly
(Fig. 18).
1. Axle case
2. Axle cover assembly
3. Mounting screw (6 used)
4. O-ring
Figure 18
1
2
3
4
17 to 20 ft--lb
(23to27N--m)
4. Removetheaxlecasesupportmountingscrews,the
axle case support and the support shims (Fig. 19).
1. Axle case
2. Axle case support
3. Mounting screw (2 used)
4. Support shim
Figure 19
1
2
3
4
57 to 67 ft--lb
(77to91N--m)
Threadlocking
Compound
