Groundsmaster 4100--D/4110--DHydraulic System Page 4 -- 102

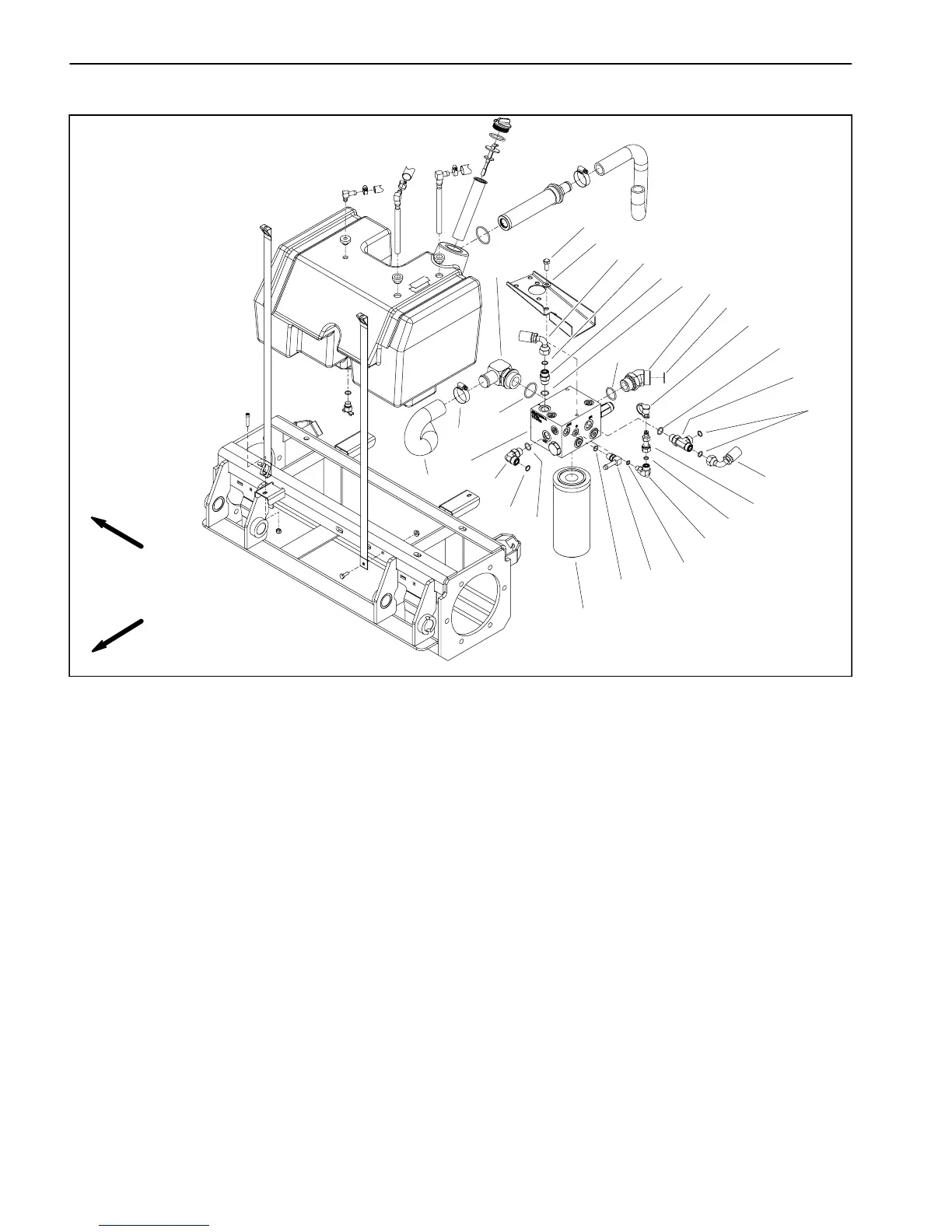

Filter Manifold
1. Filter manifold
2. 45
o
hydraulic fitting
3. Test nipple
4. Dust cap
5. O--ring
6. O--ring
7. O--ring
8. Cap screw (3 used)
9. Flat washer (3 used)
10. Hydraulic fitting
11. O--ring
12. O--ring
13. 90
o
hydraulic fitting
14. Hydraulic hose
15. O--ring
16. O--ring
17. 90
o
hydraulic fitting
18. Hydraulic hose
19. Hydraulic tee fitting
20. 90
o
hydraulic fitting
21. O--ring
22. Hose clamp
23. Filter hose
24. Barb fitting
25. Oil filter
Figure 70
FRONT
RIGHT
13
10
8
9
19
1
17
2
3
20
23
18
14
4
21
16
12
15
7
11
5
6
22
24
25
6
11
11
6
NOTE: The ports on the manifold are marked for easy
identification of components. Example: P2 is the gear
pumpconnectionportandTistheconnectionforthehy-
draulicreservoirreturnport(seeHydraulicSchematicin
Chapter 10 -- Foldout Drawings to identify the function
ofthe hydraulic lines and cartridge valvesateach port).
