Groundsmaster 4100--D/4110--DHydraulic System Page 4 -- 92

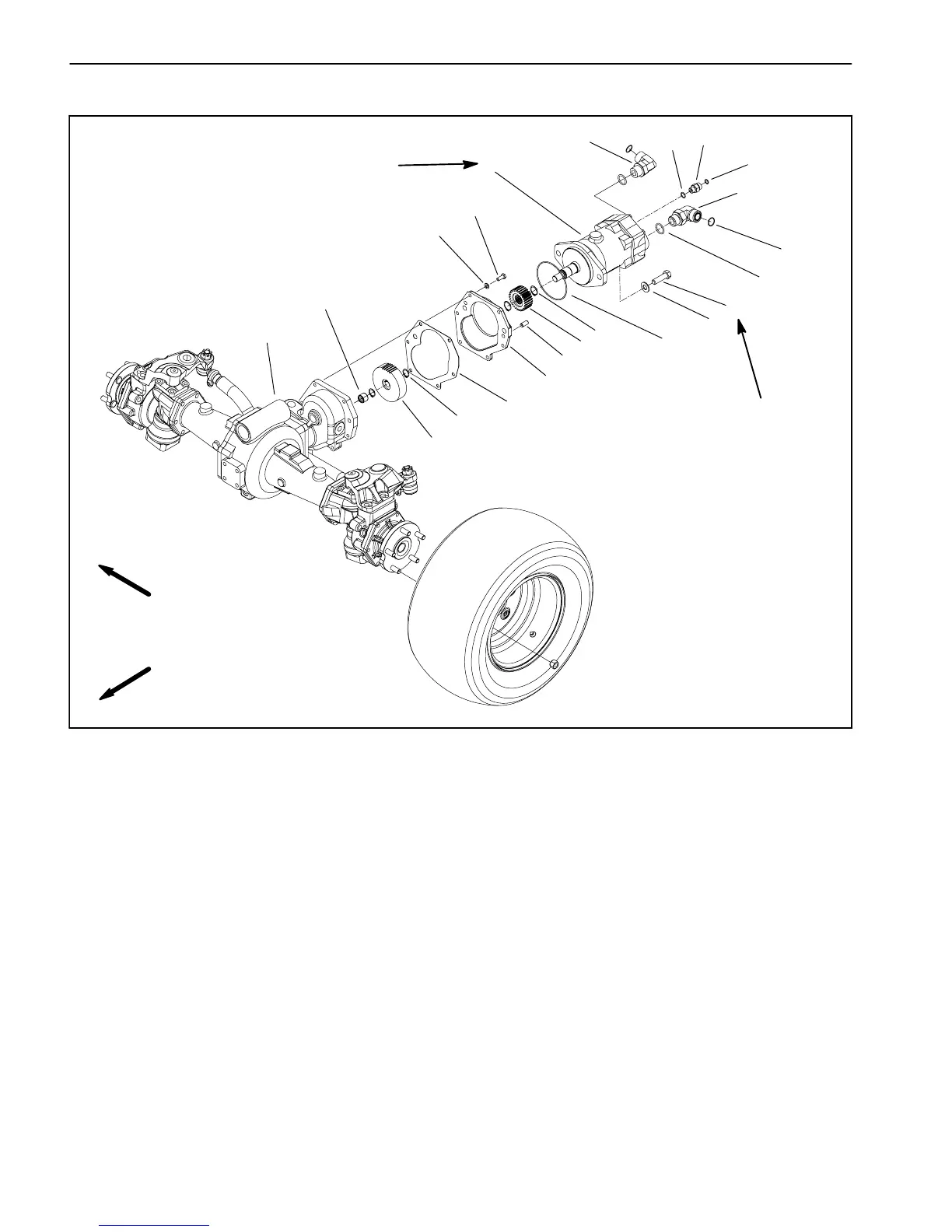

Rear Axle Motor
1. Axle motor
2. 90
o
hydraulic fitting (2 used)
3. Hydraulic fitting
4. Cap screw (2 used)
5. Flat washer (2 used)
6. O--ring
7. External snap ring (2 used)
8. Gear (39T)
9. External snap ring (2 used)
10. Pinion gear (33T)
11. Needle bearing
12. O--ring
13. O--ring
14. O--ring
15. O--ring
16. Drive axle assembly
17. Cap screw (6 used)
18. Lock washer (6 used)
19. Dowel pin (2 used)
20. Cover plate
21. Gasket
Figure 65
FRONT
RIGHT
Arrow on side of
16
11
10
5
4
3
9
7
8
6
1
2
15
14
13
12
motor case points up
59 to 73 ft--lb
(80to99N--m)
18
21
19
17
20
2
