Groundsmaster 4100--D/4110--DHydraulic System Page 4 -- 26
Special Tools
Order these special tools from your Toro Distributor.

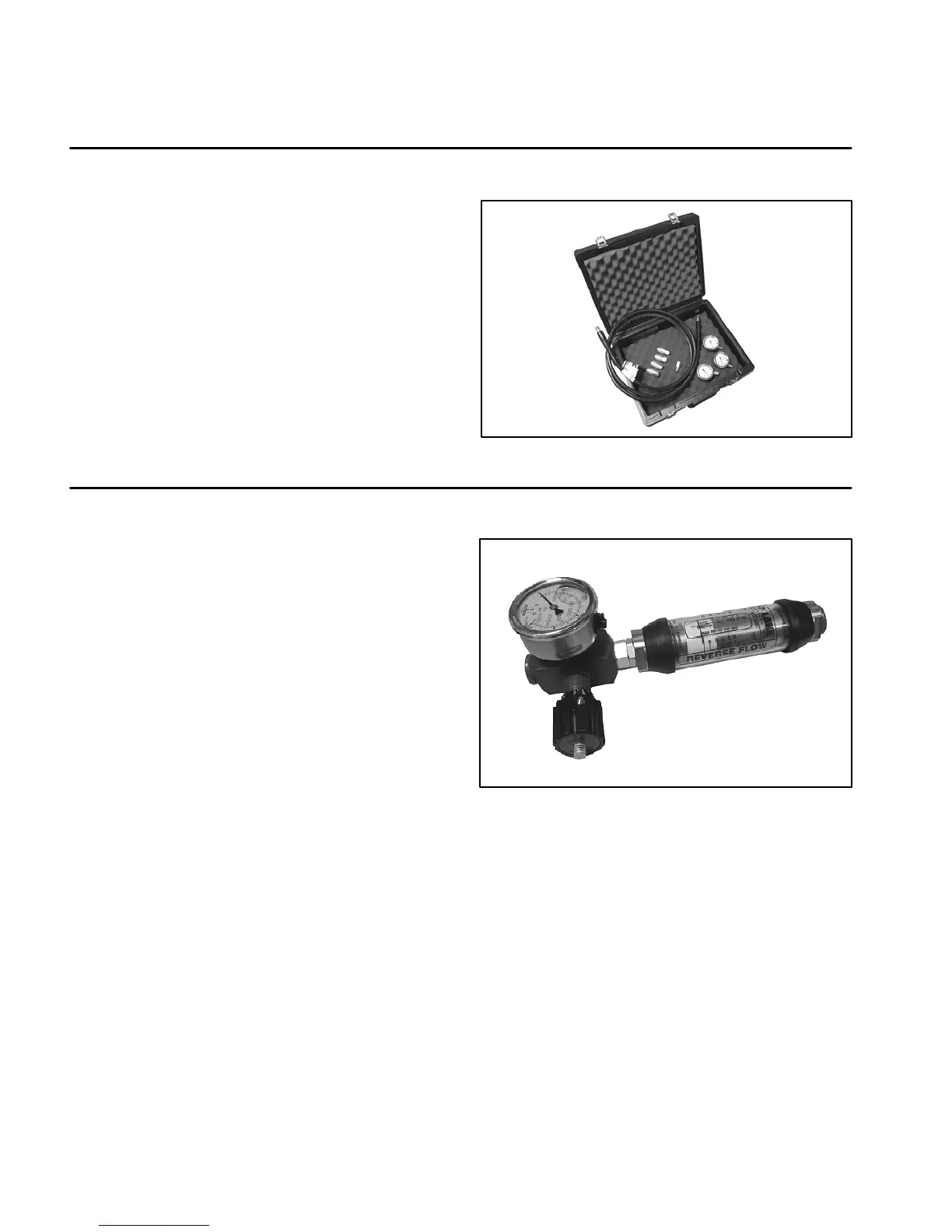

Hydraulic Pressure Test Kit
Use to take v arious pressure readings for diagnostic
tests. Quick disconnect fittings provided attach directly
to mating fittings on machine test ports without tools. A
high pressure hose is provided for r emote readings.
Contains one each: 1000 PSI (70 bar), 5000 PSI (350
bar) and 10000 PSI (700 bar) gauges. Use gauges as
recommended in the Testing section of this chapter.
Toro Part Number: TOR47009
Figure 17
15 GPM Hydraulic Tester Kit (Pressure and Flow)
Use to test hydraulic circuits and components for flow
andpressurecapacitiesasrecommendedintheTesting
sectionofthischapter.Thistesterincludesthefollowing:
1. INLET HOSE: Hose connected from the system cir-
cuit to the inlet side of the hydraulic tester.
2. LOAD VALVE: A simulated working load is created
in the circuit by turning the valve to restrict flow.
3. PRESSURE GAUGE: Glycerine filled 0 to 5000 PSI
gauge to provide operating circuit pressure.
4. FLOW METER: This meter measures actual oil flow
in the operating circuit with a gauge rated from 1 to 15
GPM(5to55LPM).
5. OUTLET HOSE: A hose from the outlet side of the
hydraulictesterconnectstothehydraulicsystemcircuit.
6. FITTINGS:Anassortmentofhydraulicfittingsarein-
cluded with this kit.
Toro Part Number: TOR214678
Figure 18
