Groundsmaster 4100--D/4110--DPage 3 -- 12Kubota Diesel Engine
Engine

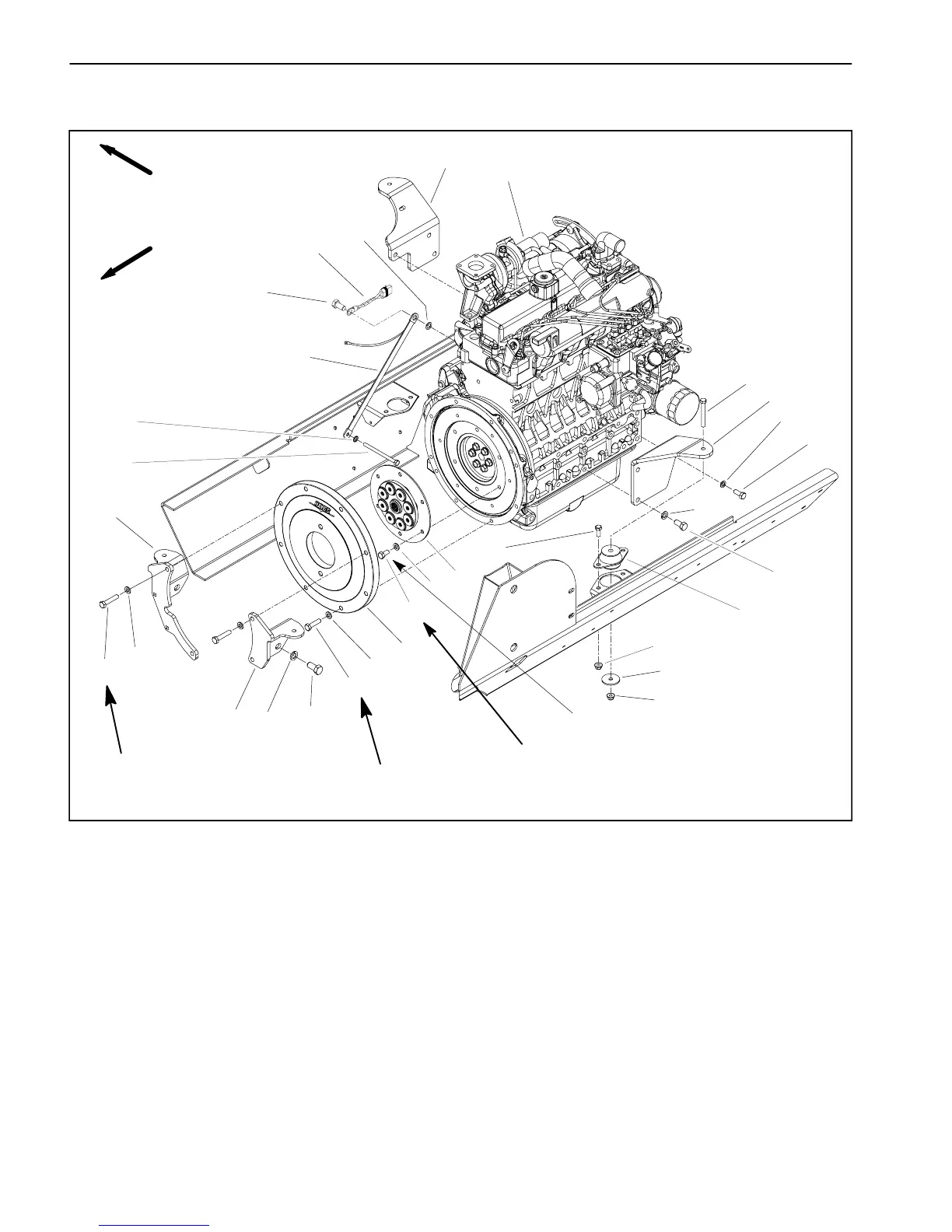

Figure 10
1. Engine
2. Cap screw (4 used)
3. LH engine mount
4. Lock washer
5. Cap screw
6. Lock washer (5 used)
7. Cap screw (5 used)
8. Engine support (4 used)
9. Flange nut (12 used)
10. Rebound washer (4 used)
11. Cap screw (8 used)
12. Spring coupler
13. Washer (14 used)
14. Cap screw (6 used)
15. Flywheel plate
16. Cap screw (4 used)
17. Cap screw (2 used)
18. Lock washer (2 used)
19. LH engine mount
20. Cap screw (4 used)
21. RH engine mount
22. Cap screw (PTO manifold)
23. Lock washer
24. Ground cable
25. Cap screw
26. Lock washer
27. RH engine mount
28. Ground harness
FRONT
RIGHT
1
2
3
6
5
4
7
26
8
9
10
11
14
15
12
13
16
17
18
20
21
19
24
23
22
25
27
9
13
13
(38to43N--m)
28 to 32 ft--lb
(40to44N--m)
29 to 33 ft--lb
(38to43N--m)
28 to 32 ft--lb
Loctite #242
28
