Toro 30413 Service Manual

Groundsmaster 4100--D/4110--DPage 7 -- 14Chassis
Hood
1. Rear screen
2. Top screen
3. Cap screw (22 used)
4. Screen assembly
5. Bulb seal
6. Flange nut (2 used)
7. Bulb seal
8. Screen corner seal (2 used)
9. Hair pin (2 used)
10. Screw (8 used)
11. Hood pivot (2 used)
12. Pivot bracket (2 used)
13. Hood
14. Handle (2 used)
15. Flange head screw (4 used)
16. Oil filter deflector
17. Flange nut (4 used)
18. Latch cover
19. Latch
20. Hood latch bracket
21. Washer head screw (2 used)
22. LH latch bracket
23. Latch bracket (2 used)
24. Screw (4 used)
25. Flange head screw (4 used)
26. Screw (4 used)
27. Screw (2 used)
28. Hood support
29. R--clamp (2 used)
30. Hair pin (2 used)
31. Clevis pin (2 used)
32. Hood rod (2 used)
33. RH screen mount
34. LH screen mount
35. Carriage bolt (2 used)
36. Flange nut (2 used)
37. Plastic plug (24 used)
38. Pop rivet (22 used)
39. Flat washer (22 used)
40. Lock nut (20 used)
41. Flat washer (20 used)
42. Foam seal (2 used)
43. RH latch bracket
44. Latch handle (2 used)
45. Latch keeper (2 used)
46. Fuel tank support
47. Flange nut (4 used)
48. Spacer (4 used)
49. Hood shield

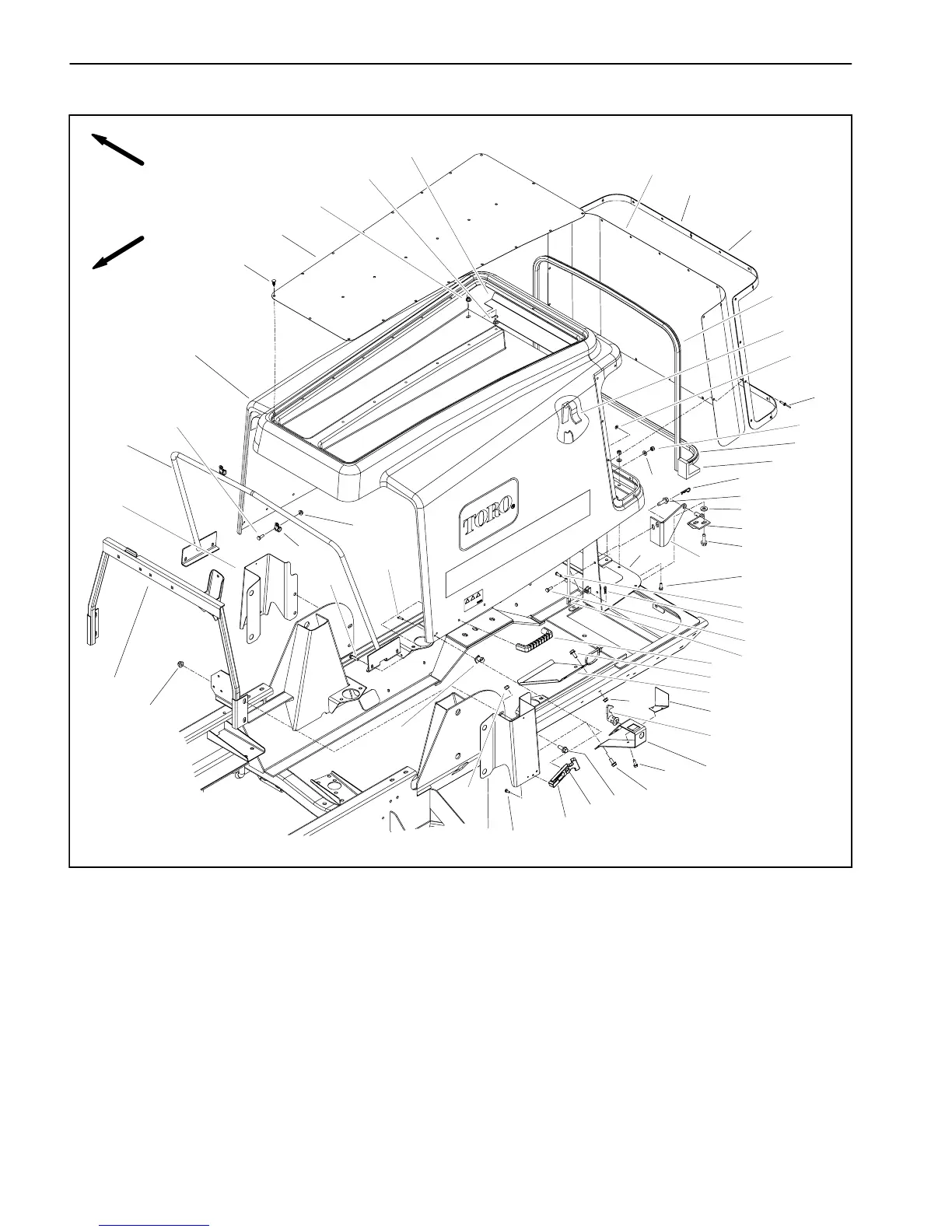

Figure 15
FRONT
RIGHT
2
3
6
8
9
10
11
13
1
5
7
12
14
15
16
17
18
19
20
43
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
42
41
48
10
4
3
15
17
3
49
45
44
47
46
