Groundsmaster 4100--D/4110--D Page 7 -- 15 Chassis
Removal
1. Park machine on a level surface,lowercuttingdeck,
stop engine, engage parking brake and remove key
from the ignition switch.
2. Remove hood using Figure 15 as a guide.
Installation
1. Install hood using Figure 15 as a guide.
2. Align hood to machine to allow correct operation of
hood latches and dust seals:
A. Place shim that is 3/8” to 7/16” (9.5 to 11 .1 mm)
thickontopofframe( bothRHandLHsides)nearthe
sides of oil cooler (Figs. 16 and 17).
B. Close hood so that it rests on shims and fasten
the hood latches.
C. Loosen hood pivots at frame to adjust vertical
placement of pivots. Re--tighten hood pivot fasten-
ers.
D. Loosen pivot brackets to allow hood latches to
pull hood against radiator support. Re--tighten pivot
bracket fasteners.
3. After hood is assembled to machine, check for the
following:
A. Check that bulbsealsareequally compressed at
all contact points with hood.
B. Hood should open and close without contacting
oil cooler hardware.

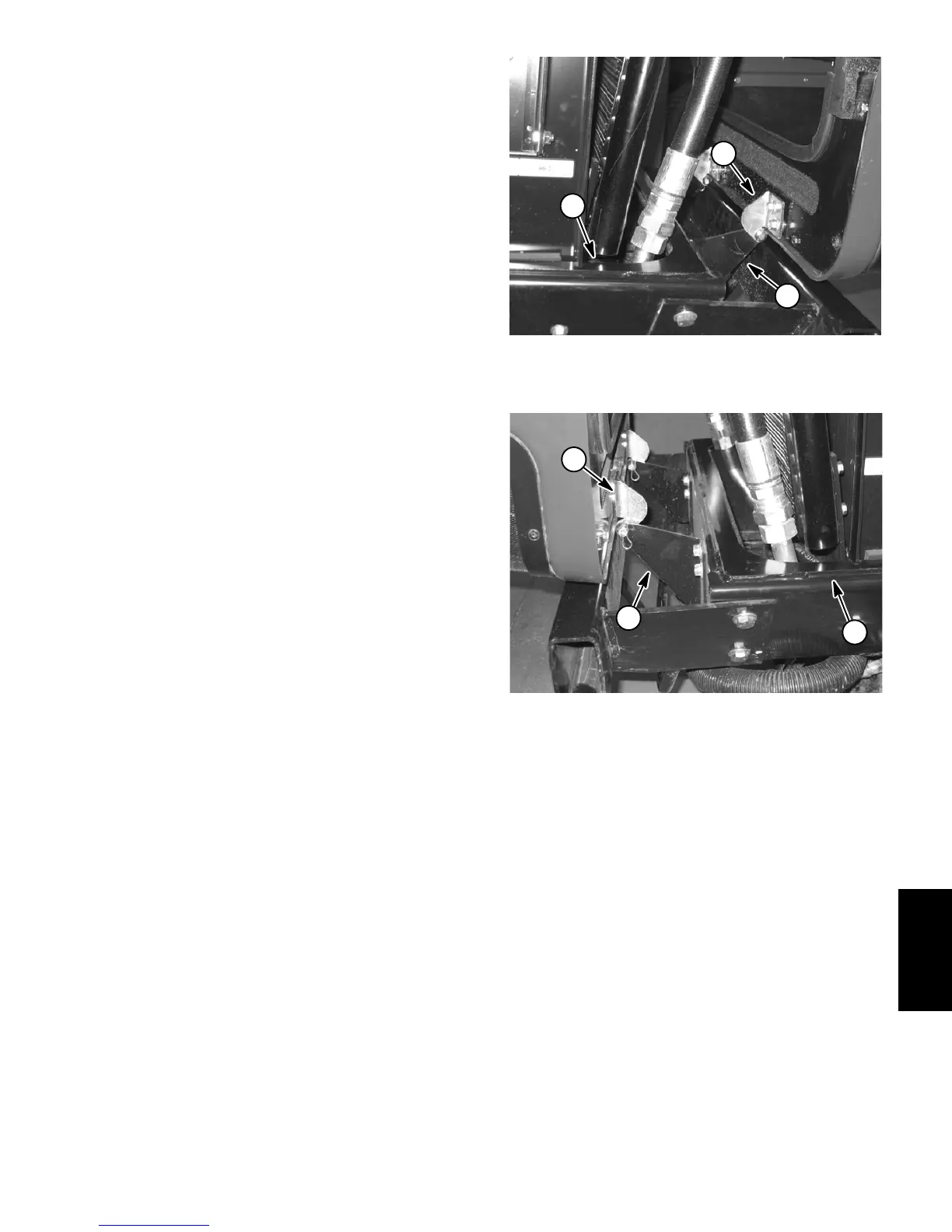

1. LH shim location
2. LH hood pivot
3. LH pivot bracket
Figure 16
1
2
3
1. RH shim location
2. RH hood pivot
3. RH pivot bracket
Figure 17
3
2
1
