Operator Cab Fuses (Groundsmaster 4110--D)

The cab fuse blocks are located in the cab headliner

(Fig. 19).

Identification and Function (Figs. 19 and 21)

Fuse F1--1 (20 Amp) protects the air conditioner circuit.

Fuse F1--2 (20 Amp) protects the cab lighting circuit.

FuseF1--3(20Amp)protectsthecabfananddomelight

circuits.

Fuse F2--1 (20 Amp) protects the heater circuit.

Fuse F2--3 (20 Amp) protects the windshield wiper/

washer circuit.

Fuses F1--4, F2--2 and F2 --4 are available for optional

cab equipment (work lights and rear window wiper).

Testing

Turn ignition switch to the ON position (do not start en-

gine). With the fuse installed in the fuse block, use a

multimetertoverifythat12VDCexistsatboth oftheter-

minal test points on the fuse. If 12 VDC exists at one of

thefusetestpointsbutnotattheother,thefuseisfaulty.

If necessary, make sure that ignition switch is OFF and

key is removed from switch. R emove fuse from fuse

blockandcheckthatfusehascontinuityacrossthefuse

terminals.

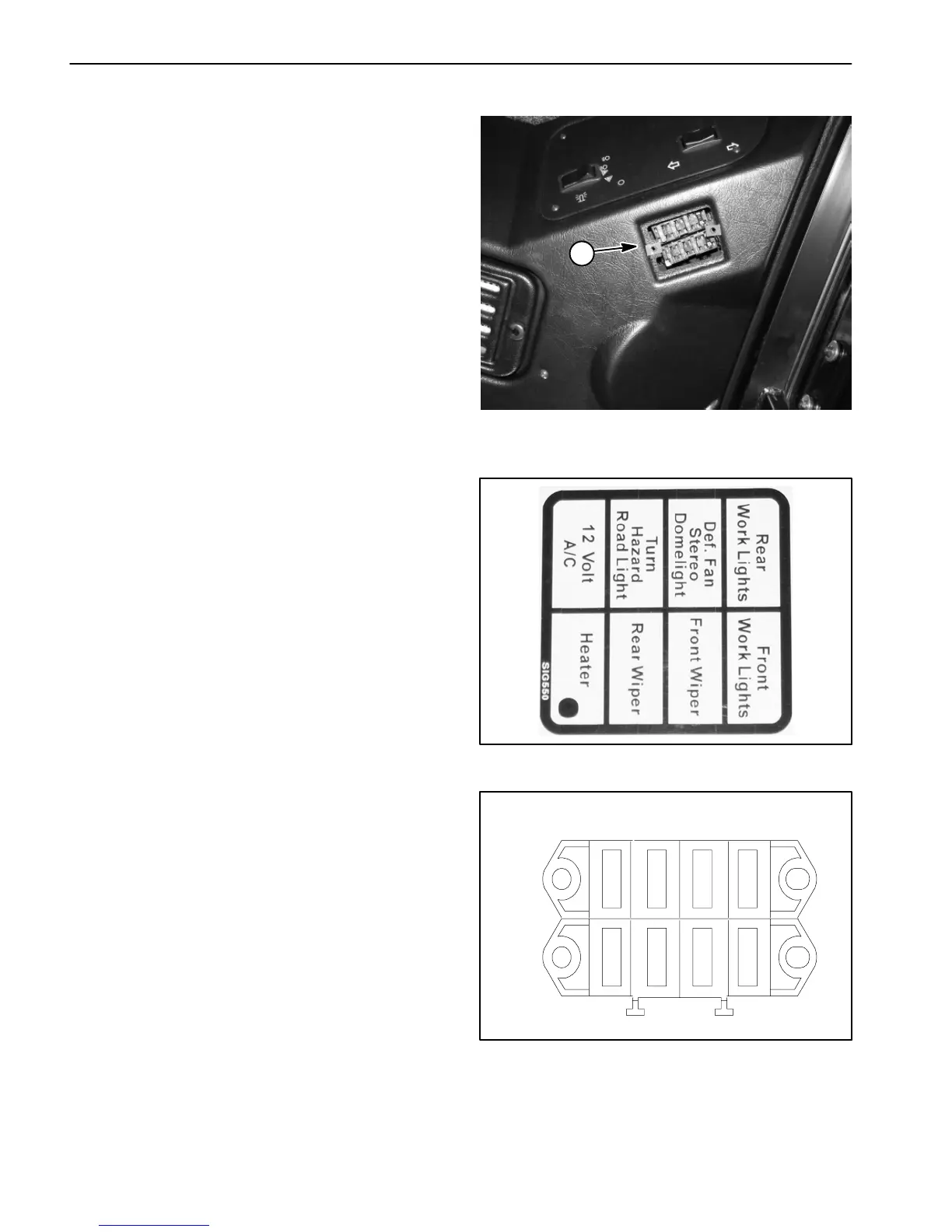

Figure 19

1. Cab fuse blocks

Figure 20

Figure 21

1234

20A
